Tempered Glass-Door Digital Commercial Steaming Cabinet (HSYL-BL-DK (08/10/12/24)): B2B Engineering Overview
The Tempered Glass-Door Digital Commercial Steaming Cabinet (HSYL-BL-DK Series) is an industrial-grade intelligent steamer solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Real-time circulating steam temperature display on large LED panel, full polyurethane foam insulation, and low-water dry-burn alarm. Fabricated with AISI 304 1.2mm pressurized inner steaming cavity, 50mm high-density polyurethane foam insulation & SUS304 rice/perforated trays, it delivers verified operational output (720×700×1340~1700mm (9-12kW) | 2-Door 24-Tray: 1400×700×1700mm (24kW) | 380V) under 380V–415V / 3Ph+N+PE / 50–60Hz (220V supported on 4–6 tray compact units) supply and complies with IEC 60335-2-42 / EN 203-1 (Commercial Steamers), NSF/ANSI 4, CE, SASO.
3D Saturated Steam Generation & Multi-Tray Chamber Design
- High-Efficiency SUS316L Steam Generator / Multi-Flue Finned Heat Exchanger (720×700×1340~1700mm (9-12kW) | 2-Door 24-Tray: 1400×700×1700mm (24kW) | 380V): Generates 100°C–105°C pressurized saturated steam within 3.5 minutes, cooking 50–250 kg of rice, dim sum, fish, or banquet meats in 35–40 minutes.
- 50mm Monoblock Polyurethane Insulation & Automotive EPDM Door Gasket: Locks thermal energy inside the cavity with zero steam leakage around the perimeter, keeping outer door temperatures below 48°C.
- Automatic Solenoid Water Fill, Floatless Level Probe & Dry-Burn Cutoff: Continuously monitors water reservoir depth and automatically cuts heating power with an audible alarm if water supply is interrupted.
- Independent Compartment / IoT / Precision Low-Temp Steaming Control: Supports precise timing and temperature curves (including 65°C–85°C delicate sea-cucumber rehydration on HS-01 or multi-door independent steaming on DC04). Factory baseline configuration for HSYL-BL-DK (08/10/12/24): Standard Digital Control Steaming Cabinet (6/8/10/12 Trays).
Rapid 3-Minute Steam Generation & 39.6 kWh-Eq/Day Batch TCO
In high-volume canteen and catering operations, steaming cabinet insulation and heat-exchanger geometry dictate utility bills. The HSYL-BL-DK (08/10/12/24) achieves 94%+ thermal transfer efficiency, reducing batch steaming energy consumption to approximately 39.6 kWh-equivalent per 6-hour production day—saving 32% compared to uninsulated legacy steamers. Weekly bottom-valve blowdown and descaling keep heating elements operating at peak efficiency for over 8 years. Configured specifically as a Tempered Glass-Door Digital Commercial Steaming Cabinet (720×700×1340~1700mm (9-12kW) | 2-Door 24-Tray: 1400×700×1700mm (24kW) | 380V), this unit integrates directly into standardized commercial intelligent steamer lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HSYL-BL-DK (08/10/12/24) |
| Equipment Designation | Tempered Glass-Door Digital Commercial Steaming Cabinet (HSYL-BL-DK Series) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | 720×700×1340~1700mm (9-12kW) | 2-Door 24-Tray: 1400×700×1700mm (24kW) | 380V |
| Power Supply / Energy Source | 380V–415V / 3Ph+N+PE / 50–60Hz (220V supported on 4–6 tray compact units) |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | AISI 304 1.2mm pressurized inner steaming cavity, 50mm high-density polyurethane foam insulation & SUS304 rice/perforated trays |
| Compliance & Design Standards | IEC 60335-2-42 / EN 203-1 (Commercial Steamers), NSF/ANSI 4, CE, SASO |
Sub-SKU Configuration Matrix (HSYL-BL-DK Series):
| Model | Dimensions (mm) | Rated Power | Voltage | Tray Capacity | Water Fill / Insulation | Net Weight |
|---|
| HSYL-40 (4 TraysDigital Model) | 380*560*785 | 2.0 kW | 220V | 2kg/Tray (300*400*50mm) | Auto Float Valve Water Fill / 30mm Foam Insulation | 23 kg |
| HSYL-60 (6 TraysDigital Model) | 380*560*995 | 3.0 kW | 220V | 2kg/Tray (300*400*50mm) | Auto Float Valve Water Fill / 30mm Foam Insulation | 27 kg |
Sub-SKU Configuration Matrix (HSYL-QZD-06 / 08 / 10 / 12):
| Model | Tray Count | Dimensions (mm) | Heating Power | Voltage | Water Supply System | Net Weight |
|---|
| HSYL-60 | 6 TraysAuto-Control Model | 720*640*1000 | 9.0 kW | 220V / 380V | Auto Solenoid Water Fill + Dry-Boil Probe | 34 kg |
| HSYL-80 | 8 TraysAuto-Control Model | 720*640*1200 | 9.0 kW | 220V / 380V | Auto Solenoid Water Fill + Dry-Boil Probe | 39 kg |
| HSYL-100 | 10 TraysAuto-Control Model | 720*640*1350 | 12.0 kW | 380V 3-Phase | Auto Solenoid Water Fill + Dry-Boil Probe | 44 kg |
| HSYL-120 | 12 TraysAuto-Control Model | 720*640*1550 | 12.0 kW | 380V 3-Phase | Auto Solenoid Water Fill + Dry-Boil Probe | 46 kg |
| HSYL-240 | 24 TraysAuto-Control 2-Door | 1430*640*1550 | 12.0 kW * 2 | 380V 3-Phase | Dual-Circuit Automatic Water Replenishment | 85 kg |
Sub-SKU Configuration Matrix (HSYL-DN-08 / 10 / 12):
| Model | Tray Count | Dimensions (mm) | Heating Power | Timer & Temp Range | Voltage Spec | Net Weight |
|---|
| HSYL-60 | 6 TraysDigital Timer | 720*640*1000 | 9.0 kW | 0–99 min Timer / 30–110°C Temp Control | 220V / 380V | 34 kg |
| HSYL-80 | 8 TraysDigital Timer | 720*640*1200 | 9.0 kW | 0–99 min Timer / 30–110°C Temp Control | 220V / 380V | 39 kg |
| HSYL-100 | 10 TraysDigital Timer | 720*640*1350 | 12.0 kW | 0–99 min Timer / 30–110°C Temp Control | 380V 3-Phase | 43 kg |
| HSYL-120 | 12 TraysDigital Timer | 720*640*1550 | 12.0 kW | 0–99 min Timer / 30–110°C Temp Control | 380V 3-Phase | 46 kg |
| HSYL-240 | 24 TraysDigital Timer | 1430*640*1550 | 12.0 kW * 2 | Dual Digital Boards with Independent Temp & Timer | 380V 3-Phase | 86 kg |

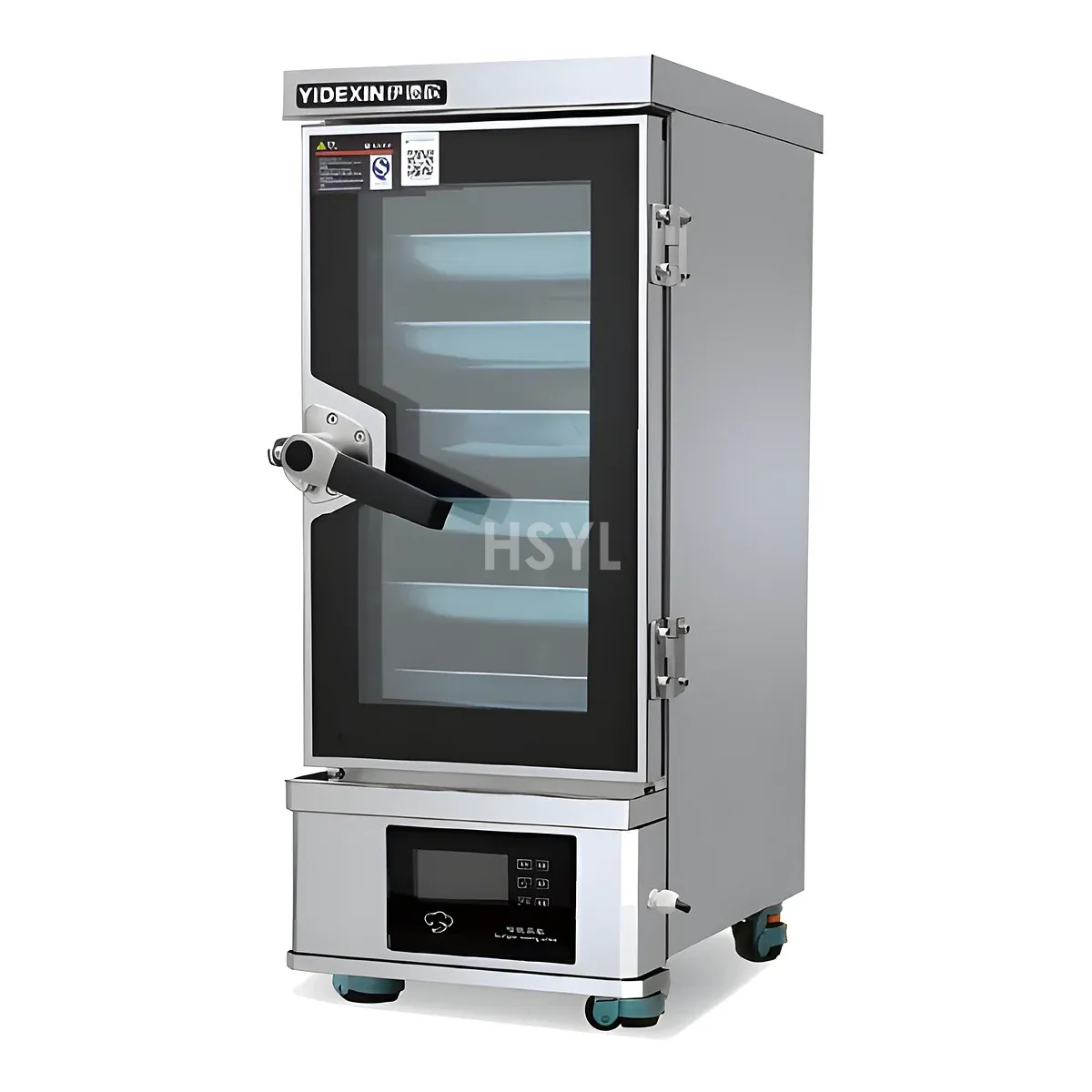

Tempered Glass-Door Digital Commercial Steaming Cabinet
