Food Holding & Transport Equipment Manufacturer
Hot holding and insulated transport equipment bridges the gap between cooking and service — and the specification depends entirely on distance, time and container format. For a banquet kitchen dispatching 800 covers to three halls, we match cabinet capacity, GN compatibility and trolley route clearance. For a hospital cook‑chill line, holding temperature, dwell time and rethermalisation readiness become the primary selection factors. Every holding cabinet and transport trolley is specified against your menu format, service window and movement path.
Specify the Route Before Selecting the Model
Food holding and transport specification follows five decision points:
- Hold time and temperature requirement — hot holding at ≥65 °C core for up to 2 hours
- Container format — GN 1/1, 1/2 or 2/3 pan compatibility and stacking configuration
- Transport distance and surface — corridor width, thresholds, lift dimensions
- Ambient conditions — unheated corridors, outdoor transfer sections
- Meal assembly workflow — plated, bulk or tray‑line dispatch
Food Holding, Warming & Transport Logistics Matrix
Thermal stability ratings, holding durations, and mobile mechanical specifications for Cook-Serve and Cook-Chill workflows.
| Logistics / Holding Scenario | Operating Temperature Range | Holding Architecture & Capacity | Insulation Spec & Thermal Loss | Mobile Chassis & Hardware | HACCP Critical Boundary |
|---|---|---|---|---|---|
| Central Kitchen Satellite Distribution | Hot: >65°C / Cold: +2°C to +6°C | Insulated Food Pan Carriers / Carts (GN 1/1) | 50mm Seamless Polyurethane Foam (<1.5°C loss/hr) | 150mm Heavy-Duty Casters, Perimeter Marine Bumpers | Maintains core temperature >65°C for 4 hours without electrical connection |
| Hotel Banquet Staging & Plating | +70°C to +82°C | Electric Heated Banquet Carts (16-32 GN 2/1 Trays) | 1.8 - 2.4 kW (220V), Ducted Blower Circulation | Recessed Heavy-Duty Latches, Silicone Door Gasket | Forced air circulation prevents hot-spots; preserves plated banquet texture for 90+ min |
| Cook-Serve Humidity Controlled Holding | +65°C to +78°C (Core) / 30%-90% RH | Dual-Control Heated Holding Cabinet (GN 1/1 & Sheet) | 2.0 - 2.8 kW (220V), Water Reservoir Evaporation | Universal Removable Pan Slides, Glass/Solid Door | Prevents food drying or sogginess; programmable timer per shelf level |
| Cook-Chill Roll-In Cold Transit | -2°C to +2°C (Super-Chilled) | Roll-In / Roll-Through Refrigerated Carts | 0.8 - 1.2 kW Hermetic Condensing Unit, R290 | Ramp-Free Floor Entry, Heavy-Duty Bottom Silicone Sweep | Continuous cold chain compliance from blast chiller to decentralized regeneration stations |
Food Holding & Transport Equipment
Final model and specification are confirmed after application review.
Countertop Multi-Pan Electric Bain-Marie Food Warmer with Drain Tap
View product
Double-Wall Electric Water Boiler Urn 10L–40L
View product
Compact Low-Height Mobile Banquet Holding Cart
View product
4D Panoramic Insulated Glass Banquet Display & Holding Cart
View product
Dual-Zone Glass-Door Mobile Banquet Holding Cabinet
View product
High-Density 16 & 32-Tier Cafeteria Fast-Food Tray Holding Cart
View product
180° Roll-Top Rectangular & Round Commercial Buffet Chafing Dish
View product
Hydraulic Glass-Lid Induction & Fuel Chafing Dish Series
View product
Refrigerated Banquet Holding Cart (11/22-Tier)
View product
Battery-Powered Motorized Heated Meal Delivery & Banquet Cart
View product
Mobile Banquet Holding Cart (11 / 22-Tier)
View product

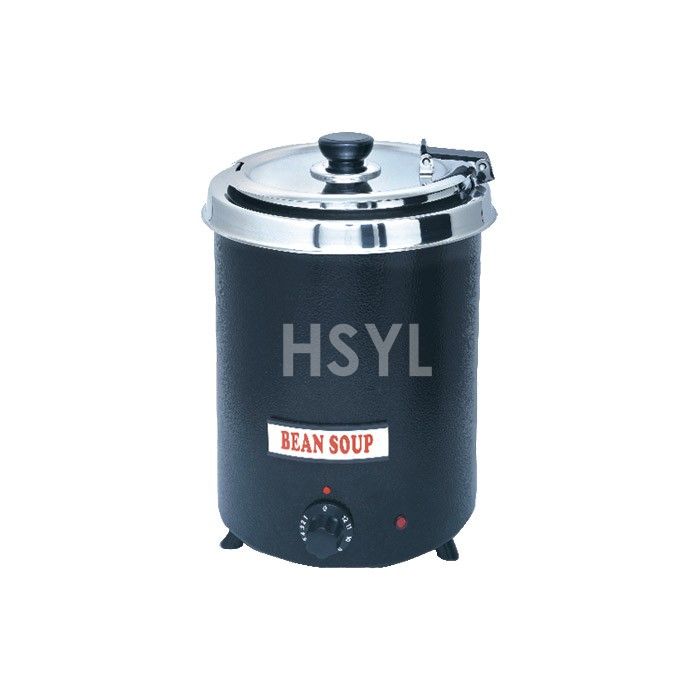

Commercial Soup Kettle SB-5700
View productFood Holding & Transport Questions
What is the safe hot-holding temperature for commercial food service?
International food safety codes require hot-held food to maintain a core temperature of at least 63–65 °C (depending on jurisdiction). Our holding cabinets are specified to hold at the setpoint ±2 °C across all shelf positions, verified by multi-point probe testing. Temperature should never be assumed from the controller display alone — probe verification at the core of the food item is part of any HACCP daily checklist.
How do I calculate how many holding cabinets I need for a banquet kitchen?
Start with your cover count, menu structure and service window. For 800 plated covers dispatched over 30 minutes, calculate backward: how many plates must be staged at minute zero? A single heated holding cabinet holds approximately 64–128 plated covers depending on GN format. Then add 1–2 cabinets for backup and hot bulk food holding before plating. The bottleneck is rarely the cabinet count — it is the transport route and lift availability.
Can food be rethermalised in a holding cabinet?
No. Holding cabinets are designed to maintain temperature, not to raise it. Food must enter the cabinet at or above the target holding temperature. For cook-chill or cook-freeze operations, a separate rethermalisation trolley or blast chiller/retherm unit is required before transfer to the holding cabinet. Using a holding cabinet for reheating creates a food safety hazard and will fail a health inspection.
Planning & Selection Resources
Plan Your Kitchen with an Engineering Team
Send your menu, meal volume, floor plan and utility conditions. We will identify the equipment logic, layout questions and technical data required before quotation.
