Roll-In Trolley Steaming Room 24 & 48-Tray (HSYL-RQ-TC24 / TC48 & HSYL-TC-24 / 36 / 48): B2B Engineering Overview
The Roll-In Trolley Steaming Room 24 & 48-Tray (HSYL-RQ-TC24 / TC48 & HSYL-TC-24 / 36 / 48) is an industrial-grade roll-in steamer solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Roll-in trolley design with integrated entry ramp eliminates manual tray lifting and dramatically accelerates meal turnaround. Fabricated with AISI 304 1.2mm pressurized inner steaming cavity, 50mm high-density polyurethane foam insulation & SUS304 rice/perforated trays, it delivers verified operational output (TC24: 1050×1050×2050mm (Gas 48kW) | TC48: 1950×1050×2050mm (Gas 90kW) | with SUS304 Roll-In Steaming Trolley) under LPG (2800Pa) / Natural Gas (2000Pa) + 220V Digital Controller supply and complies with IEC 60335-2-42 / EN 203-1 (Commercial Steamers), NSF/ANSI 4, CE, SASO.
3D Saturated Steam Generation & Roll-In Trolley Chamber Design
- High-Efficiency SUS316L Steam Generator / Multi-Flue Finned Heat Exchanger (TC24: 1050×1050×2050mm (Gas 48kW) | TC48: 1950×1050×2050mm (Gas 90kW) | with SUS304 Roll-In Steaming Trolley): Generates 100°C–105°C pressurized saturated steam within 3.5 minutes, cooking 50–250 kg of rice, dim sum, fish, or banquet meats in 35–40 minutes.
- 50mm Monoblock Polyurethane Insulation & Automotive EPDM Door Gasket: Locks thermal energy inside the cavity with zero steam leakage around the perimeter, keeping outer door temperatures below 48°C.
- Automatic Solenoid Water Fill, Floatless Level Probe & Dry-Burn Cutoff: Continuously monitors water reservoir depth and automatically cuts heating power with an audible alarm if water supply is interrupted.
- Flush Floor-Level Ramp & Heavy-Duty 24/36/48-Tray Roll-In Trolley: Operators wheel loaded SUS304 steaming trolleys directly from the prep room into the chamber without re-handling individual hot pans. Factory baseline configuration for HSYL-RQ-TC24 / TC48 & HSYL-TC-24 / 36 / 48: Roll-In Trolley Steaming Room.
Rapid 3-Minute Steam Generation & 316.8 kWh-Eq/Day Batch TCO
In high-volume canteen and catering operations, steaming cabinet insulation and heat-exchanger geometry dictate utility bills. The HSYL-RQ-TC24 / TC48 & HSYL-TC-24 / 36 / 48 achieves 94%+ thermal transfer efficiency, reducing batch steaming energy consumption to approximately 316.8 kWh-equivalent per 6-hour production day—saving 32% compared to uninsulated legacy steamers. Weekly bottom-valve blowdown and descaling keep heating elements operating at peak efficiency for over 8 years. Configured specifically as a Roll-In Trolley Steaming Room 24 & 48-Tray (TC24: 1050×1050×2050mm (Gas 48kW) | TC48: 1950×1050×2050mm (Gas 90kW) | with SUS304 Roll-In Steaming Trolley), this unit integrates directly into standardized commercial roll-in steamer lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HSYL-RQ-TC24 / TC48 & HSYL-TC-24 / 36 / 48 |
| Equipment Designation | Roll-In Trolley Steaming Room 24 & 48-Tray (HSYL-RQ-TC24 / TC48 & HSYL-TC-24 / 36 / 48) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | TC24: 1050×1050×2050mm (Gas 48kW) | TC48: 1950×1050×2050mm (Gas 90kW) | with SUS304 Roll-In Steaming Trolley |
| Power Supply / Energy Source | LPG (2800Pa) / Natural Gas (2000Pa) + 220V Digital Controller |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | AISI 304 1.2mm pressurized inner steaming cavity, 50mm high-density polyurethane foam insulation & SUS304 rice/perforated trays |
| Compliance & Design Standards | IEC 60335-2-42 / EN 203-1 (Commercial Steamers), NSF/ANSI 4, CE, SASO |
Sub-SKU Configuration Matrix (HSYL-RQ-TC24 (1-Trolley24 Trays)):
| Model | Dimensions (mm) | Door Configuration | Voltage | Heating Power | Control System | Net Weight |
|---|
| JSZB-03 | 1250*880*1850 | 3-Door3-Zone | 380V 3-Phase | 24.0 kW | Digital Touchscreen with Independent Timers | 165 kg |
| JSZB-04 | 1450*950*1950 | 4-Door4-Zone | 380V 3-Phase | 36.0 kW | Digital Touchscreen with Independent Timers | 210 kg |
Sub-SKU Configuration Matrix (HSYL-JSZB-03 / 04):
| Model | Room Size (mm) | Trolley Size (mm) | Gas Type | Max Gas Consumption | Trolley / Room Cap. | Total Net Weight |
|---|
| HSYL-TC-24G | 1050*1150*1950 | 650*750*1650 | NG / LPG | NG 3.5 m³/h / LPG 2.2 kg/h | Includes 1 × 24-Tray Trolley | 260 kg |
| HSYL-TC-48G | 1880*1150*1950 | 650*750*1650 * 2 | NG / LPG | NG 6.8 m³/h / LPG 4.2 kg/h | Includes 2 × Trolleys (48 Trays Total) | 420 kg |

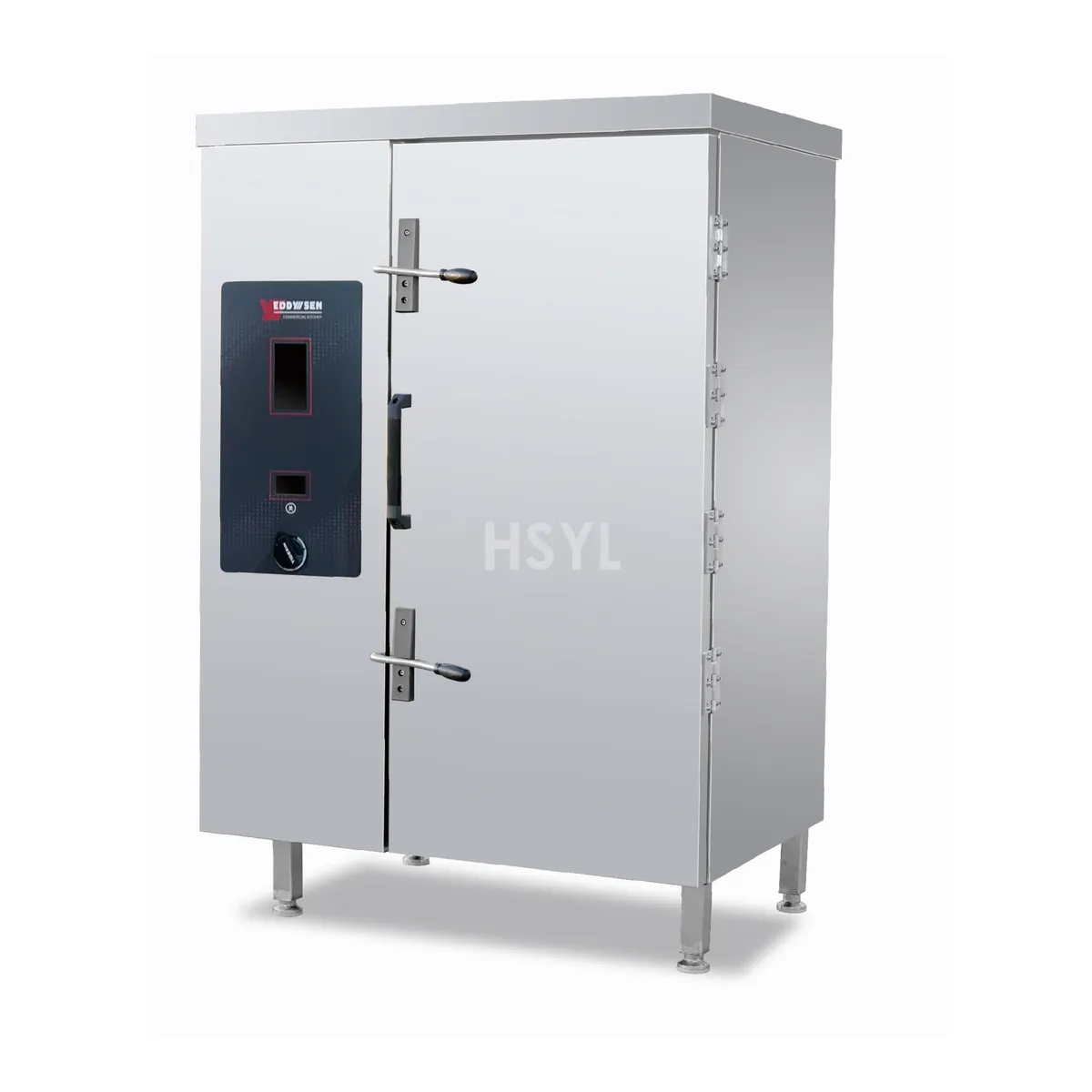

Roll-In Trolley Steaming Room
