4D Panoramic Insulated Glass Banquet Display & Holding Cart (HSYL-4D-BLCC / BL-YH22): B2B Engineering Overview
The 4D Panoramic Insulated Glass Banquet Display & Holding Cart (HSYL-4D-BLCC / BL-YH22) is an industrial-grade banquet holding solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Four-sided heated anti-fog tempered glass turns mobile banquet transport into a crystal-clear culinary showcase. Fabricated with AISI 304 stainless steel chamber/wells with 50mm high-density cyclopentane pu foam insulation, it delivers verified operational output (1-Door: 850×900×1820 (2.6kW) | 2-Door: 1550×900×1820 (4.8kW) | 4-Sided Double-Glazed Hollow Tempered Glass) under 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) supply and complies with IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO.
3D Forced-Convection Moisture-Lock Holding Architecture
- 3D Forced-Convection PTC Heating & Humidity Pan (1-Door: 850×900×1820 (2.6kW) | 2-Door: 1550×900×1820 (4.8kW) | 4-Sided Double-Glazed Hollow Tempered Glass): Circulates gentle, moisture-balanced warm air (30°C–85°C) across all 11 to 32 GN 2/1 or GN 1/1 levels so plated steaks, rice, and roasted meats stay tender for 2–4 hours.
- 50mm High-Density Polyurethane Foamed Insulation: Limits temperature drop to less than 2.5°C per hour during unplugged corridor transport from the kitchen to the ballroom.
- Heavy-Duty Ergonomic Hardware & Hygienic SUS304 Interior: Built with coved easy-clean corners, removable slide racks or GN pans, and heavy-duty casters/adjustable feet.
- Precision Digital/Capillary Thermostat & Over-Temp Cutoff: Maintains strict HACCP hot-holding compliance above 63°C–65°C with minimal power cycling. Factory baseline configuration for HSYL-4D-BLCC / BL-YH22: 4D Panoramic Insulated Glass Banquet Display & Holding Cart.
Banquet & Buffet Safe Holding (>=65°C) & 8.7 kWh/Day TCO
In hotel banquets, convention centers, and cafeteria serving lines, heat retention efficiency determines both food quality and electricity cost. Once preheated in 15–18 minutes, the HSYL-4D-BLCC / BL-YH22 cycles at only 42% duty factor, consuming roughly 8.7 kWh/day across an 8-hour banquet or buffet service. Modular plug-in heater assemblies and heavy-duty hardware minimize maintenance expenses over a 7-to-10-year hospitality lifecycle. Configured specifically as a 4D Panoramic Insulated Glass Banquet Display & Holding Cart (1-Door: 850×900×1820 (2.6kW) | 2-Door: 1550×900×1820 (4.8kW) | 4-Sided Double-Glazed Hollow Tempered Glass), this unit integrates directly into standardized commercial banquet holding lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HSYL-4D-BLCC / BL-YH22 |
| Equipment Designation | 4D Panoramic Insulated Glass Banquet Display & Holding Cart (HSYL-4D-BLCC / BL-YH22) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | 1-Door: 850×900×1820 (2.6kW) | 2-Door: 1550×900×1820 (4.8kW) | 4-Sided Double-Glazed Hollow Tempered Glass |
| Power Supply / Energy Source | 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | AISI 304 stainless steel chamber/wells with 50mm high-density cyclopentane PU foam insulation |
| Compliance & Design Standards | IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO |
Sub-SKU Configuration Matrix (HSYL-4D-BLCC):
| Model | Dimensions (mm) | Glass Spec | Voltage | Rated Power | LED Lighting | Tiers / Volume | Net Weight |
|---|
| BW-4D-01 | 850*900*1800 | 4-Sided Panoramic Double-Glazed Heated Anti-Fog Tempered Glass | 220V | 2.5 kW | Warm High-CRI LED Display Strip Lighting | 10 -Tier / 600 L | 110 kg |
| BW-4D-02 | 1550*900*1800 | 4-Sided Panoramic Double-Glazed Heated Anti-Fog Tempered Glass | 220V | 4.2 kW | Warm High-CRI LED Display Strip Lighting | 20 -Tier / 1200 L | 185 kg |
Sub-SKU Configuration Matrix (HSYL-BL-YH22):
| Model | Dimensions (mm) | Insulation Material | Voltage | Heating Power | Thermostat Mode | Caster Spec | Net Weight |
|---|
| BW-LH-01 | 820*880*1820 | Brushed S/S + High-Density Polyurethane Foam Insulation | 220V | 2.4 kW | Digital Forced-Air Warming Circulation | 5-Inch Heavy-Duty Medical-Grade Silent Casters | 92 kg |
| BW-LH-02 | 1500*880*1820 | Brushed S/S + High-Density Polyurethane Foam Insulation | 220V | 3.8 kW | Digital Forced-Air Warming Circulation | 5-Inch Heavy-Duty Medical-Grade Silent Casters | 152 kg |

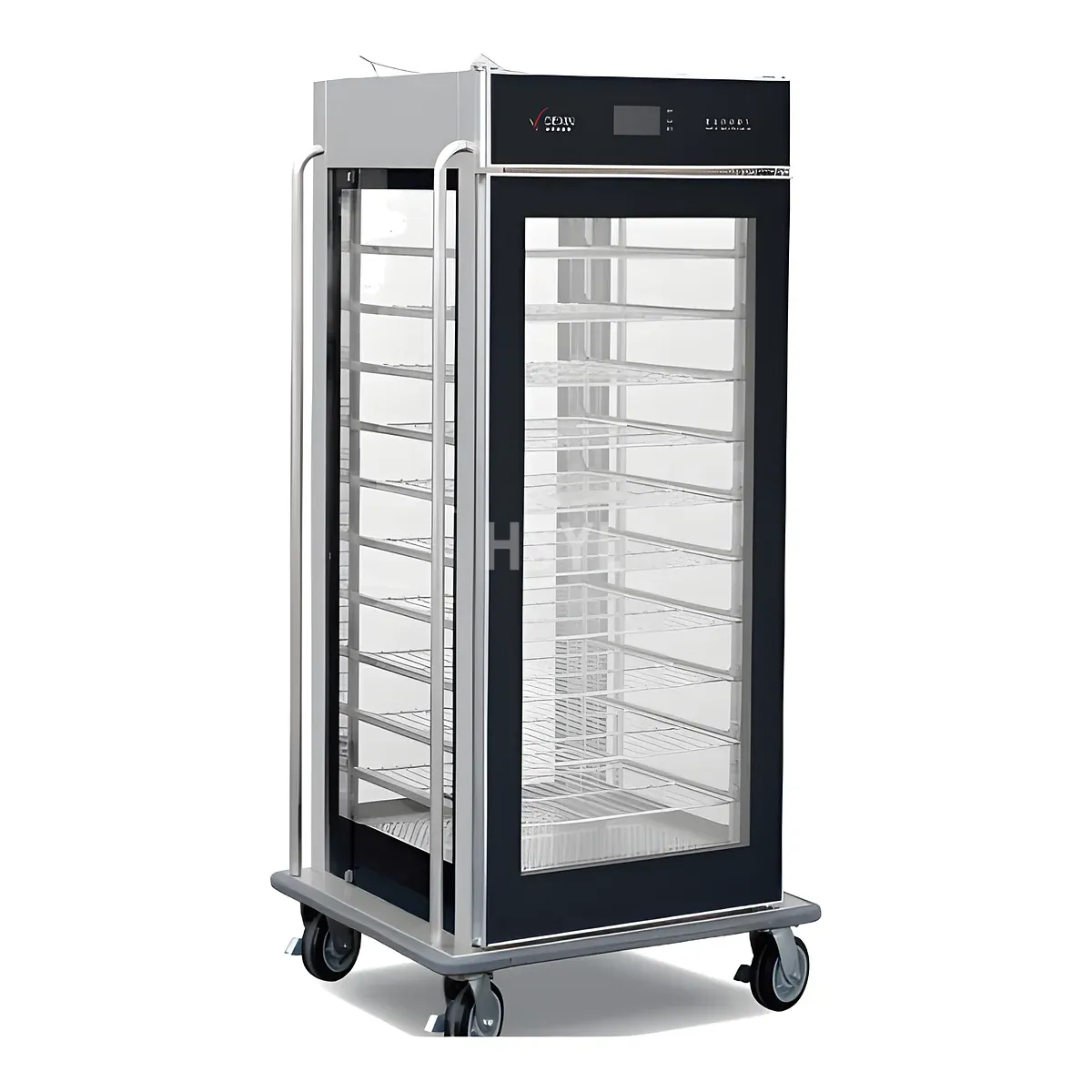

4D Panoramic Insulated Glass Banquet Display & Holding Cart
