Compact Low-Height Mini Mobile Banquet Holding Cart (HSYL-MINI-CC / BL-STC): B2B Engineering Overview
The Compact Low-Height Mini Mobile Banquet Holding Cart (HSYL-MINI-CC & HSYL-BL-STC) is an industrial-grade banquet holding solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Low-profile compact body fits easily into passenger elevators and narrow corridors for VIP dining rooms and clubhouses. Fabricated with AISI 304 stainless steel chamber/wells with 50mm high-density cyclopentane pu foam insulation, it delivers verified operational output (MINI-01: 750×800×1150mm (1.8kW) | MINI-02: 1380×800×1150mm (3.0kW) | 220V) under 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) supply and complies with IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO.
3D Forced-Convection Moisture-Lock Holding Architecture
- 3D Forced-Convection PTC Heating & Humidity Pan (MINI-01: 750×800×1150mm (1.8kW) | MINI-02: 1380×800×1150mm (3.0kW) | 220V): Circulates gentle, moisture-balanced warm air (30°C–85°C) across all 11 to 32 GN 2/1 or GN 1/1 levels so plated steaks, rice, and roasted meats stay tender for 2–4 hours.
- 50mm High-Density Polyurethane Foamed Insulation: Limits temperature drop to less than 2.5°C per hour during unplugged corridor transport from the kitchen to the ballroom.
- Heavy-Duty Ergonomic Hardware & Hygienic SUS304 Interior: Built with coved easy-clean corners, removable slide racks or GN pans, and heavy-duty casters/adjustable feet.
- Precision Digital/Capillary Thermostat & Over-Temp Cutoff: Maintains strict HACCP hot-holding compliance above 63°C–65°C with minimal power cycling. Factory baseline configuration for HSYL-MINI-CC / BL-STC: Compact Double-Door Mini Mobile Banquet Holding Cart.
Banquet & Buffet Safe Holding (>=65°C) & 6.0 kWh/Day TCO
In hotel banquets, convention centers, and cafeteria serving lines, heat retention efficiency determines both food quality and electricity cost. Once preheated in 15–18 minutes, the HSYL-MINI-CC / BL-STC cycles at only 42% duty factor, consuming roughly 6.0 kWh/day across an 8-hour banquet or buffet service. Modular plug-in heater assemblies and heavy-duty hardware minimize maintenance expenses over a 7-to-10-year hospitality lifecycle. Configured specifically as a Compact Low-Height Mini Mobile Banquet Holding Cart (MINI-01: 750×800×1150mm (1.8kW) | MINI-02: 1380×800×1150mm (3.0kW) | 220V), this unit integrates directly into standardized commercial banquet holding lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HSYL-MINI-CC / BL-STC |
| Equipment Designation | Compact Low-Height Mini Mobile Banquet Holding Cart (HSYL-MINI-CC & HSYL-BL-STC) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | MINI-01: 750×800×1150mm (1.8kW) | MINI-02: 1380×800×1150mm (3.0kW) | 220V |
| Power Supply / Energy Source | 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | AISI 304 stainless steel chamber/wells with 50mm high-density cyclopentane PU foam insulation |
| Compliance & Design Standards | IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO |
Sub-SKU Configuration Matrix (HSYL-MINI-CC):
| Model | Dimensions (mm) | Door Mechanism | Voltage | Heating Power | Thermostat System | Tray Capacity | Net Weight |
|---|
| BW-MINI-01 | 680*750*1250 | Compact Low-Profile Double-Door | 220V | 1.5 kW | Precision PTC Thermostatic Hot-Air Circulation | 6 -Tier GN1/1 GN Pans | 58 kg |
| BW-MINI-02 | 880*750*1250 | Compact Low-Profile Double-Door | 220V | 1.8 kW | Precision PTC Thermostatic Hot-Air Circulation | 8 -Tier GN1/1 GN Pans | 68 kg |
Sub-SKU Configuration Matrix (HSYL-BL-STC):
| Model | Dimensions (mm) | Body Material | Voltage | Holding Power | Handle Design | Net Weight |
|---|
| BW-QB-01 | 720*800*1650 | Lightweight Aviation Aluminum Extrusion + SUS304 Stainless Steel | 220V | 1.6 kW | Dual-Side Ergonomic Push Handles with Bumpers | 65 kg |
| BW-QB-02 | 1350*800*1650 | Lightweight Aviation Aluminum Extrusion + SUS304 Stainless Steel | 220V | 2.8 kW | Dual-Side Ergonomic Push Handles with Bumpers | 108 kg |

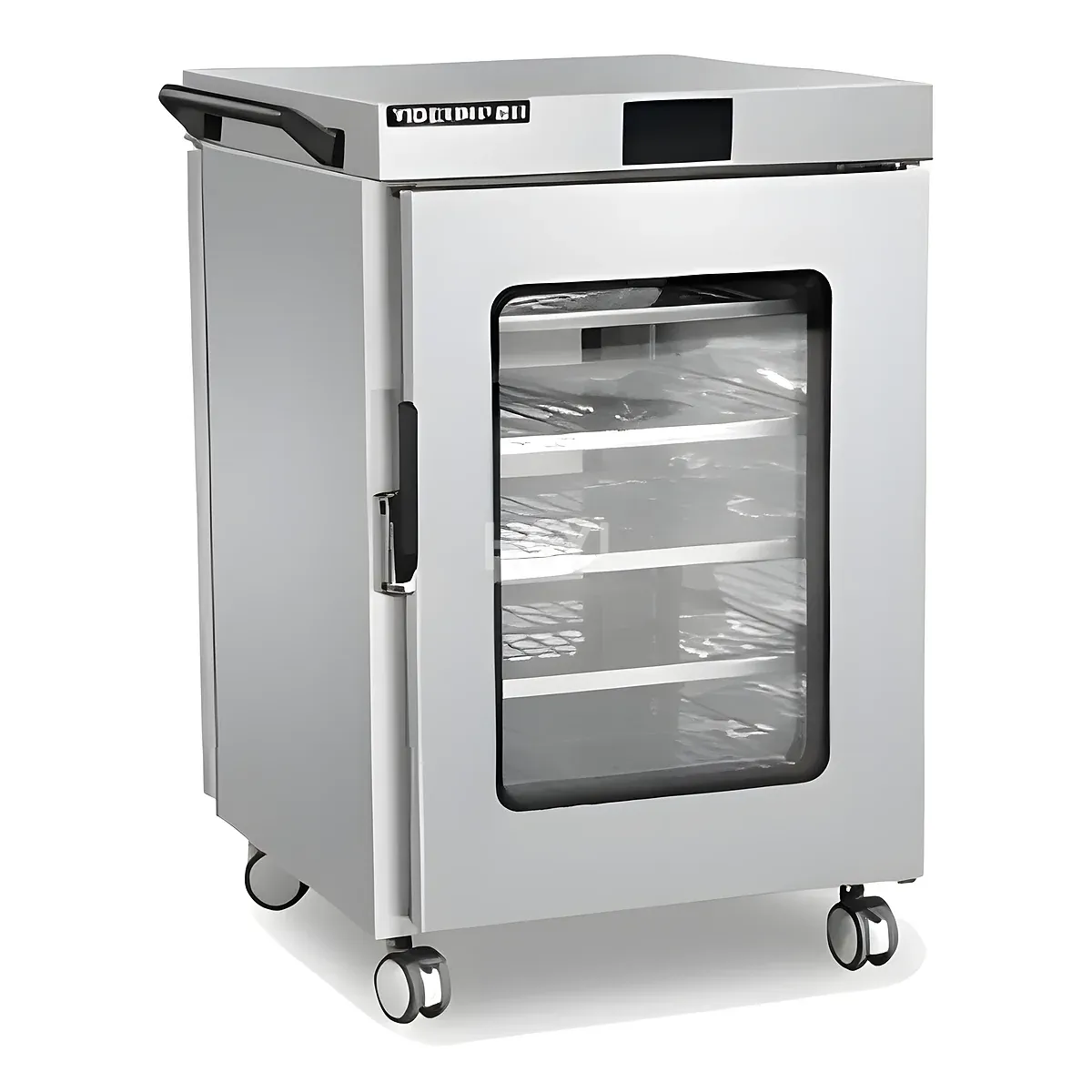

Compact Low-Height Mobile Banquet Holding Cart
