Battery-Powered Motorized Heated Meal Delivery & Banquet Cart

Battery-Powered Motorized Heated Meal Delivery & Banquet Cart (HSYL-DD-CC-C (BW-DD-C1)): B2B Engineering Overview

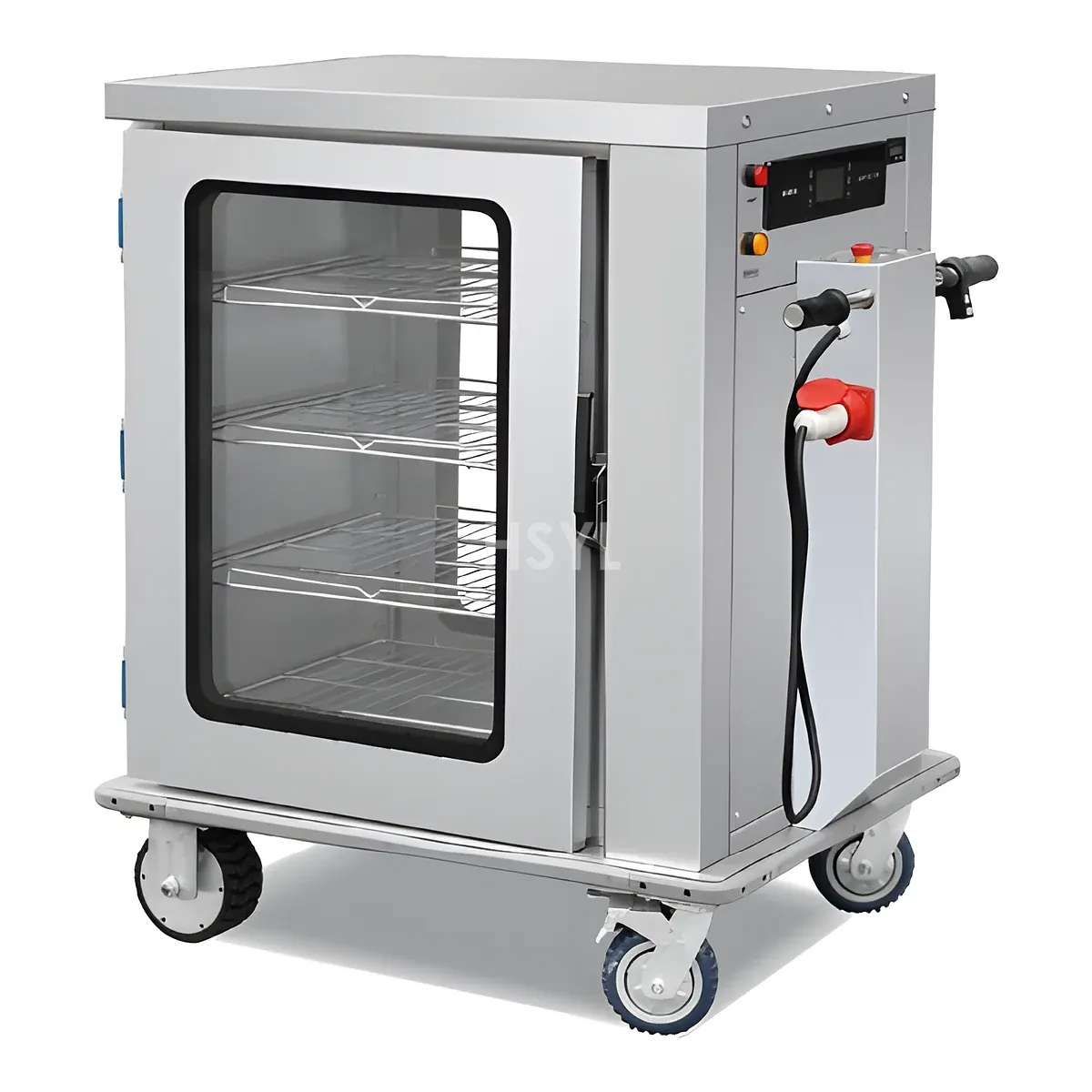

The Battery-Powered Motorized Heated Meal Delivery & Banquet Cart (HSYL-DD-CC-C) is an industrial-grade banquet holding solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Motorized electric drive with onboard battery pack for effortless long-distance meal delivery across campuses, resorts, and hospitals. Fabricated with AISI 304 stainless steel chamber/wells with 50mm high-density cyclopentane pu foam insulation, it delivers verified operational output (1450×850×1650mm | 2.5kW Holding Heater (220V) + 24V DC Motorized Drive | Full-Load Climbing Grade >=12 deg) under 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) supply and complies with IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO.

3D Forced-Convection Moisture-Lock Holding Architecture

• 3D Forced-Convection PTC Heating & Humidity Pan (1450×850×1650mm | 2.5kW Holding Heater (220V) + 24V DC Motorized Drive | Full-Load Climbing Grade >=12 deg): Circulates gentle, moisture-balanced warm air (30°C–85°C) across all 11 to 32 GN 2/1 or GN 1/1 levels so plated steaks, rice, and roasted meats stay tender for 2–4 hours.
• 50mm High-Density Polyurethane Foamed Insulation: Limits temperature drop to less than 2.5°C per hour during unplugged corridor transport from the kitchen to the ballroom.
• 24V DC Motorized Drive Axle with >=12° Full-Load Ramp Climbing: Handlebar throttle, electromagnetic parking brake, and stepless forward/reverse drive allow a single attendant to move 300 kg of hot meals up resort ramps effortlessly.
• Precision Digital/Capillary Thermostat & Over-Temp Cutoff: Maintains strict HACCP hot-holding compliance above 63°C–65°C with minimal power cycling. Factory baseline configuration for HSYL-DD-CC-C (BW-DD-C1): Battery-Powered Motorized Heated Meal Delivery Cart (Type C).

Banquet & Buffet Safe Holding (>=65°C) & 8.4 kWh/Day TCO

In hotel banquets, convention centers, and cafeteria serving lines, heat retention efficiency determines both food quality and electricity cost. Once preheated in 15–18 minutes, the HSYL-DD-CC-C (BW-DD-C1) cycles at only 42% duty factor, consuming roughly 8.4 kWh/day across an 8-hour banquet or buffet service. Modular plug-in heater assemblies and heavy-duty hardware minimize maintenance expenses over a 7-to-10-year hospitality lifecycle. Configured specifically as a Battery-Powered Motorized Heated Meal Delivery & Banquet Cart (1450×850×1650mm | 2.5kW Holding Heater (220V) + 24V DC Motorized Drive | Full-Load Climbing Grade >=12 deg), this unit integrates directly into standardized commercial banquet holding lines with full factory spare-parts traceability.

Technical Specification Sheet & Sub-SKU Matrix
