Commercial Roll-In Banquet Trolley Hot-Air Sterilization Cabinet (HSYL-YH-JJTC / TC-XD01/02): B2B Engineering Overview
The Commercial Roll-In Banquet Trolley Hot-Air Sterilization Cabinet (HSYL-YH-JJTC) is an industrial-grade sterilization solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Compact, cost-effective roll-in trolley sterilizer designed for rapid tableware turnover in small-to-medium banquet halls. Fabricated with AISI 304 / anti-fingerprint brushed stainless steel chamber, 45mm–50mm high-density polyurethane/rock-wool insulation & 6mm solid SUS304 racks, it delivers verified operational output (1-Trolley: 980×900×1850mm (4.0kW, 220V) | 2-Trolley: 1750×900×1850mm (8.0kW, 380V) | 50–110°C) under 220V–240V / 1Ph / 50–60Hz (380V on high-power models) supply and complies with IEC 60335-2-58 / GB 17988 (2-Star Escherichia coli & Poliovirus Inactivation), HACCP Sanitation Standard, CE.
125°C–150°C 3D Hot-Air Circulation Sterilization
- 125°C–150°C Far-Infrared / 3D Forced Hot-Air Circulation (1-Trolley: 980×900×1850mm (4.0kW, 220V) | 2-Trolley: 1750×900×1850mm (8.0kW, 380V) | 50–110°C): Achieves 2-Star hospital-grade thermal inactivation of E. coli, Staphylococcus aureus, and Hepatitis/Poliovirus across dense stacks of porcelain, glass, and stainless steel tableware.
- 45mm–50mm High-Density Thermal Insulation & Silicone Magnetic Gasket: Locks thermal energy inside the cavity so outer cabinet walls remain below 45°C even during peak 125°C–150°C sterilization cycles.
- Modular Knock-Down Chamber / Flush Floor Roll-In Banquet Trolley Track: Eliminates manual loading and unloading of thousands of canteen trays—stewards wheel dish trolleys directly from the conveyor dishwasher into the sterilization chamber.
- Microcomputer LED Cycle Timer & Door-Open Safety Interlock: Automatically cuts UV-C, ozone, and heating elements the instant a door is opened during operation. Factory baseline configuration for HSYL-YH-JJTC / TC-XD01/02: Economy Roll-In Banquet Trolley Sterilization Cabinet.
HACCP Pathogenic Inactivation & 9.00 kWh/Day Sterilization TCO
In humid Southeast Asian and GCC institutional kitchens, damp tableware stored on open shelves rapidly breeds mold and coliform bacteria. Running two 60-to-90-minute sanitization and drying cycles per day on the HSYL-YH-JJTC / TC-XD01/02 consumes approximately 9.00 kWh/day, keeping sanitized tableware, knives, or cleanroom garments in a sealed, positive-pressure sterile environment for 24 hours. Long-life heating tubes (>8,000h) and plug-in digital PCBs ensure minimal maintenance cost. Configured specifically as a Commercial Roll-In Banquet Trolley Hot-Air Sterilization Cabinet (1-Trolley: 980×900×1850mm (4.0kW, 220V) | 2-Trolley: 1750×900×1850mm (8.0kW, 380V) | 50–110°C), this unit integrates directly into standardized commercial sterilization lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HSYL-YH-JJTC / TC-XD01/02 |
| Equipment Designation | Commercial Roll-In Banquet Trolley Hot-Air Sterilization Cabinet (HSYL-YH-JJTC) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | 1-Trolley: 980×900×1850mm (4.0kW, 220V) | 2-Trolley: 1750×900×1850mm (8.0kW, 380V) | 50–110°C |
| Power Supply / Energy Source | 220V–240V / 1Ph / 50–60Hz (380V on high-power models) |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | AISI 304 / anti-fingerprint brushed stainless steel chamber, 45mm–50mm high-density polyurethane/rock-wool insulation & 6mm solid SUS304 racks |
| Compliance & Design Standards | IEC 60335-2-58 / GB 17988 (2-Star Escherichia coli & Poliovirus Inactivation), HACCP Sanitation Standard, CE |
Sub-SKU Configuration Matrix (HSYL-YH-JJTC):
| Model | Dimensions (mm) | Trolley Access | Voltage | Rated Power | Temp Range | Net Weight |
|---|
| TC-JJ-01 | 980*900*1850 | Ramp Roll-In / Roll-Out Access | 220V | 4.0 kW | 50 ~ 110 ℃ | 125 kg |
| TC-JJ-02 | 1750*900*1850 | Double-Door Roll-In / Roll-Out for 2 Trolleys | 380V | 8.0 kW | 50 ~ 110 ℃ | 210 kg |
Sub-SKU Configuration Matrix (HSYL-YH-TC):
| Model | Dimensions (mm) | Trolley Config | Voltage | Heating Power | Blower Circulation | Capacity | Net Weight |
|---|
| TC-XD-01 | 1050*950*1950 | Includes 1 × SUS304 Meal Tray Trolley | 380V/220V | 6.0 kW | Dual-Bearing High-Temp Hot-Air Circulation Blower | 300-400Tableware Pieces | 145 kg |
| TC-XD-02 | 1850*950*1950 | Includes 2 × SUS304 Meal Tray Trolleys | 380V/220V | 12.0 kW | Quad-Bearing High-Temp Hot-Air Circulation Blower | 600-800Tableware Pieces | 240 kg |

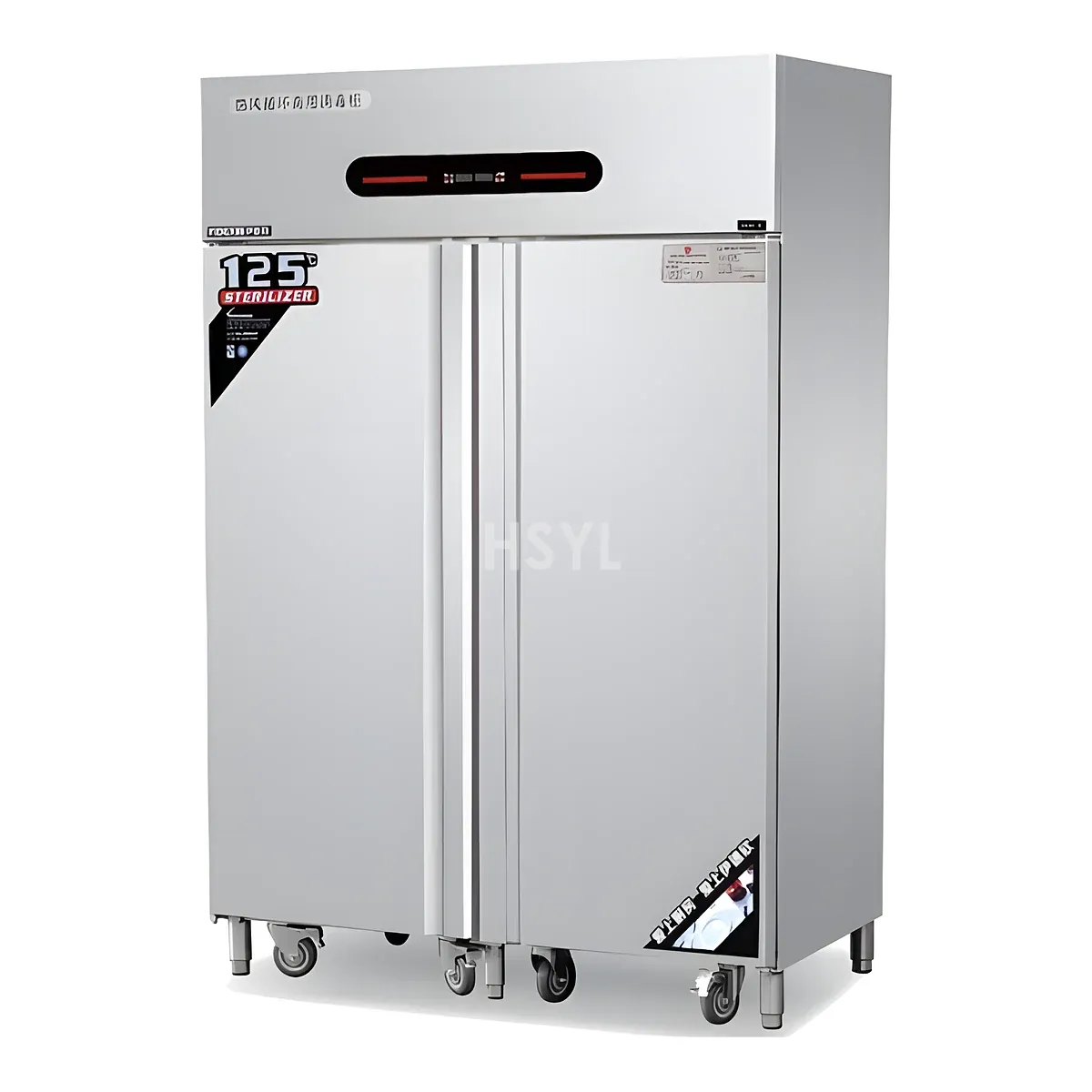

Commercial Roll-In Banquet Trolley Hot-Air Sterilization Cabinet
