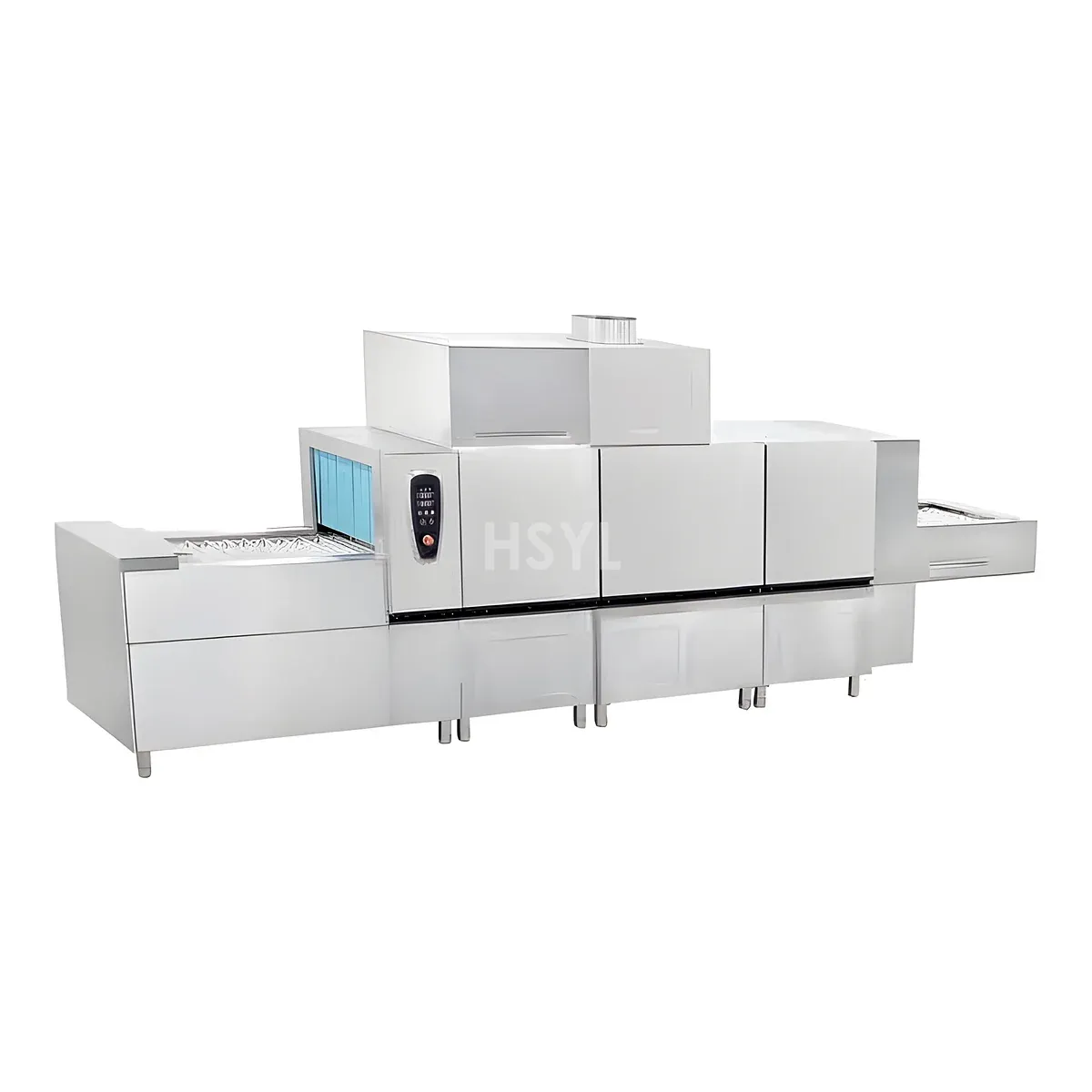

Flight-Type Tunnel Dishwasher 5000 Dishes/Hour – Electric & Steam

Commercial Flight-Type Tunnel Dishwasher 5000 Dishes/Hour Electric & Steam (HDW5000 / HDW5000L): B2B Engineering Overview

The Commercial Flight-Type Tunnel Dishwasher 5000 Dishes/Hour Electric & Steam (HDW5000 / HDW5000L) is an industrial-grade dishwashing solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Engineered for university cafeterias, large hospital dietary centers, and 5-star hotel banquet facilities with continuous conveyor workflow. Fabricated with AISI 304 (1.2mm–1.5mm) deep-drawn wash tank, sus316l booster heating elements & stainless steel anti-clog wash/rinse arms, it delivers verified operational output (HDW5000: 3600×920×1680mm (63.7kW Electric or 27.7kW + Steam) | HDW5000L: 4400×920×1950mm (with Heat-Recovery Condenser)) under 380V–415V / 3Ph+N+PE / 50–60Hz supply and complies with IEC 60335-2-58, NSF/ANSI 3 (Commercial Warewashing 82°C Thermal Sanitization), DIN 10510 / 10512, CE, SASO.

Multi-Stage Flight-Type Peg Belt & 5,000 Dishes/Hour Institutional Dishroom Line

• Continuous Peg-Type Flight Conveyor Belt for 3,600–6,500 Dishes/Hour (HDW5000: 3600×920×1680mm (63.7kW Electric or 27.7kW + Steam) | HDW5000L: 4400×920×1950mm (with Heat-Recovery Condenser)): Plates, bowls, canteen compartments, and soup trays load directly onto the food-grade polypropylene peg belt without requiring separate 500×500mm racks.
• 4-Stage Progressive Wash (Pre-Wash + Main Wash + 85°C Final Rinse + Hot-Air Drying): Cascade water recycling flows clean rinse water backward into wash and pre-wash tanks, holding fresh water consumption to just 280–350 L/hour.
• Available in 380V Electric Heating or Direct Boiler-Steam Heating + Heat Recovery: Adapts to large hotel, hospital, airline catering, and university central dishrooms.
• Zone-Specific PLC Touch Control & Jam-Protection Clutch: Immediately halts the conveyor drive if a dropped utensil obstructs the exit roller. Factory baseline configuration for HDW5000 / HDW5000L: Rack Conveyor Commercial Dishwasher.

Water, Chemical & 221.7 kWh/Day Stewarding TCO Analysis

In commercial stewarding operations, energy, water, and chemical dosing represent over 75% of lifecycle cost. Operating across a 6-hour peak washing schedule (58% effective heater duty factor), the HDW5000 / HDW5000L consumes approximately 221.7 kWh/day while holding fresh rinse water consumption to just 2.0–2.4 Liters per rack. Tool-free removable stainless scrap screens and spray arms allow complete daily tank flushing in under 6 minutes. Configured specifically as a Commercial Flight-Type Tunnel Dishwasher 5000 Dishes/Hour Electric & Steam (HDW5000: 3600×920×1680mm (63.7kW Electric or 27.7kW + Steam) | HDW5000L: 4400×920×1950mm (with Heat-Recovery Condenser)), this unit integrates directly into standardized commercial dishwashing lines with full factory spare-parts traceability.

Technical Specification Sheet & Sub-SKU Matrix
