Commercial Rack Conveyor Dishwasher with Integrated Hot-Air Dryer Tunnel (HDW1500D / HDW2000D / 2000DL): B2B Engineering Overview
The Commercial Rack Conveyor Dishwasher with Integrated Hot-Air Dryer Tunnel (HDW1500D / HDW2000D) is an industrial-grade dishwashing solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Engineered for university cafeterias, large hospital dietary centers, and 5-star hotel banquet facilities with continuous conveyor workflow. Fabricated with AISI 304 (1.2mm–1.5mm) deep-drawn wash tank, sus316l booster heating elements & stainless steel anti-clog wash/rinse arms, it delivers verified operational output (HDW1500D: 1550×780×1600mm (38.75kW) | HDW2000D: 2050×780×1600mm (48.2kW) | 380V) under 380V–415V / 3Ph+N+PE / 50–60Hz supply and complies with IEC 60335-2-58, NSF/ANSI 3 (Commercial Warewashing 82°C Thermal Sanitization), DIN 10510 / 10512, CE, SASO.
Dual-Speed Rack Conveyor & Integrated High-Velocity Hot-Air Dryer Tunnel
- Integrated High-Velocity Hot-Air Drying Tunnel (HDW1500D: 1550×780×1600mm (38.75kW) | HDW2000D: 2050×780×1600mm (48.2kW) | 380V): Powerful top-mounted heated air-knife blower flashes residual rinse water off plates and glassware immediately after the 82°C sanitizing rinse, allowing instant stacking without hand-towel wiping.
- 150–260 Racks/Hour (2,700–4,600 Dishes/Hour) Continuous Rack Conveyor: Pawl-bar drive advances standard 500×500mm racks smoothly through pre-wash, main wash, power rinse, and drying zones.
- AISI 304 1.5mm Tank & Counterbalanced Gull-Wing Inspection Doors: Full-width insulated inspection doors lift effortlessly for end-of-shift filter removal and nozzle inspection.
- Optical Rack-Presence Sensor & Economizer Idle Mode: Automatically shuts off final rinse water and dryer blower when no rack is passing through the zone. Factory baseline configuration for HDW1500D / HDW2000D / 2000DL: Rack Conveyor Commercial Dishwasher.
Water, Chemical & 134.8 kWh/Day Stewarding TCO Analysis
In commercial stewarding operations, energy, water, and chemical dosing represent over 75% of lifecycle cost. Operating across a 6-hour peak washing schedule (58% effective heater duty factor), the HDW1500D / HDW2000D / 2000DL consumes approximately 134.8 kWh/day while holding fresh rinse water consumption to just 2.0–2.4 Liters per rack. Tool-free removable stainless scrap screens and spray arms allow complete daily tank flushing in under 6 minutes. Configured specifically as a Commercial Rack Conveyor Dishwasher with Integrated Hot-Air Dryer Tunnel (HDW1500D: 1550×780×1600mm (38.75kW) | HDW2000D: 2050×780×1600mm (48.2kW) | 380V), this unit integrates directly into standardized commercial dishwashing lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HDW1500D / HDW2000D / 2000DL |
| Equipment Designation | Commercial Rack Conveyor Dishwasher with Integrated Hot-Air Dryer Tunnel (HDW1500D / HDW2000D) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | HDW1500D: 1550×780×1600mm (38.75kW) | HDW2000D: 2050×780×1600mm (48.2kW) | 380V |
| Power Supply / Energy Source | 380V–415V / 3Ph+N+PE / 50–60Hz |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | AISI 304 (1.2mm–1.5mm) deep-drawn wash tank, SUS316L booster heating elements & stainless steel anti-clog wash/rinse arms |
| Compliance & Design Standards | IEC 60335-2-58, NSF/ANSI 3 (Commercial Warewashing 82°C Thermal Sanitization), DIN 10510 / 10512, CE, SASO |
Sub-SKU Configuration Matrix (HS-DW200 / DW300 (Single/Dual Tank + Dryer)):
| Model | Description | Heating Mode | Capacity (Dishes/h) | Rinse Water (L/h) | Total Power | Dimensions (mm) |
|---|
| HDW3000 | Flight Tunnel Dishwasher | Electric Heating / Steam Heating | 3000 Dishes/h | 350 - 450 L/h | 52.0 kW | 3800*900*1650 |
| HDW5000 | Dual-Wash Flight Dishwasher | Electric Heating / Steam Heating | 5000 Dishes/h | 450 - 550 L/h | 68.0 kW | 4800*900*1650 |
| HDW5000L | Flight Dishwasher + Dryer | Electric Heating / Steam Heating | 5000 Dishes/h | 450 - 550 L/h | 82.0 kW | 5800*900*1650 |
| HDW8000 | Central Flight Dishwasher | Electric Heating / Steam Heating | 8000 Dishes/h | 600 - 750 L/h | 95.0 kW | 6800*900*1700 |
| HDW8000L | Flight Dishwasher + Long Dryer | Electric Heating / Steam Heating | 8000 Dishes/h | 600 - 750 L/h | 115 kW | 7800*900*1700 |
Sub-SKU Configuration Matrix (HS-DW100):
| Model | Feed Direction | Heating Method | Capacity (Racks/h) | Rinse Water (L/h) | Wash / Dry Power | Dimensions (mm) |
|---|
| HDW260-EL | Left-to-Right Feed | Electric Heating | 260 Racks/h | 320 - 400 L/h | 48.0 kW | 2050*810*1520 |
| HDW260-ER | Right-to-Left Feed | Electric Heating | 260 Racks/h | 320 - 400 L/h | 48.0 kW | 2050*810*1520 |
| HDW1500D-EL | Left-to-Right Feed | Electric Heating | 1500 Dishes/h | 250 - 320 L/h | 38.0 kW | 1750*820*1560 |
| HDW2000D-ER | Right-to-Left Feed | Electric Heating | 2000 Dishes/h | 280 - 350 L/h | 45.0 kW | 2150*820*1560 |
| HDW2000DL-ER | Right-to-Left (with Dryer) | Electric Heating + Ducted Hot-Air Drying | 2000 Dishes/h | 280 - 350 L/h | 45kW + Dryer 9kW | 2750*820*1560 |

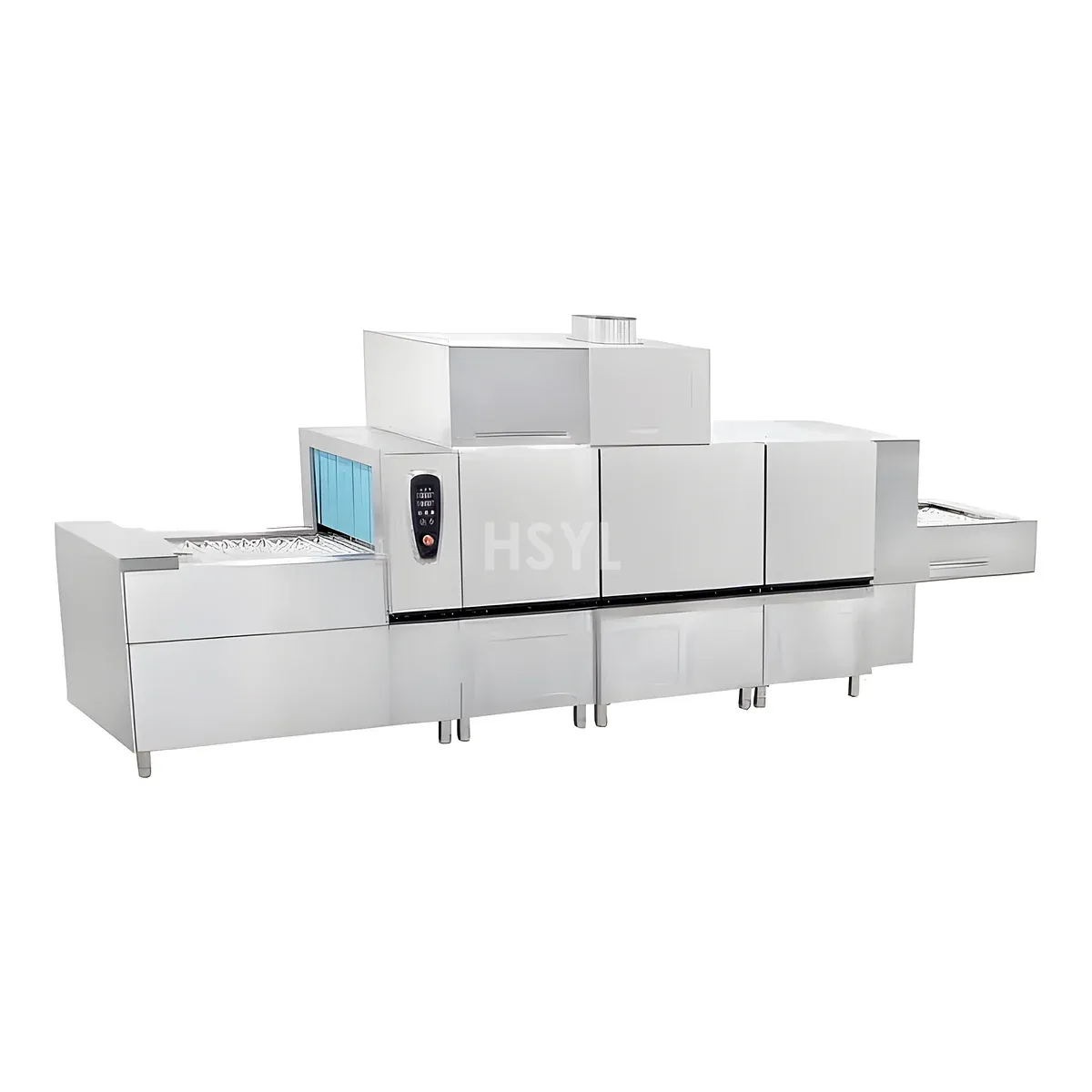

Rack Conveyor Dishwasher with Hot-Air Dryer Tunnel
