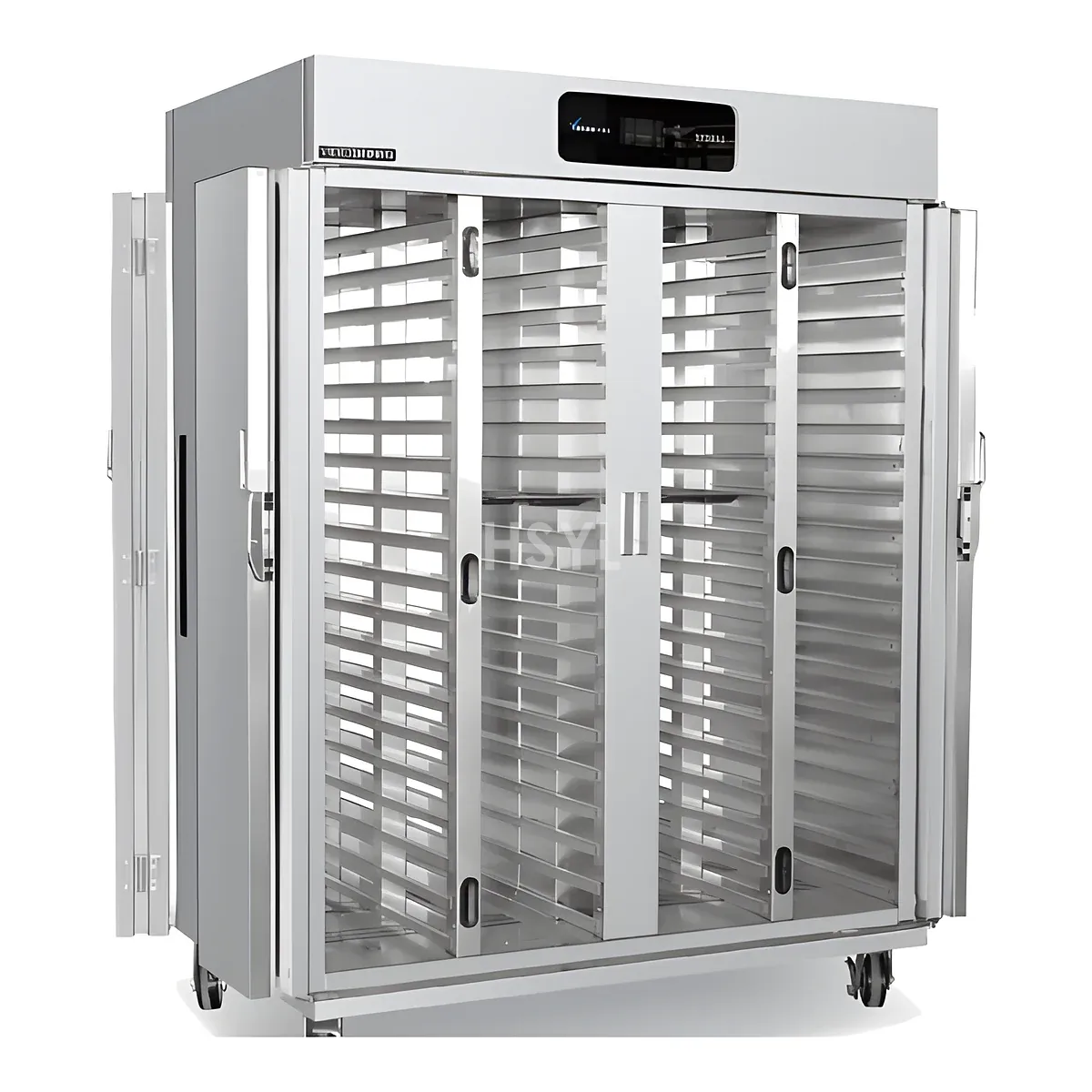

High-Density 16 & 32-Tier Cafeteria Fast-Food Tray Holding Cart

High-Density 16 & 32-Tier Cafeteria Fast-Food Tray Holding Cart (HSYL-CC-22 (BW-KC-16 / BW-KC-32)): B2B Engineering Overview

The High-Density 16 & 32-Tier Cafeteria Fast-Food Tray Holding Cart (BW-KC-16 / BW-KC-32) is an industrial-grade banquet holding solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. High-capacity mobile warmer holding up to 152 compartment meal trays with anti-tilt slide rails for rapid meal service. Fabricated with AISI 304 stainless steel chamber/wells with 50mm high-density cyclopentane pu foam insulation, it delivers verified operational output (BW-KC-16: 820×900×1800mm (2.6kW) | BW-KC-32: 1550×900×1800mm (4.8kW) | 220V) under 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) supply and complies with IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO.

3D Forced-Convection Moisture-Lock Holding Architecture

• 3D Forced-Convection PTC Heating & Humidity Pan (BW-KC-16: 820×900×1800mm (2.6kW) | BW-KC-32: 1550×900×1800mm (4.8kW) | 220V): Circulates gentle, moisture-balanced warm air (30°C–85°C) across all 11 to 32 GN 2/1 or GN 1/1 levels so plated steaks, rice, and roasted meats stay tender for 2–4 hours.
• 50mm High-Density Polyurethane Foamed Insulation: Limits temperature drop to less than 2.5°C per hour during unplugged corridor transport from the kitchen to the ballroom.
• Heavy-Duty Ergonomic Hardware & Hygienic SUS304 Interior: Built with coved easy-clean corners, removable slide racks or GN pans, and heavy-duty casters/adjustable feet.
• Precision Digital/Capillary Thermostat & Over-Temp Cutoff: Maintains strict HACCP hot-holding compliance above 63°C–65°C with minimal power cycling. Factory baseline configuration for HSYL-CC-22 (BW-KC-16 / BW-KC-32): High-Capacity Cafeteria Fast-Food Tray Holding Cart.

Banquet & Buffet Safe Holding (>=65°C) & 8.7 kWh/Day TCO

In hotel banquets, convention centers, and cafeteria serving lines, heat retention efficiency determines both food quality and electricity cost. Once preheated in 15–18 minutes, the HSYL-CC-22 (BW-KC-16 / BW-KC-32) cycles at only 42% duty factor, consuming roughly 8.7 kWh/day across an 8-hour banquet or buffet service. Modular plug-in heater assemblies and heavy-duty hardware minimize maintenance expenses over a 7-to-10-year hospitality lifecycle. Configured specifically as a High-Density 16 & 32-Tier Cafeteria Fast-Food Tray Holding Cart (BW-KC-16: 820×900×1800mm (2.6kW) | BW-KC-32: 1550×900×1800mm (4.8kW) | 220V), this unit integrates directly into standardized commercial banquet holding lines with full factory spare-parts traceability.

Technical Specification Sheet & Sub-SKU Matrix
