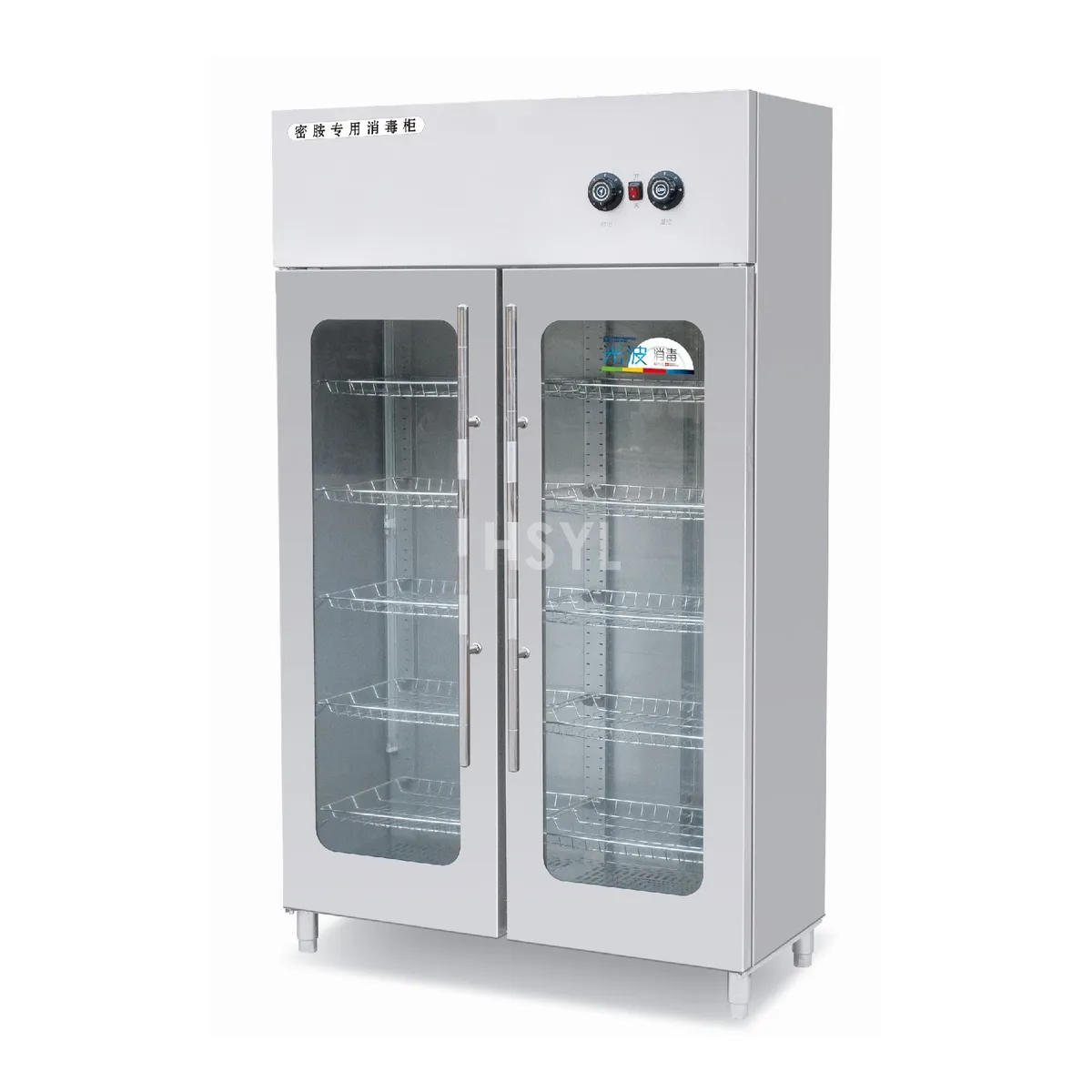

Melamine Tableware Medium-Temp & UV Sterilization Cabinet

Commercial Melamine Tableware Dedicated Medium-Temp & UV Sterilization Cabinet (HSYL-MA-A01/A02 & B01/B02): B2B Engineering Overview

The Commercial Melamine Tableware Dedicated Medium-Temp & UV Sterilization Cabinet (HSYL-MA Series) is an industrial-grade sterilization solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Calibrated for melamine heat limits to prevent scorching or warping, combining dual UV/ozone sterilization with warm-air drying. Fabricated with AISI 304 / anti-fingerprint brushed stainless steel chamber, 45mm–50mm high-density polyurethane/rock-wool insulation & 6mm solid SUS304 racks, it delivers verified operational output (2-Door 720L (1200×600×1850mm, 2.4kW) | 3-Door 1380L (1800×600×1850mm, 3.6kW) | Thermostatic Control 75–85°C) under 220V–240V / 1Ph / 50–60Hz (380V on high-power models) supply and complies with IEC 60335-2-58 / GB 17988 (2-Star Escherichia coli & Poliovirus Inactivation), HACCP Sanitation Standard, CE.

75°C–85°C Melamine-Safe Medium-Temp & UV/Ozone Sterilization

• Dedicated 75°C–85°C Medium-Temp PTC Drying + UV-C & Ozone (2-Door 720L (1200×600×1850mm, 2.4kW) | 3-Door 1380L (1800×600×1850mm, 3.6kW) | Thermostatic Control 75–85°C): Specifically calibrated below the 95°C thermal deformation threshold of A5 melamine resin tableware, preventing warping, blistering, or yellowing while achieving 99.99% bacterial kill.
• 45mm–50mm High-Density Thermal Insulation & Silicone Magnetic Gasket: Locks thermal energy inside the cavity so outer cabinet walls remain below 45°C even during peak 125°C–150°C sterilization cycles.
• Heavy-Load 6mm Solid SUS304 Wire Shelving / Custom Knife & Garment Racks: Supports 35–50 kg per shelf without sagging under heavy ceramic banquet plates or GN pans.
• Microcomputer LED Cycle Timer & Door-Open Safety Interlock: Automatically cuts UV-C, ozone, and heating elements the instant a door is opened during operation. Factory baseline configuration for HSYL-MA-A01/A02 & B01/B02: Melamine Tableware Ozone & Medium-Temp Drying Sterilizer (Type A).

HACCP Pathogenic Inactivation & 5.40 kWh/Day Sterilization TCO

In humid Southeast Asian and GCC institutional kitchens, damp tableware stored on open shelves rapidly breeds mold and coliform bacteria. Running two 60-to-90-minute sanitization and drying cycles per day on the HSYL-MA-A01/A02 & B01/B02 consumes approximately 5.40 kWh/day, keeping sanitized tableware, knives, or cleanroom garments in a sealed, positive-pressure sterile environment for 24 hours. Long-life heating tubes (>8,000h) and plug-in digital PCBs ensure minimal maintenance cost. Configured specifically as a Commercial Melamine Tableware Dedicated Medium-Temp & UV Sterilization Cabinet (2-Door 720L (1200×600×1850mm, 2.4kW) | 3-Door 1380L (1800×600×1850mm, 3.6kW) | Thermostatic Control 75–85°C), this unit integrates directly into standardized commercial sterilization lines with full factory spare-parts traceability.

Technical Specification Sheet & Sub-SKU Matrix
