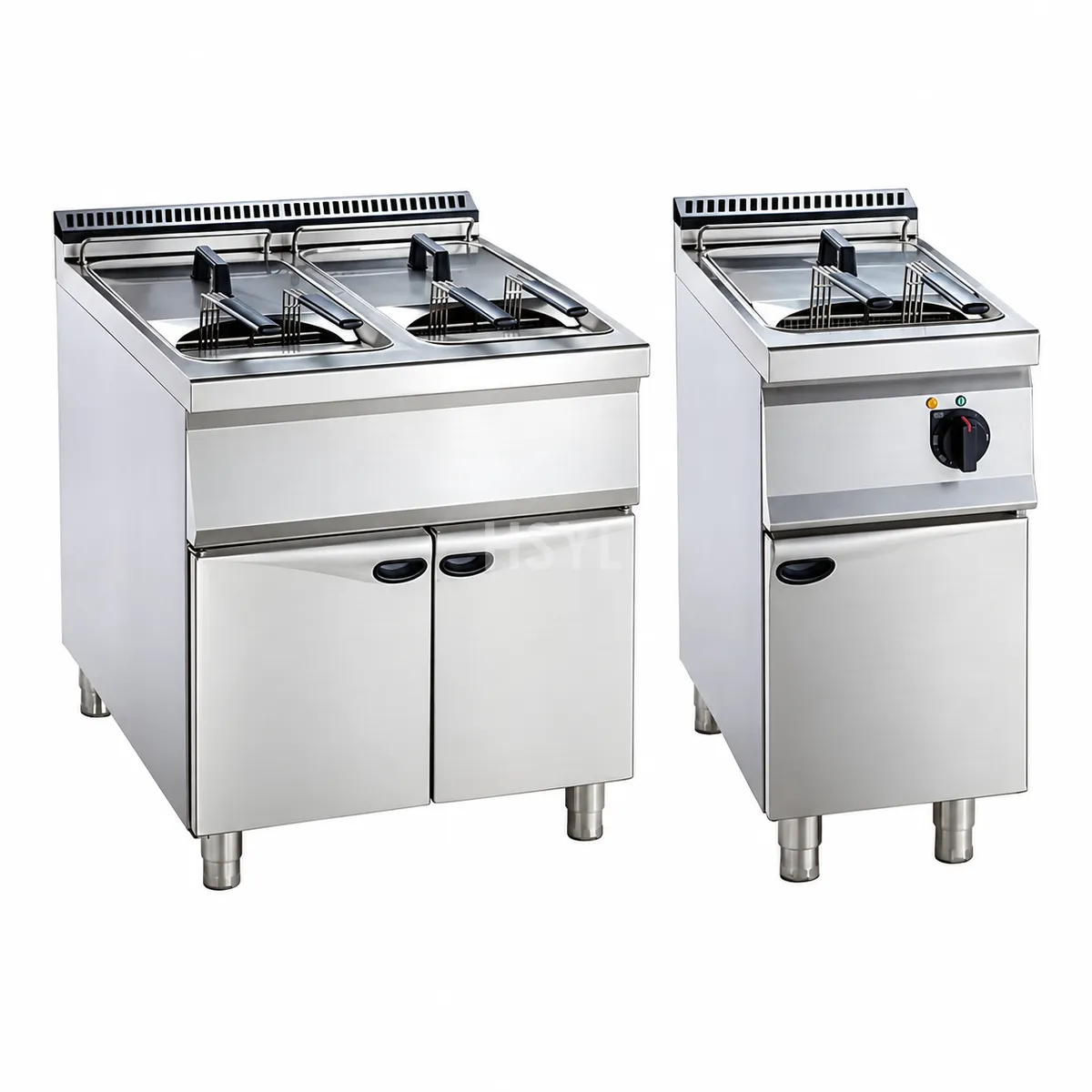

900 Series Heavy-Duty 28L & 56L Floor-Standing Gas & Electric Deep Fryer
900 Series Heavy-Duty 28L & 56L Floor-Standing Gas & Electric Deep Fryer (HF9040-G/E & HF9080-G/E): B2B Engineering Overview
The 900 Series Heavy-Duty 28L & 56L Floor-Standing Gas & Electric Deep Fryer (HF9040 / HF9080) is an industrial-grade western cooking solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Crispy fried chicken, french fries, and tempura with 50% longer oil lifespan due to the deep debris-trapping cold zone. Fabricated with AISI 304 (1.5mm–2.0mm laser-fitted modular worktop) with heavy-duty cast-iron grates, a36 griddle plates, or SUS304 deep tanks, it delivers verified operational output (HF9040: 400×900×930mm (28L, 22kW/18kW) | HF9080: 800×900×930mm (28L×2, 44kW/36kW)) under 380V–415V / 3Ph / 50–60Hz or Regulated Gas (LPG/NG) supply and complies with IEC 60335-2-36 / IEC 60335-2-37 / EN 203-1 (Commercial Gas & Electric Cooking), NSF/ANSI 4, CE, SASO.
Modular Cookline Integration & Heavy-Duty Thermal Engineering
- Precision-Aligned Modular Depth & 1.5mm–2.0mm AISI 304 Pressed Top (HF9040: 400×900×930mm (28L, 22kW/18kW) | HF9080: 800×900×930mm (28L×2, 44kW/36kW)): Deep-drawn worktop with marine anti-spill edges locks flush against adjacent western cookline modules, eliminating grease traps between units.
- 28L+28L High-Output V-Tank Cold Zone & Rapid-Recovery Heating: Deep cold-zone sump beneath the heat-exchange tubes / Incoloy 800 elements traps breading crumbs below 80°C without carbonizing, extending frying oil life by 35%.
- German EGO Capillary Thermostats & Italian SIT Flame-Failure Safety Valves: Maintains exact cooking temperatures (50°C–300°C) with 230°C manual-reset high-limit safety cutoffs and thermocouple gas shutoff protection.
- Front-Accessible Maintenance Manifold & Heavy-Duty Drain Ball Valves: All gas orifices (LPG/NG convertible), thermostat bulbs, and 1-inch oil/water drain valves are accessed directly from the front cabinet door. Factory baseline configuration for HF9040-G/E & HF9080-G/E: 900 Series High-Output Deep Fryer.
Peak-Hour Batch Recovery & 193.6 kWh/Equivalent Daily Operating TCO
Engineered for hotel all-day dining, steakhouses, and QSR chains, the HF9040-G/E & HF9080-G/E eliminates temperature sag during peak lunch and dinner rushes. Across an 8-hour commercial service shift (55% effective thermal duty factor), energy draw averages 193.6 kWh-equivalent/day. High-density ceramic fiber insulation around the burner/element box cuts lateral heat radiation by 28%. The deep cold zone reduces monthly cooking oil replacement costs by $180–$320 per vat. Configured specifically as a 900 Series Heavy-Duty 28L & 56L Floor-Standing Gas & Electric Deep Fryer (HF9040: 400×900×930mm (28L, 22kW/18kW) | HF9080: 800×900×930mm (28L×2, 44kW/36kW)), this unit integrates directly into standardized commercial western cooking lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification | Value |
|---|---|
| IDENTITY | |
| Model / Series Code | HF9040-G/E & HF9080-G/E |
| Equipment Designation | 900 Series Heavy-Duty 28L & 56L Floor-Standing Gas & Electric Deep Fryer (HF9040 / HF9080) |
| PERFORMANCE & ELECTRICAL | |
| Core Engineering Specs | HF9040: 400×900×930mm (28L, 22kW/18kW) | HF9080: 800×900×930mm (28L×2, 44kW/36kW) |
| Power Supply / Energy Source | 380V–415V / 3Ph / 50–60Hz or Regulated Gas (LPG/NG) |
| CONSTRUCTION & COMPLIANCE | |
| Structural Material Grade | AISI 304 (1.5mm–2.0mm laser-fitted modular worktop) with heavy-duty cast-iron grates, A36 griddle plates, or SUS304 deep tanks |
| Compliance & Design Standards | IEC 60335-2-36 / IEC 60335-2-37 / EN 203-1 (Commercial Gas & Electric Cooking), NSF/ANSI 4, CE, SASO |
| Model | Equipment Name | Energy Config | Power Rating | Cap. / Working Spec | Net Size (mm) | N.W. / G.W. |
|---|---|---|---|---|---|---|
| HF9040-G | Gas 1-Tank Floor Fryer | Gas | 15.0 kW | Single-Tank 28 L Fry Tank | 400*900*920 | 53.8kg / 82.0kg |
| HF9080-G | Gas 2-Tank Floor Fryer | Gas | 30.0 kW | Twin-Tank 28L*2 Dual Independent Fry Tanks | 800*900*920 | 99.6kg / 138.7kg |
| HF9040-E | Electric 1-Tank Floor Fryer | 380V/50Hz | 18.0 kW | Single-Tank 28 L High-Efficiency Heating Elements | 400*900*920 | 55.0kg / 84.0kg |
| HF9080-E | Electric 2-Tank Floor Fryer | 380V/50Hz | 36.0 kW | Twin-Tank 28L*2 Dual Independent Thermostats | 800*900*920 | 102kg / 142kg |
