Heavy-Duty Precision & Anti-Fingerprint Commercial Steaming Cabinet (HSYL-JG-06..480 / WZW Series): B2B Engineering Overview
The Heavy-Duty Precision & Anti-Fingerprint Commercial Steaming Cabinet (HSYL-JG / WZW Series) is an industrial-grade intelligent steamer solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Heavy-duty bent hinges, bi-directional high-temp silicone gaskets, and multi-stage automatic heat regulation for fluffy, even steaming. Fabricated with AISI 304 1.2mm pressurized inner steaming cavity, 50mm high-density polyurethane foam insulation & SUS304 rice/perforated trays, it delivers verified operational output (6/8/10/12/24/30/36/48 Trays | 9kW – 48kW | 380V Electric or Direct External Steam Dual-Mode | 1.2mm Thick Stainless Steel) under 380V–415V / 3Ph+N+PE / 50–60Hz (220V supported on 4–6 tray compact units) supply and complies with IEC 60335-2-42 / EN 203-1 (Commercial Steamers), NSF/ANSI 4, CE, SASO.
3D Saturated Steam Generation & Multi-Tray Chamber Design
- High-Efficiency SUS316L Steam Generator / Multi-Flue Finned Heat Exchanger (6/8/10/12/24/30/36/48 Trays | 9kW – 48kW | 380V Electric or Direct External Steam Dual-Mode | 1.2mm Thick Stainless Steel): Generates 100°C–105°C pressurized saturated steam within 3.5 minutes, cooking 50–250 kg of rice, dim sum, fish, or banquet meats in 35–40 minutes.
- 50mm Monoblock Polyurethane Insulation & Automotive EPDM Door Gasket: Locks thermal energy inside the cavity with zero steam leakage around the perimeter, keeping outer door temperatures below 48°C.
- Automatic Solenoid Water Fill, Floatless Level Probe & Dry-Burn Cutoff: Continuously monitors water reservoir depth and automatically cuts heating power with an audible alarm if water supply is interrupted.
- Independent Compartment / IoT / Precision Low-Temp Steaming Control: Supports precise timing and temperature curves (including 65°C–85°C delicate sea-cucumber rehydration on HS-01 or multi-door independent steaming on DC04). Factory baseline configuration for HSYL-JG-06..480 / WZW Series: Precision Heavy-Duty Automatic Steaming Cabinet.
Rapid 3-Minute Steam Generation & 29.7 kWh-Eq/Day Batch TCO
In high-volume canteen and catering operations, steaming cabinet insulation and heat-exchanger geometry dictate utility bills. The HSYL-JG-06..480 / WZW Series achieves 94%+ thermal transfer efficiency, reducing batch steaming energy consumption to approximately 29.7 kWh-equivalent per 6-hour production day—saving 32% compared to uninsulated legacy steamers. Weekly bottom-valve blowdown and descaling keep heating elements operating at peak efficiency for over 8 years. Configured specifically as a Heavy-Duty Precision & Anti-Fingerprint Commercial Steaming Cabinet (6/8/10/12/24/30/36/48 Trays | 9kW – 48kW | 380V Electric or Direct External Steam Dual-Mode | 1.2mm Thick Stainless Steel), this unit integrates directly into standardized commercial intelligent steamer lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HSYL-JG-06..480 / WZW Series |
| Equipment Designation | Heavy-Duty Precision & Anti-Fingerprint Commercial Steaming Cabinet (HSYL-JG / WZW Series) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | 6/8/10/12/24/30/36/48 Trays | 9kW – 48kW | 380V Electric or Direct External Steam Dual-Mode | 1.2mm Thick Stainless Steel |
| Power Supply / Energy Source | 380V–415V / 3Ph+N+PE / 50–60Hz (220V supported on 4–6 tray compact units) |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | AISI 304 1.2mm pressurized inner steaming cavity, 50mm high-density polyurethane foam insulation & SUS304 rice/perforated trays |
| Compliance & Design Standards | IEC 60335-2-42 / EN 203-1 (Commercial Steamers), NSF/ANSI 4, CE, SASO |
Sub-SKU Configuration Matrix (HSYL-JG-06 / 08 / 10 / 12):
| Model | Tray Count | Dimensions (mm) | Heating Power | Voltage Spec | Water Fill / Tray Size | Net Weight |
|---|
| HSYL-80 | 8 TraysPrecision Model | 720*640*1200 | 9.0 kW | 220V / 380V | 400*600*50mm / DN15 | 37 kg |
| HSYL-100 | 10 TraysPrecision Model | 720*640*1350 | 12.0 kW | 380V 3-Phase | 400*600*50mm / DN15 | 41 kg |
| HSYL-120 | 12 TraysPrecision Model | 720*640*1550 | 12.0 kW | 380V 3-Phase | 400*600*50mm / DN15 | 44 kg |
| HSYL-120 (Upright) | 12 TraysPrecision Upright | 520*800*1550 | 12.0 kW | 380V 3-Phase | 400*600*50mm / DN15 | 47 kg |
| HSYL-240 | 24 TraysPrecision Model | 1430*640*1550 | 12.0 kW * 2 | 380V 3-Phase | 400*600*50mm / DN15 | 82 kg |
| HSYL-240 (Upright) | 24 TraysPrecision Upright | 1020*800*1550 | 12.0 kW * 2 | 380V 3-Phase | 400*600*50mm / DN15 | 85 kg |
| HSYL-300 (Upright) | 30 TraysPrecision Upright | 1020*800*1760 | 15.0 kW * 2 | 380V 3-Phase | 400*600*50mm / DN15 | 120 kg |
| HSYL-360 (Upright) | 36 TraysPrecision Upright | 1540*800*1550 | 12.0 kW * 3 | 380V 3-Phase | 400*600*50mm / DN15 | 133 kg |
| HSYL-480 | 48 TraysPrecision 4-Door | 1430*950*1550 | 12.0 kW * 4 | 380V 3-Phase | 400*600*50mm / DN15 | 194 kg |
Sub-SKU Configuration Matrix (HSYL-WZW-08 / 10 / 12 / 24):
| Model | Tray Count | Dimensions (mm) | Heating Power | Voltage | Tray Spec | Net Weight |
|---|
| HSYL-60 | 6 TraysLuxury Model | 720*640*1000 | 9.0 kW | 220V / 380V | 400*600*50mm (SUS304) | 35 kg |
| HSYL-80 | 8 TraysLuxury Model | 720*640*1200 | 9.0 kW | 220V / 380V | 400*600*50mm (SUS304) | 40 kg |
| HSYL-100 | 10 TraysLuxury Model | 720*640*1350 | 12.0 kW | 380V 3-Phase | 400*600*50mm (SUS304) | 45 kg |
| HSYL-120 | 12 TraysLuxury Model | 720*640*1550 | 12.0 kW | 380V 3-Phase | 400*600*50mm (SUS304) | 48 kg |
| HSYL-240 | 24 TraysLuxury 2-Door | 1430*640*1550 | 12.0 kW * 2 | 380V 3-Phase | 400*600*50mm (SUS304) | 88 kg |
| HSYL-240 (Upright) | 24 TraysLuxury Upright | 1020*800*1550 | 12.0 kW * 2 | 380V 3-Phase | 400*600*50mm (SUS304) | 105 kg |
Sub-SKU Configuration Matrix (HSYL-PM-06 / 08 / 10 / 12):
| Model | Tray Count | Dimensions (mm) | Heating Power | Voltage Spec | Water / Steam Connection | Net Weight |
|---|
| HSYL-60 | 6 Trays | 720*640*1000 | 9.0 kW | 220V / 380V | DN15mm / ≤0.02MPa | 32 kg |
| HSYL-80 | 8 Trays | 720*640*1200 | 9.0 kW | 220V / 380V | DN15mm / ≤0.02MPa | 37 kg |
| HSYL-100 | 10 Trays | 720*640*1350 | 12.0 kW | 380V 3-Phase | DN15mm / ≤0.02MPa | 42 kg |
| HSYL-120 | 12 Trays (Horizontal) | 720*640*1550 | 12.0 kW | 380V 3-Phase | DN15mm / ≤0.02MPa | 44 kg |
| HSYL-120 (Upright) | 12 Trays (1-Door Upright) | 520*800*1550 | 12.0 kW | 380V 3-Phase | DN15mm / ≤0.02MPa | 55 kg |
| HSYL-240 | 24 Trays (2-Door Horizontal) | 1430*640*1550 | 12.0 kW * 2 | 380V 3-Phase | DN15mm / ≤0.02MPa | 84 kg |
| HSYL-240 (Upright) | 24 Trays (2-Door Upright) | 1020*800*1550 | 12.0 kW * 2 | 380V 3-Phase | DN15mm / ≤0.02MPa | 100 kg |
| HSYL-360 (Upright) | 36 Trays (3-Door Upright) | 1540*800*1550 | 12.0 kW * 3 | 380V 3-Phase | DN15mm / ≤0.02MPa | 148 kg |

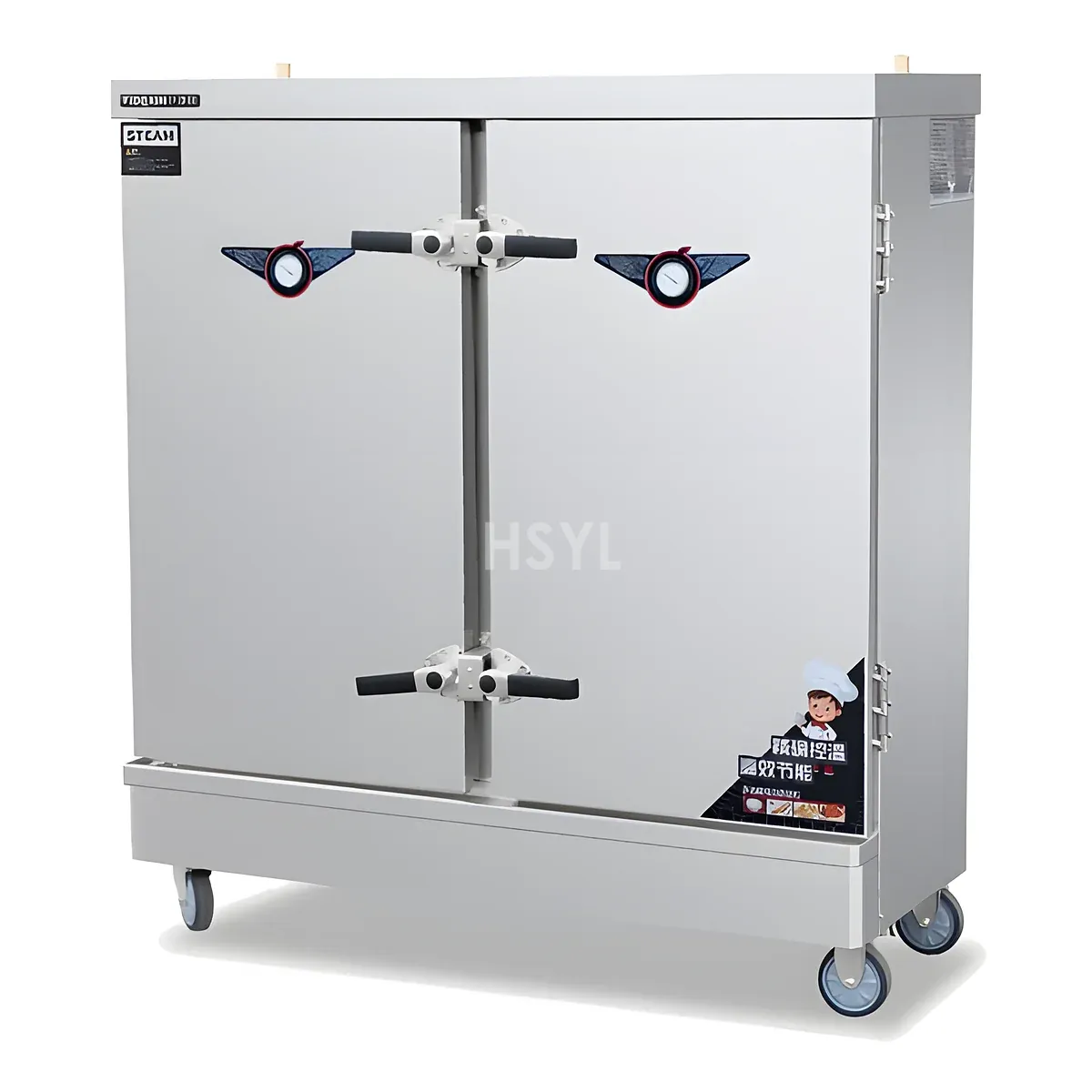

Anti-Fingerprint Commercial Steaming Cabinet
