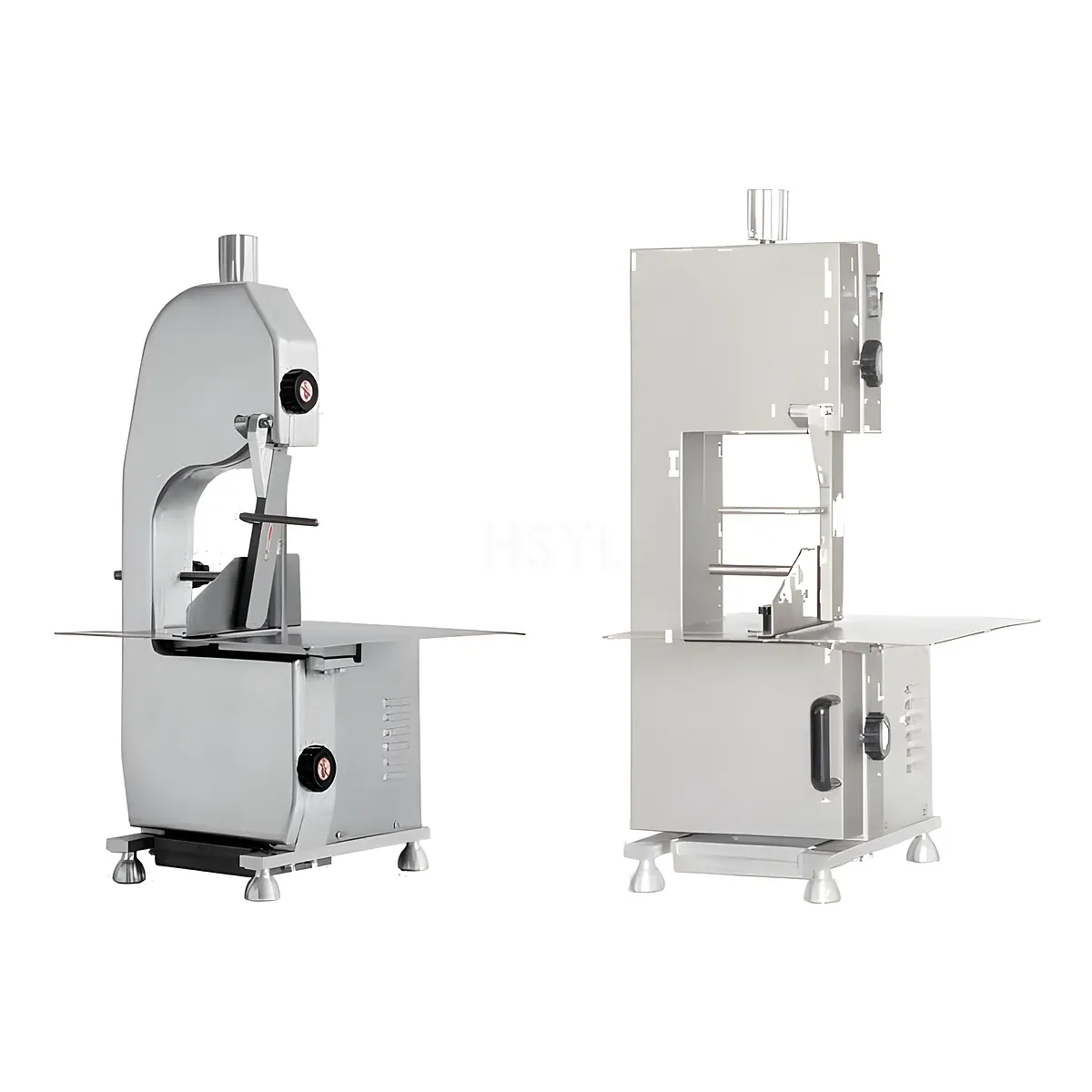

Commercial Vertical Meat & Bone Saw Machine
Commercial Vertical Meat & Bone Saw Machine (HLS-1650 / 1900 / 2020 / 2400): B2B Engineering Overview
The Commercial Vertical Meat & Bone Saw Machine (HLS-1650 / 1900 / 2020 / 2400 Series) is an industrial-grade food processing solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Cuts through frozen bone-in beef, lamb chops, frozen tuna, and pork ribs with laser precision. Safety guard and blade tension knob included. Fabricated with AISI 304 stainless steel sliding butcher table, thickness gauge plate & imported swedish/german high-carbon alloy saw band, it delivers verified operational output (Saw Blade Length 1660/1908/2020/2400mm | 750W / 1.5kW / 2.2kW | 230V/380V | Full Stainless Steel or Anodized Aluminum-Magnesium Alloy Body) under 220V–240V / 1Ph or 380V–415V / 3Ph / 50–60Hz supply and complies with EN 12268 (Food Processing Machinery — Band Saw Machines Safety), IEC 60335-2-64, NSF/ANSI 8, CE.
High-Speed Band Saw Tensioning & EN 12268 Butcher Safety Architecture
- High-Torque Copper Motor & 15 m/s Linear Saw Blade Velocity (Saw Blade Length 1660/1908/2020/2400mm | 750W / 1.5kW / 2.2kW | 230V/380V | Full Stainless Steel or Anodized Aluminum-Magnesium Alloy Body): Slices cleanly through -18°C deep-frozen beef ribs, lamb carcasses, poultry, and fish blocks without bone splintering or meat smearing.
- Precision Spring-Loaded Blade Tensioner & Tungsten-Carbide Guides: Maintains optimal band tension across 1650mm to 2400mm saw blades, reducing kerf loss (meat sawdust waste) to under 1.2mm per cut.
- EN 12268 Dual Door Micro-Switch Interlocks & 0.8s Motor Brake: Opening either the upper or lower pulley housing door immediately cuts motor power, while the ergonomic safety meat pusher keeps operator hands away from the blade.
- Graduated AISI 304 Sliding Feed Table & Removable Scrap Drawer: Ball-bearing sliding table with millimeter-locked thickness fence ensures identical steak, chop, and osso buco portion weights. Factory baseline configuration for HLS-1650 / 1900 / 2020 / 2400: Commercial Vertical Bone Saw Machine.
Frozen Bone-In Meat Cutting Yield & 4.1 kWh/Day Butchery TCO
In halal butcheries, supermarket meat rooms, and hotel commissaries, bone-saw kerf thickness directly impacts meat margin. Using precision 0.5mm-thick imported saw bands, the HLS-1650 / 1900 / 2020 / 2400 reduces bone-paste waste by 35% compared to manual cleavers while processing 250–600 kg/h at just 4.1 kWh/day (6-hour duty). Tool-free blade release and hose-down stainless surfaces cut end-of-day sanitation to 10 minutes. Configured specifically as a Commercial Vertical Meat & Bone Saw Machine (Saw Blade Length 1660/1908/2020/2400mm | 750W / 1.5kW / 2.2kW | 230V/380V | Full Stainless Steel or Anodized Aluminum-Magnesium Alloy Body), this unit integrates directly into standardized commercial food processing lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification | Value |
|---|---|
| IDENTITY | |
| Model / Series Code | HLS-1650 / 1900 / 2020 / 2400 |
| Equipment Designation | Commercial Vertical Meat & Bone Saw Machine (HLS-1650 / 1900 / 2020 / 2400 Series) |
| PERFORMANCE & ELECTRICAL | |
| Core Engineering Specs | Saw Blade Length 1660/1908/2020/2400mm | 750W / 1.5kW / 2.2kW | 230V/380V | Full Stainless Steel or Anodized Aluminum-Magnesium Alloy Body |
| Power Supply / Energy Source | 220V–240V / 1Ph or 380V–415V / 3Ph / 50–60Hz |
| CONSTRUCTION & COMPLIANCE | |
| Structural Material Grade | AISI 304 stainless steel sliding butcher table, thickness gauge plate & imported Swedish/German high-carbon alloy saw band |
| Compliance & Design Standards | EN 12268 (Food Processing Machinery — Band Saw Machines Safety), IEC 60335-2-64, NSF/ANSI 8, CE |
| Model | Body Material | Voltage / Power | Pulley Diameter | Saw Blade Length | Packing Size (mm) | N.W. / G.W. |
|---|---|---|---|---|---|---|
| HLS-1650A | Anodized Aluminum-Magnesium Alloy | 230V/50Hz or 110V/60Hz (750W) | Φ211 mm | 1660 mm | 545*520*990 | 39.0kg / 52.8kg |
| HLS-1650 | All Stainless Steel | 230V/50Hz or 110V/60Hz (750W) | Φ211 mm | 1660 mm | 545*520*990 | 41.6kg / 55.0kg |
| HLS-1900A | Anodized Aluminum-Magnesium Alloy | 230V/50Hz or 110V/60Hz (750W) | Φ230 mm | 1908 mm | 646*615*1152 | 48.0kg / 65.0kg |
| HLS-1900 | All Stainless Steel | 230V/50Hz or 110V/60Hz (750W) | Φ230 mm | 1908 mm | 646*615*1152 | 56.0kg / 73.0kg |
| HLS-2020T | Heavy-Duty Countertop | 220V/60Hz (1.5 kW) | Φ250 mm | 2020 mm | 745*670*1246 | 97.0kg / 118.0kg |
| HLS-2020 | Floor-Standing on Pillar | 380V/50Hz or 230V/50Hz (1.5 kW) | Φ250 mm | 2020 mm | 745*670*1600 | 116.0kg / 145.0kg |
| HLS-2400 | Industrial All-Steel Grade | 380V/50Hz 2.2kW or 230V 1.5/2.2kW | Φ300 mm | 2400 mm | 875*820*1735 | 149.0kg / 183.0kg |
