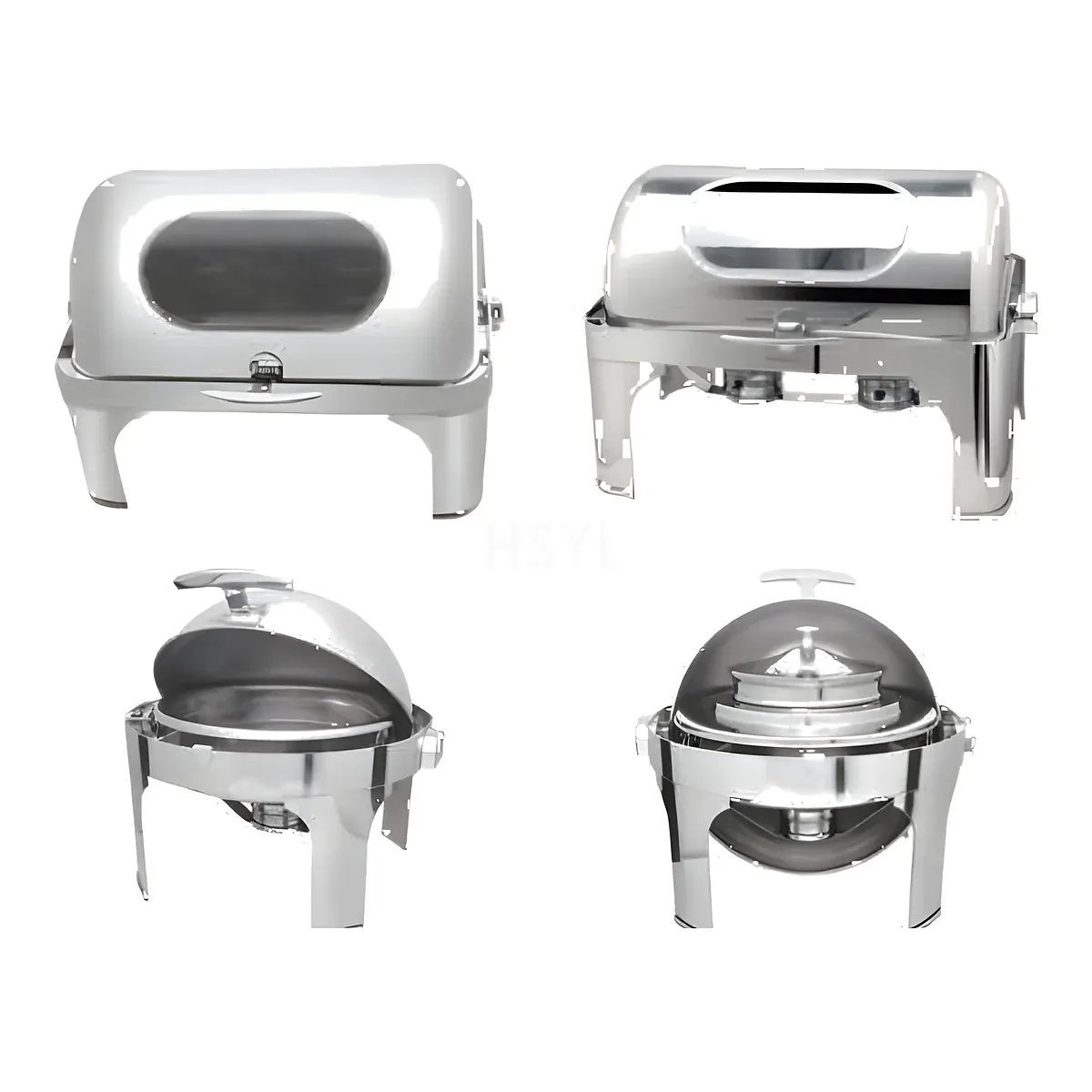

Hydraulic Glass-Lid Induction & Fuel Chafing Dish Series
Luxury Hydraulic Glass-Lid Buffet Induction & Fuel Chafing Dish Series (CHAFING-HYD (ZC201/202/203/204)): B2B Engineering Overview
The Luxury Hydraulic Glass-Lid Buffet Induction & Fuel Chafing Dish Series (ZC201 / ZC202 / ZC203) is an industrial-grade buffet equipment solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. 5-star hotel breakfast buffet standard. Soft-close hinge prevents loud clattering; viewing window lets guests see warm dishes without opening lids. Fabricated with mirror-polished 1.2mm–1.5mm AISI 304 stainless steel frame, hydraulic glass lid / 180° roll-top dome & food-grade gn water/food pans, it delivers verified operational output (ZC201(9L Rectangular): 610×450×290mm | ZC203(6L Round): 460×480×290mm | ZC204(10L Soup Warmer) | Mirror-Polished SUS304 Stainless Steel) under 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) supply and complies with IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO.
80,000-Cycle Hydraulic Damping & Induction/Fuel Buffet Design
- Silent Hydraulic Soft-Close Hinge / 180° Roll-Top Mechanism (ZC201(9L Rectangular): 610×450×290mm | ZC203(6L Round): 460×480×290mm | ZC204(10L Soup Warmer) | Mirror-Polished SUS304 Stainless Steel): Tested to 80,000+ opening cycles, allowing hotel buffet guests to lift lids effortlessly with one hand while preventing loud lid-slamming noise in 5-star dining rooms.
- Anti-Drip Vapor Return Rim & Tempered Viewing Glass Window: Channels condensed steam back into the water pan rather than dripping onto the buffet linen table, while allowing guests to view dishes without opening the lid.
- Heavy-Duty Ergonomic Hardware & Hygienic SUS304 Interior: Built with coved easy-clean corners, removable slide racks or GN pans, and heavy-duty casters/adjustable feet.
- Precision Digital/Capillary Thermostat & Over-Temp Cutoff: Maintains strict HACCP hot-holding compliance above 63°C–65°C with minimal power cycling. Factory baseline configuration for CHAFING-HYD (ZC201/202/203/204): Luxury Hydraulic Induction Chafing Dishes.
Banquet & Buffet Safe Holding (>=65°C) & 11.8 kWh/Day TCO
In hotel banquets, convention centers, and cafeteria serving lines, heat retention efficiency determines both food quality and electricity cost. Once preheated in 15–18 minutes, the CHAFING-HYD (ZC201/202/203/204) cycles at only 42% duty factor, consuming roughly 11.8 kWh/day across an 8-hour banquet or buffet service. Modular plug-in heater assemblies and heavy-duty hardware minimize maintenance expenses over a 7-to-10-year hospitality lifecycle. Configured specifically as a Luxury Hydraulic Glass-Lid Buffet Induction & Fuel Chafing Dish Series (ZC201(9L Rectangular): 610×450×290mm | ZC203(6L Round): 460×480×290mm | ZC204(10L Soup Warmer) | Mirror-Polished SUS304 Stainless Steel), this unit integrates directly into standardized commercial buffet equipment lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification | Value |
|---|---|
| IDENTITY | |
| Model / Series Code | CHAFING-HYD (ZC201/202/203/204) |
| Equipment Designation | Luxury Hydraulic Glass-Lid Buffet Induction & Fuel Chafing Dish Series (ZC201 / ZC202 / ZC203) |
| PERFORMANCE & ELECTRICAL | |
| Core Engineering Specs | ZC201(9L Rectangular): 610×450×290mm | ZC203(6L Round): 460×480×290mm | ZC204(10L Soup Warmer) | Mirror-Polished SUS304 Stainless Steel |
| Power Supply / Energy Source | 220V–240V / 1Ph / 50–60Hz (or Induction/Electric Heating Plate & Gel Fuel on Chafing Dishes) |
| CONSTRUCTION & COMPLIANCE | |
| Structural Material Grade | Mirror-polished 1.2mm–1.5mm AISI 304 stainless steel frame, hydraulic glass lid / 180° roll-top dome & food-grade GN water/food pans |
| Compliance & Design Standards | IEC 60335-2-49 (Commercial Food Holding & Buffet Warmers), NSF/ANSI 4 (Safe Hot Holding >=65°C), CE, SASO |
| Model | Shape & Window | GN Pan Slots | Material Grade | Heat Source | Hydraulic Hinge |
|---|---|---|---|---|---|
| ZC201 | Round Full-View Panoramic Tempered Glass Lid | Round Standard Chafing Pan | Premium Food-Grade SUS304 Stainless Steel | Induction Warmer / Electric Hot Plate / Chafing Fuel | Built-In Hydraulic Damping Hinge for Silent Soft-Closing |
| ZC202 | Square Full Roll-Top with Large Viewing Window | GN 1/1 Full Pan (or Dual GN 1/2 Pans) | Thickened Mirror & Brushed Stainless Steel | Induction Warmer / Built-In Electric Heating Plate | 90° Stay-Open Position with Hydraulic Soft-Close Lid |
| ZC203 | Oval Banquet Chafer | Oval Double-Wall Insulated Soup/Food Pan | One-Piece Deep-Drawn SUS304 Stainless Steel | Thermostatic Electric Water-Bath Warming | Soft-Close Anti-Pinch Damping Hinge |
| ZC204 | Square Twin-Pan Chafer | Dual GN 1/2 Divided Pans | Food-Grade Stainless Steel | Water-Bath Heating | Hydraulic Soft-Close Damping System |
