Commercial High-Speed Bowl Cutter & Food Chopper 6L / 9L / 12L / 16L (HR-6 / HR-9 / HR-12 & HV-16S): B2B Engineering Overview
The Commercial High-Speed Bowl Cutter & Food Chopper 6L / 9L / 12L / 16L (HR-9 / HV-16S) is an industrial-grade food processing solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Emulsifies meat fibers, fat, ice, and spices in seconds. Essential for sausage making, meatballs, dumpling fillings, and fine purees. Fabricated with food-grade AISI 304 stainless steel contact drums, bowls, blades & anodized corrosion-resistant alloy frame, it delivers verified operational output (HR-6/9/12: 750W–950W (1100-2800 RPM Variable Speed) | HV-16S: 380V 1.5kW/2.2kW2-Speed Rotating Bowl Chopper) under 380V–415V / 3Ph / 50–60Hz supply and complies with EN 1974 / EN 1678 / IEC 60335-2-64 (Commercial Food Preparation Machines), NSF/ANSI 8, CE.
High-Speed S-Blade Emulsifying & Rotating-Bowl Meat/Vegetable Chopping
- 1100–2800 RPM High-Speed S-Blade (HR-6/9/12) & Dual-Speed Rotating Bowl Cutter (HV-16S): Finely chops, emulsifies, and blends meat paste, fish balls, garlic, chili sauce, hummus, and herb dressings in 20–90 seconds.
- Heavy-Duty AISI 304 Bowl with Anti-Cavitation Baffle & Clear Polycarbonate/SS Lid: Top feed port allows chefs to drizzle oil or ice water while the blades are spinning.
- Brushless Variable-Speed / Dual-Speed Copper Motor with Thermal Breaker: Prevents motor overheating during dense meat-emulsion or nut-butter processing.
- Detachable Bowl & Blade Hub Assembly: Removes completely from the motor base for sink or dishwasher sanitization. Factory baseline configuration for HR-6 / HR-9 / HR-12 & HV-16S: Industrial Stainless Steel Bowl Cutter.
Commissary Labor Reduction & 4.3 kWh/Day Processing TCO
Replacing 4 to 8 manual prep cooks in central kitchens, hotpot chains, and catering commissaries, the HR-6 / HR-9 / HR-12 & HV-16S delivers uniform cut geometry while consuming only 4.3 kWh/day across a 6-hour prep shift. Industrial copper-winding motors, sealed bearings (<63 dBA), and tool-free washdown disassembly reduce daily sanitation time to under 8 minutes and deliver an ROI payback period of less than 60 days. Configured specifically as a Commercial High-Speed Bowl Cutter & Food Chopper 6L / 9L / 12L / 16L (HR-6/9/12: 750W–950W (1100-2800 RPM Variable Speed) | HV-16S: 380V 1.5kW/2.2kW2-Speed Rotating Bowl Chopper), this unit integrates directly into standardized commercial food processing lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HR-6 / HR-9 / HR-12 & HV-16S |
| Equipment Designation | Commercial High-Speed Bowl Cutter & Food Chopper 6L / 9L / 12L / 16L (HR-9 / HV-16S) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | HR-6/9/12: 750W–950W (1100-2800 RPM Variable Speed) | HV-16S: 380V 1.5kW/2.2kW2-Speed Rotating Bowl Chopper |
| Power Supply / Energy Source | 380V–415V / 3Ph / 50–60Hz |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | Food-grade AISI 304 stainless steel contact drums, bowls, blades & anodized corrosion-resistant alloy frame |
| Compliance & Design Standards | EN 1974 / EN 1678 / IEC 60335-2-64 (Commercial Food Preparation Machines), NSF/ANSI 8, CE |
Sub-SKU Configuration Matrix (BC-05 / 08 / 12 / 20):
| Model | Power Supply | Motor Power | Bowl Cap. / Speed | Throughput | N.W. / G.W. | Dimensions |
|---|
| HLQ-8 | 230V/110V 50/60Hz | 550W | Bowl Φ385mm / 18rpm | Max 4kg/Batch | 39.0kg / 41.8kg | 680*441*385 mm |
| HLQ-14 | 230V/110V 50/60Hz | 750W | Bowl Φ460mm / 17rpm | Max 7kg/Batch | 50.0kg / 65.5kg | 760*515*452 mm |
| HLQ-20 | 110V/230V 50/60Hz | 1500W | Bowl Φ635mm / 12rpm | Max 10kg/Batch | 132.4kg / 162.2kg | 899*707*926 mm |
| HLQ-20L | 230V/380V 50Hz | 1500W | Bowl Φ635mm / 12rpm | Max 10kg/Batch | 128.2kg / 157.0kg | 907*699*1025 mm |
| HMC-120B | 230V/50Hz | 1100W | Slice Thickness 3.5mm | Slicing 500kg/h / Grinding 300kg/h | 96.5kg | 718*550*903 mm |
| HMC-180B | 230V/50Hz | 1100W | Slice Thickness 3.5/5.0mm | Slicing 500kg/h / Grinding 300kg/h | 100.0kg | 726*550*903 mm |
| HMC-120D | 230V/50Hz | 1100W | Shred Thickness 3.5mm | Shredding 480kg/h / Grinding 300kg/h | 110.6kg | 718*560*903 mm |
Sub-SKU Configuration Matrix (VC-65 / 300 / 500):
| Model | Equipment Type | Voltage / Power | Speed (rpm) | Bowl Capacity | Blades / Discs | N.W. / G.W. |
|---|
| HR-6 | Vertical Food Processor | 110V/230V 50/60Hz (1800W) | 1000 - 2500 | 3.5 L | Stainless Cutter Bowl | 18.6kg / 20.6kg |
| HR-9 | Vertical Food Processor | 110V/230V 50/60Hz (1800W) | 1000 - 2500 | 4.6 L | Stainless Cutter Bowl | 20.4kg / 22.1kg |
| HR-12 | Vertical Food Processor | 230V/110V 50/60Hz (2000W) | 1000 - 2500 | 6.0 L | High-Capacity S/S Bowl | 21.8kg / 23.6kg |
| HV-16S | High-Speed Bowl Cutter | 220V/50Hz (2000W) | 1500 rpm | 16.0 L | Extra-Large Chopper Bowl | 58.0kg / 74.0kg |

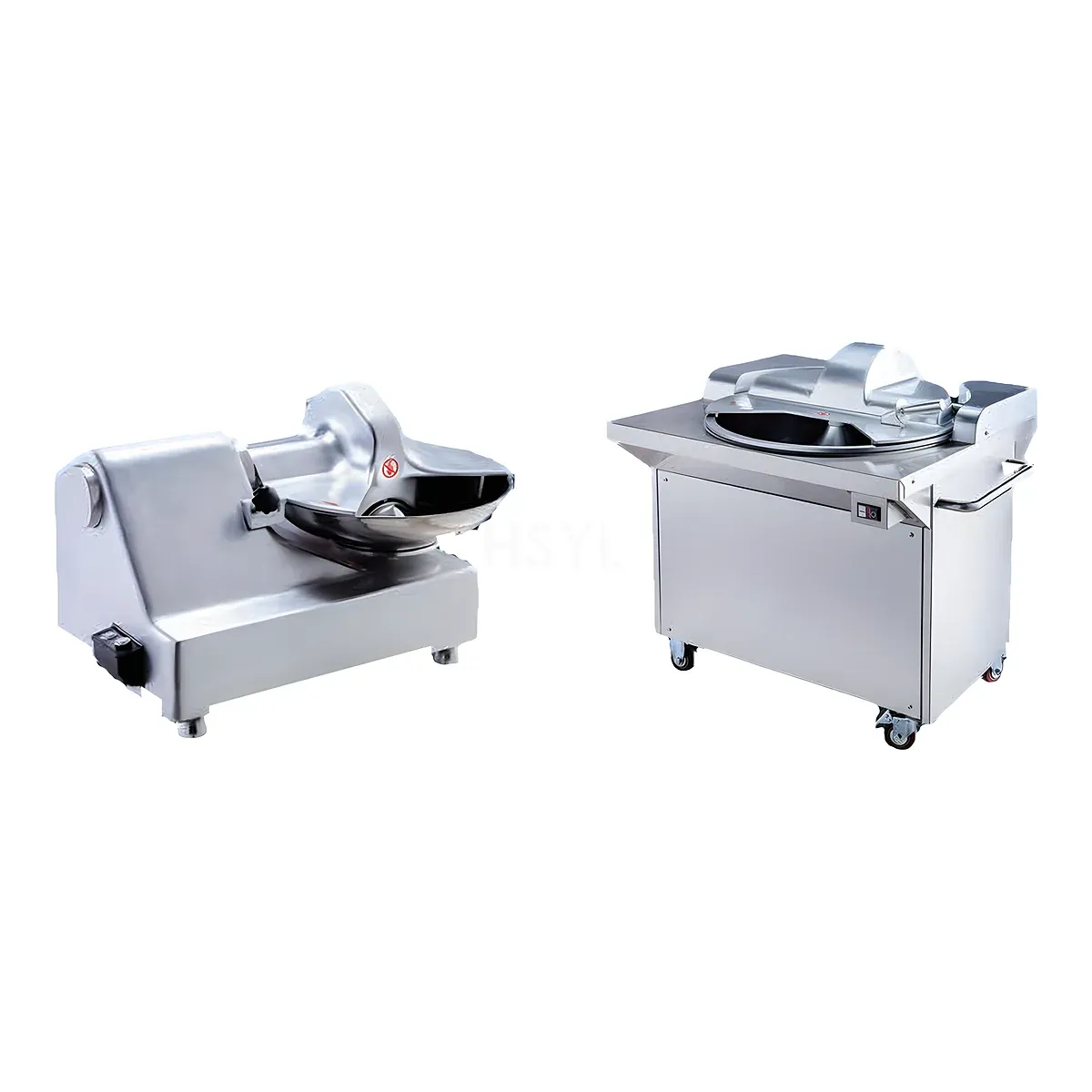

Commercial High-Speed Bowl Cutter & Food Chopper 6L / 9L / 12L / 16L
