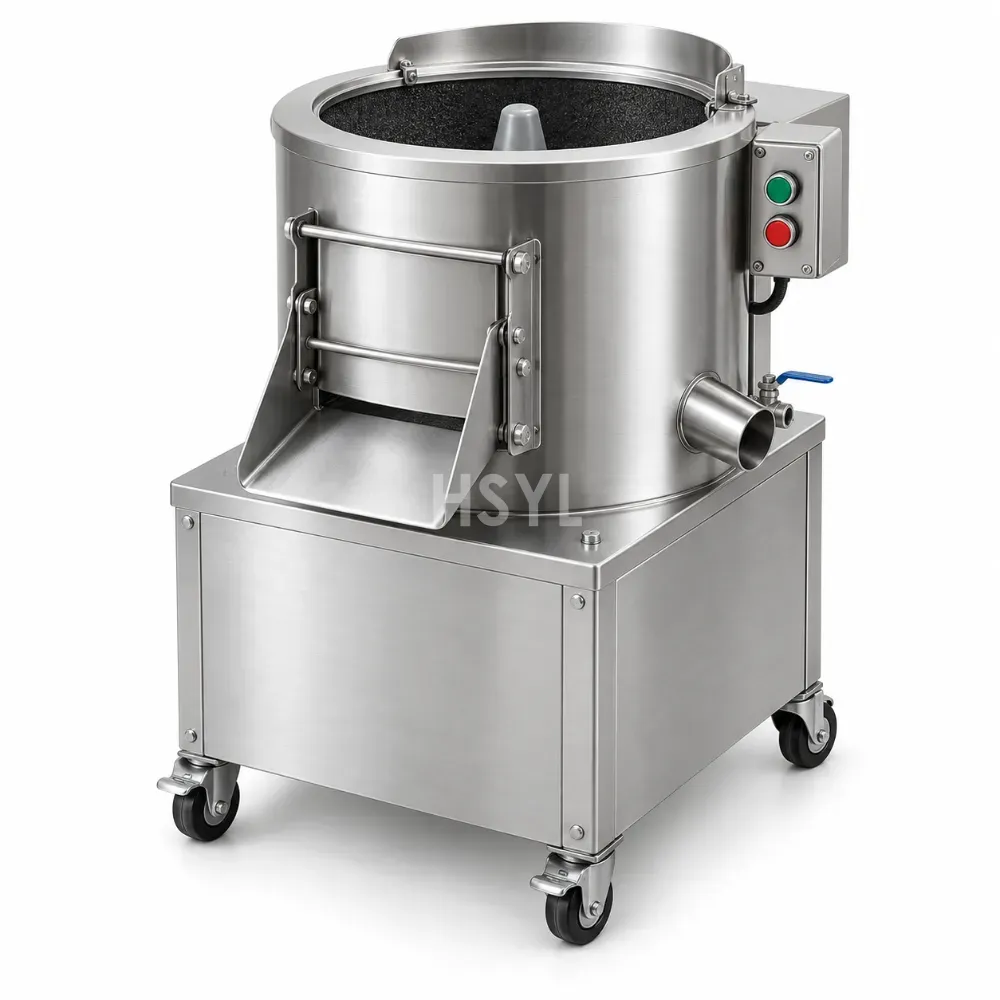

Commercial Potato Peelers
Commercial potato peeling machines engineered for restaurant kitchens, institutional canteens, catering facilities and high-volume vegetable prep rooms. HSYL potato peelers combine heavy-duty abrasive carborundum contact surfaces, continuous water-flushing manifolds and integrated peel-collection filter baskets to minimize flesh loss while delivering rapid 60 to 90-second cycle times.
Primary procurement keyword: commercial potato peeler manufacturer
Request a Project-Specific Quotation
Commercial Potato Peeler Model Lineup
HSYL provides four dedicated commercial potato and root vegetable peeler configurations scaled to production capacity and site workflow:
- YL-PP-10 Commercial Compact Potato Peeler: Sized for restaurants, bistros and small prep areas. Handles 10 kg per batch with a 60–90 second cycle time (150–250 kg/h). Powered by a 0.55 kW motor with manual hinged discharge gate and water inlet connection.
- YL-PP-15 Standard Floor-Standing Commercial Peeler: The versatile workhorse for hotel banquet kitchens and school canteens. Features a 15 kg batch capacity (250–400 kg/h), 0.75 kW high-torque gear drive, cast aluminum abrasive disc, replaceable drum liner and magnetic safety door interlock.
- YL-PP-30 Heavy-Duty High-Capacity Commercial Peeler: High-volume peeler for hospital canteens, army mess halls and central commissary prep lines. Delivers 30 kg per batch (500–800 kg/h) with a 1.5 kW motor, reinforced stainless steel cabinet, digital cycle countdown timer and stainless peel waste interceptor.
- YL-PP-1000B Continuous Brush Roller Peeling & Washing Machine: Industrial continuous peeling unit for ready-meal plants and processing factories. Operates 9 abrasive/nylon roller brushes with an internal variable-speed auger screw discharge (800–1,500 kg/h), ensuring uninterrupted flow.
Standard Engineering & Parameter Matrix
The following engineering matrix details technical specifications across HSYL commercial potato peelers. All models are manufactured with certified food-grade stainless steel casings and comply with commercial CE electrical standards.
| Model | Peeling Mechanism | Batch Load (kg) | Throughput (kg/h) | Motor Power (kW) | Peel Separation | Inquiry |
|---|---|---|---|---|---|---|
| YL-PP-10 | Centrifugal Carborundum Disc | 10 kg | 150–250 kg/h | 0.55 kW | Drain Hose + Mesh Bag | Inquire |
| YL-PP-15 | Abrasive Disc + Wall Liner | 15 kg | 250–400 kg/h | 0.75 kW | Perforated S/S Basket | Inquire |
| YL-PP-30 | Reinforced Disc + Abrasive Drum | 30 kg | 500–800 kg/h | 1.5 kW | Integrated Filter Tank | Inquire |
| YL-PP-1000B | 9 Rotary Brush Rollers + Auger | Continuous | 800–1,500 kg/h | 2.2 kW | Continuous Sump Drain | Inquire |
Potato Peeler Selection & Engineering Matrix
| Selection Factor | Engineering & Operational Verification |
|---|---|
| Tuber Variety & Skin Thickness | Calibrate cycle time (60–90 seconds) to maintain peel flesh loss under 8%; use coarse carborundum for thick-skinned storage potatoes and soft-brush rollers for delicate new potatoes and ginger. |
| Batch vs. Continuous Workflow | Deploy vertical centrifugal peelers (10–30 kg/batch) for intermittent kitchen prep; integrate horizontal continuous roller peelers for automated washing and slicing lines. |
| Plumbing & Waste Separation | Ensure dedicated cold water supply (0.1–0.3 MPa) with integrated solenoid valve; install under-cabinet peel filter baskets to prevent starch and peel waste from clogging kitchen grease traps. |
| Operational Safety | Verify dual safety microswitch interlocks on the loading lid and discharge door to ensure instant motor cutoff during inspection or unloading. |
| Maintenance & Sanitation | Select quick-release abrasive discs and hose-down washable chambers to simplify daily cleaning and allow tool-free abrasive disc replacement. |
Typical Applications
- Hotel banquet kitchens and convention centers
- University, school and corporate catering canteens
- Central kitchen root vegetable preparation rooms
- Hospital and military foodservice commissaries
- French fry and potato snack processing facilities
Engineering & Site Integration
- Position peeler adjacent to incoming vegetable washing stations and downstream inspection or cutting tables.
- Connect cold water supply via 1/2-inch flexible hose with isolation ball valve for automatic flushing during peeling cycles.
- Route peeler drain pipe directly over a floor drain or grease trap with an intermediary perforated solids basket to capture peel slurry.
- Provide dedicated single-phase or three-phase electrical supply with waterproof IP55 power disconnect switch.
Procurement Notes
- All HSYL potato peelers are built with heavy-gauge food-grade SUS304 stainless steel cabinets and passivated hardware.
- Abrasive carborundum discs and abrasive drum liners are modular wear items designed for cost-effective field replacement.
- Custom electrical voltages (110V/220V/380V/440V, 50Hz/60Hz) are engineered to project requirements.
Information Required for an Accurate RFQ
- Required batch capacity (10 kg, 15 kg, 30 kg) or peak hourly peeling requirement (kg/h).
- Target produce types (potatoes, carrots, ginger, beets, taro).
- Electrical service specifications (voltage, phase, frequency).
- Plumbing details (water supply pressure and floor drain configuration).
- Destination country, import compliance documentation and target shipping schedule.
Related HSYL Resources
Request a Technical Proposal
For commercial potato peelers and automated root preparation lines, machine sizing should match daily tuber volumes, kitchen drainage layout and operator ergonomics. Contact HSYL technical representatives with your prep requirements to receive a detailed equipment proposal and utility schedule.
