Commercial Meat Grinders
Selecting an industrial or commercial meat grinder requires evaluating raw material thermal state (fresh chilled at 0°C to +4°C vs unthawed frozen blocks down to -18°C), target mince granulation (orifice plate aperture Φ3 mm to Φ35 mm), peak throughput (120 kg/h to 6,000 kg/h), and hygiene changeover speed.
Engineered to rigorous industrial food machinery manufacturing standards, HSYL provides a comprehensive series of commercial countertop units and heavy-duty floor-standing meat grinders. Engineered with high-torque gear reducers, variable-pitch spiral augers, minimal temperature-rise cutting sets (<2°C), and full AISI 304 stainless steel construction, these machines preserve meat fiber integrity and protein structure for premium culinary and processing results.
Request a Project-Specific Quotation
Available Equipment & Model Lineup
| Equipment Name | Model / Product Code | Throughput Capacity | Drive Power | Configuration & Application Summary | Action |
|---|---|---|---|---|---|

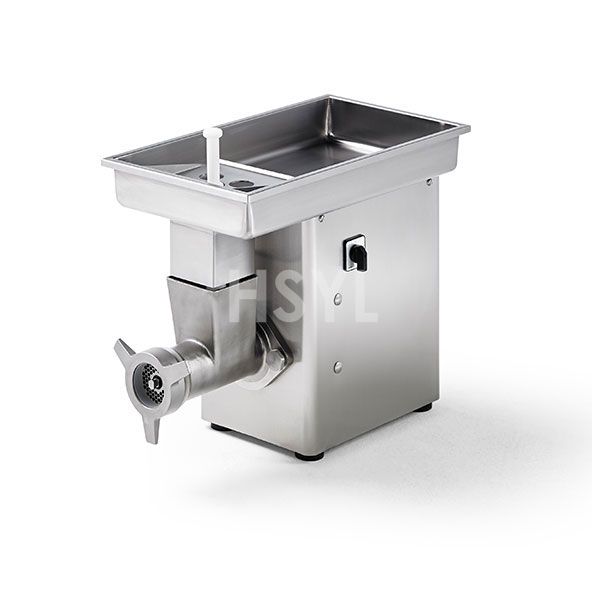

| Commercial Countertop Meat Grinder 12# | YL-MG-12 | 120 kg/h | 0.75 kW (1.0 HP) | Φ70 mm plate; 220V/1P; compact table footprint, precision worm drive, reverse switch; for boutique restaurants, deli counters, and small prep stations. | Inquire |
| Commercial Heavy-Duty Meat Grinder 22# | YL-MG-22 | 220–250 kg/h | 1.1 kW (1.5 HP) | Φ82 mm plate; 220V/1P or 380V/3P; stainless steel tray and head, oiled gear transmission; for hotel kitchens, butcher shops, and medium dining halls. | Inquire |
| Commercial High-Capacity Meat Grinder 32# | YL-MG-32 | 320–400 kg/h | 1.5–2.2 kW (2.0–3.0 HP) | Φ100 mm plate; 380V/3P (220V opt); heavy-duty motor, handles fresh boneless beef, pork, and poultry; for institutional canteens and supermarket meat rooms. | Inquire |
| Commercial Floor-Standing Frozen & Fresh Grinder 100 | YL-MG-100 | 300–500 kg/h (Frozen) / 800 kg/h (Fresh) | 5.5 kW | Φ100 mm plate; 380V/3P; directly grinds -18°C frozen meat chunks and fresh meat, 35 L safety hopper; for commissary prep rooms and large banquet kitchens. | Inquire |
| High-Capacity Commercial Frozen Meat Grinder 120 | YL-MG-120 | 800–1,500 kg/h | 7.5 kW | Φ120 mm plate; 380V/3P; integrated 60 L hopper, heavy-duty single/dual auger feed, reverse unjamming control; for central kitchens and sausage production lines. | Inquire |
| Heavy-Duty Dual-Auger Central Kitchen Grinder 130 | YL-MG-130 | 1,500–2,500 kg/h | 11 kW | Φ130 mm plate; 380V/3P; synchronized feed auger + cutting auger, 100 L hopper (Euro-bin lifter compatible); for industrial commissaries and meat patty lines. | Inquire |
| Industrial Commissary Meat Grinder 160 | YL-MG-160 | 2,000–3,500 kg/h | 18.5 kW | Φ160 mm plate; 380V/3P; handles frozen meat blocks (-12°C to -18°C), 160 L hopper with interlock guard, VFD speed control; for bulk meal packaging plants. | Inquire |
| High-Throughput Frozen Block Grinder 200 | YL-MG-200 | 3,500–6,000 kg/h | 30–37 kW | Φ200 mm plate; 380V/3P; grinds standard 25 kg frozen meat blocks without pre-breaking, automatic hydraulic cart loading interface; for mega central kitchens. | Inquire |
Standard Engineering & Parameter Matrix
| Specification Parameter | YL-MG-100 | YL-MG-120 | YL-MG-130 | YL-MG-160 | YL-MG-200 |
|---|---|---|---|---|---|
| Nominal Hourly Capacity (Fresh Meat) | 600–800 kg/h | 1,000–1,500 kg/h | 1,800–2,500 kg/h | 2,500–3,500 kg/h | 4,500–6,000 kg/h |
| Nominal Hourly Capacity (Frozen Meat -18°C) | 300–500 kg/h | 600–1,000 kg/h | 1,200–1,800 kg/h | 1,800–2,800 kg/h | 3,000–4,500 kg/h |
| Orifice Plate Diameter | Φ100 mm | Φ120 mm | Φ130 mm | Φ160 mm | Φ200 mm |
| Available Hole Plate Apertures | Φ3, 4, 6, 8, 10, 12, 16 mm | Φ3, 4.5, 6, 8, 10, 14, 20, 25 mm | Φ3, 5, 8, 10, 13, 16, 20, 30 mm | Φ3, 6, 8, 10, 14, 18, 25, 35 mm | Φ4, 6, 8, 12, 16, 20, 25, 35 mm |
| Motor Power Rating | 5.5 kW | 7.5 kW | 11.0 kW | 18.5 kW | 30.0 / 37.0 kW |
| Auger / Screw Drive System | Single variable-pitch auger | Heavy single or dual auger | Dual auger (Feed + Cutter) | Dual auger (Feed + Cutter) | Heavy-duty reinforced dual auger |
| Screw Operating Speed | 240 rpm | 220–240 rpm | 180–240 rpm (VFD optional) | 160–220 rpm (VFD optional) | 140–200 rpm (VFD equipped) |
| Applicable Meat Temperature | -18°C to +4°C | -18°C to +4°C | -18°C to +4°C | -18°C to +4°C | -18°C to +4°C (Whole block) |
| Hopper Volume | 35 L | 60 L | 100 L | 160 L | 250 L (Lifter compatible) |
| Temperature Rise During Grinding | < 2.0°C | < 2.0°C | < 1.5°C | < 1.5°C | < 1.5°C |
| Electrical Supply Standard | 380V / 3Ph / 50Hz | 380V / 3Ph / 50Hz | 380V / 3Ph / 50Hz | 380V / 3Ph / 50Hz | 380V / 3Ph / 50Hz |
| Material Specification | AISI 304 body & hopper | AISI 304 body & hopper | AISI 304 body & hopper | AISI 304 body & hopper | AISI 304 body & hopper |
| Blade & Plate Metallurgy | 9Cr18Mo / 440C hardened steel | 9Cr18Mo / 440C hardened steel | 9Cr18Mo / 440C hardened steel | 9Cr18Mo / 440C hardened steel | 9Cr18Mo / 440C hardened steel |
| Overall Dimensions (L × W × H) | 950 × 580 × 1,020 mm | 1,080 × 650 × 1,160 mm | 1,320 × 860 × 1,350 mm | 1,650 × 960 × 1,460 mm | 1,980 × 1,260 × 1,680 mm |
| Net Machine Weight | 260 kg | 420 kg | 680 kg | 980 kg | 1,550 kg |
Note: For smaller restaurant cooklines and butcher counters, compact tabletop series YL-MG-12 (0.75 kW, 27 kg), YL-MG-22 (1.1 kW, 36 kg), and YL-MG-32 (1.5–2.2 kW, 65 kg) provide dedicated 220V single-phase or 380V three-phase operation for fresh meat preparation.
Key Technical & Operational Features
- Direct Processing of Frozen Meat (-18°C): Eliminates the traditional thawing cycle for frozen pork, beef, lamb, and poultry blocks. Grinding frozen product directly prevents blood loss, preserves moisture retention, avoids microbiological contamination risks, and reduces total processing time.
- Optimized Variable-Pitch Auger Design: The feeding screw is engineered with a progressive lead angle that gently compresses raw meat forward toward the cutting plane without crushing cellular walls, holding product temperature rise strictly below 2°C to prevent fat smearing.
- Multi-Aperture Interchangeable Plates (Φ3 mm to Φ35 mm): Easily configure output texture for diverse recipes: fine plates (Φ3–5 mm) for hot dogs and sausage emulsions; medium plates (Φ6–10 mm) for dumplings, burger patties, meatloaf, and meatballs; and coarse plates (Φ12–35 mm) for pre-grinding before silent bowl cutting or for coarse stew dice.
- Bi-Directional Drive with Instant Reverse: Equipped with a forward/stop/reverse control switch. If hard sinew, cartilage, or an oversized frozen block causes resistance, operators can reverse the auger with one touch to clear the blockage immediately without disassembling the cutting barrel.
- Hygienic Tool-Free Fast-Disassembly System: The front locking collar, orifice plate, cross knives, and internal worm screw can be disassembled within 60 seconds without specialized tools, enabling 100% dead-zone-free washdown and chemical sanitization.
- Operator Safety Guarding & Interlocks: Engineered with stainless steel hopper finger-protection grids, magnetic safety limit switches (machine automatically ceases operation if the hopper lid is tilted), an oversized emergency stop button, and IP65 waterproof operator controls.
How to Select the Right Configuration
| Decision Point | What the Buyer / Engineer Should Confirm |
|---|---|
| Raw material thermal state | Specify if processing fresh chilled meat (0°C to +4°C), partially frozen meat (-4°C to -8°C), or hard frozen blocks (-12°C to -18°C). Frozen blocks require YL-MG-100 or larger with reinforced torque drives. |
| Ingredient characteristics | Identify meat species, bone content (boneless vs soft poultry carcass/cartilage), fat ratio, and connective sinew levels. |
| Target mince granulation | Select hole plate apertures: 3–5 mm for fine emulsified sausages; 6–10 mm for hamburger patties, dumplings, and meatballs; 12–35 mm for coarse grind or bowl-cutter pre-cutting. |
| Peak hourly capacity | Calculate peak batch volume in kg/hour. For continuous multi-shift production exceeding 1,500 kg/h, select dual-auger series (YL-MG-130 / YL-MG-160) to avoid operator feeding bottlenecks. |
| Loading & discharge interface | Choose manual hopper loading vs automated 200L Euro-bin lifter hoists; confirm discharge directly into GN pans, mobile totes, or downstream continuous screw conveyors. |
| Electrical utilities & environment | Verify available site voltage (380V/400V/415V/440V, 50Hz/60Hz, 3-phase). Verify washdown drainage trenching and cold room temperature maintenance (<12°C ambient). |
Typical Applications
- Central Kitchens & Commissaries: High-speed batch production of minced beef, pork, and chicken for ready-meals, boxed lunches, sauces, and stews.
- Sausage & Charcuterie Facilities: Primary reduction of chilled or frozen meat blocks before vacuum mixing or bowl cutting.
- Hamburger Patty & Meatball Processing Lines: High-uniformity granulation ensuring consistent patty texture and precise portion weights.
- Hotel Banquet Kitchens & Institutional Canteens: Daily processing of fresh meats for schools, hospitals, factory dining rooms, and banquet halls.
- Commercial Butcheries & Supermarket Meat Departments: Floor-standing or countertop on-demand mincing with rapid changeovers.
- Pet Food Manufacturing: Grinding frozen poultry carcasses, beef trimmings, and organ meats into uniform pet food slurry or kibble base.
Engineering & Site Integration
- Electrical Circuit & Inrush Protection: Heavy-duty electric motors (5.5 kW to 37 kW) generate significant starting current when shearing frozen meat. Ensure the electrical distribution panel is equipped with appropriate motor-rated D-curve circuit breakers and dedicated grounding.
- Ergonomic Material Handling: For models YL-MG-130 and above, configure an automated pneumatic or mechanical column lifter for standard 200L stainless steel Euro-bins (meat carts) to prevent operator back fatigue and maintain continuous production flow.
- Wet-Area Washdown & Drainage: Position the meat grinder adjacent to a dedicated stainless steel floor trench drain with a removable sediment basket. Equip the workstation with 40–60°C washdown water supply and sanitary hose reels.
- HACCP Cold-Room Layout: Install the meat grinder within temperature-controlled raw-prep rooms maintained at 8°C–12°C. Ensure physical separation between raw-meat grinding lines and cooked/ready-to-eat packaging zones to eliminate cross-contamination risks.
- Tool Maintenance & Sharpening Protocol: Inspect rotary cross blades and orifice plates daily. Worn cutting surfaces dramatically increase motor load, heat generation, and fat smearing. Keep pre-matched sets of sharpened knives and plates ready for shift changeovers.
Procurement & Customization Notes
- Standardized Industrial Metallurgy: All HSYL YL-MG machines are manufactured with food-grade AISI 304 stainless steel housings, hoppers, and structural chassis, with high-wear cutting components machined from precision-tempered 9Cr18Mo / 440C stainless tool steel.
- Worldwide Electrical Customization: While standard factory units operate on 380V/3Ph/50Hz, export configurations supporting 208V, 220V, 240V, 415V, 440V, or 480V at 60Hz can be factory-wired with UL/CE-certified electrical components.
- Custom Perforated Plate Configurations: Each grinder is delivered with two standard customer-selected hole plates and two rotary blades. Additional hole plates (ranging from micro-fine Φ2.5 mm up to coarse Φ35 mm kidney plates) can be specified with the order.
- Variable Frequency Inverter (VFD): Optional VFD integration enables infinite auger speed adjustment, allowing operators to fine-tune cutting speeds for soft fish fillets, high-fat pork belly, or rock-hard frozen beef chunks.
Information Required for an Accurate RFQ
- Raw meat type: species (beef, pork, lamb, poultry, fish), boneless vs bone-in, and trim fat percentage.
- Raw meat physical condition: fresh chilled (0°C to +4°C), semi-frozen, or solid frozen blocks (-18°C) with block dimensions.
- Required hourly throughput (kg/hour or metric tons/shift) and continuous duty cycle.
- Target grind size: required hole plate apertures (e.g., 4 mm, 6 mm, 8 mm, 12 mm).
- Available site electrical supply: voltage, phase, and frequency (e.g., 380V/3Ph/50Hz or 220V/3Ph/60Hz).
- Material handling preferences: manual feeding vs 200L Euro-bin lifter, and collection method (GN pan, floor trolley, or conveyor).
- Destination country, target port, and required import compliance (CE, UL, NSF sanitation documentation).
