Fully Automatic Commercial Frozen Meat Roll Slicer (HB-330G): B2B Engineering Overview
The Fully Automatic Commercial Frozen Meat Roll Slicer (HB-330G Heavy-Duty) is an industrial-grade food processing solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. Continuous hands-free automation. Operator places frozen meat logs, sets speed and slice thickness, machine produces uniform rolls at massive throughput. Fabricated with food-grade AISI 304 stainless steel contact drums, bowls, blades & anodized corrosion-resistant alloy frame, it delivers verified operational output (Slicing Speed 42-56 slices/min | Cutting Height 180mm | Slice Thickness 0.5–18mm | Dual Motors 750W+370W) under 220V–240V / 1Ph or 380V–415V / 3Ph / 50–60Hz supply and complies with EN 1974 / EN 1678 / IEC 60335-2-64 (Commercial Food Preparation Machines), NSF/ANSI 8, CE.
Dual-Motor Automatic Carriage Drive & -8°C Frozen Meat Roll Slicing
- Independent Dual-Motor System (750W Blade Drive + 370W Carriage Drive): Eliminates speed drop when slicing -4°C to -8°C tempered frozen mutton and beef rolls at 42–56 slices per minute.
- 0.5mm–18mm Precision Thickness Adjustment & 180mm Cutting Height: Produces uniform curled hotpot shabu-shabu rolls, Korean BBQ brisket slices, and carpaccio.
- Imported Φ320mm–Φ350mm Alloy Blade & Heavy-Duty Prong Meat Gripper: Locks uneven frozen meat logs securely down to the last 10mm stub to maximize yield.
- One-Button Switch Between Fully Automatic & Manual Carriage Mode: Adapts to both high-volume central commissary prep and small custom orders. Factory baseline configuration for HB-330G: Fully Automatic Commercial Slicer.
Commissary Labor Reduction & 2.2 kWh/Day Processing TCO
Replacing 4 to 8 manual prep cooks in central kitchens, hotpot chains, and catering commissaries, the HB-330G delivers uniform cut geometry while consuming only 2.2 kWh/day across a 6-hour prep shift. Industrial copper-winding motors, sealed bearings (<63 dBA), and tool-free washdown disassembly reduce daily sanitation time to under 8 minutes and deliver an ROI payback period of less than 60 days. Configured specifically as a Fully Automatic Commercial Frozen Meat Roll Slicer (Slicing Speed 42-56 slices/min | Cutting Height 180mm | Slice Thickness 0.5–18mm | Dual Motors 750W+370W), this unit integrates directly into standardized commercial food processing lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification |
Value |
| IDENTITY |
| Model / Series Code | HB-330G |
| Equipment Designation | Fully Automatic Commercial Frozen Meat Roll Slicer (HB-330G Heavy-Duty) |
| PERFORMANCE & ELECTRICAL |
| Core Engineering Specs | Slicing Speed 42-56 slices/min | Cutting Height 180mm | Slice Thickness 0.5–18mm | Dual Motors 750W+370W |
| Power Supply / Energy Source | 220V–240V / 1Ph or 380V–415V / 3Ph / 50–60Hz |
| CONSTRUCTION & COMPLIANCE |
| Structural Material Grade | Food-grade AISI 304 stainless steel contact drums, bowls, blades & anodized corrosion-resistant alloy frame |
| Compliance & Design Standards | EN 1974 / EN 1678 / IEC 60335-2-64 (Commercial Food Preparation Machines), NSF/ANSI 8, CE |
Sub-SKU Configuration Matrix (HB-320 / HB-350 / HB-350L / HB-330G):
| Model | Blade Diameter | Motor Spec | Slice Thickness | Slicing Speed | N.W. / G.W. |
|---|
| HB-320 | Φ320mm | Dual Motors 370W*2 (380V/220V) | 0 - 25 mm | 38 - 55 Slices/min | 115kg / 140kg |
| HB-350L | Φ350mm | Dual Motors 400W*2 (380V/220V) | 0 - 25 mm | 38 - 55 Slices/min | 125kg / 155kg |
Sub-SKU Configuration Matrix (SL-300B / 350B):
| Model | Blade Diameter | Motor Power | Slice Thickness | Working Stroke | Net Weight |
|---|
| HBS-300G | Φ300mm | 370W / 230V | 0 - 16 mm | 260 mm | 38.0 kg |
| HBS-330G | Φ330mm | 370W / 230V | 0 - 16 mm | 280 mm | 41.5 kg |

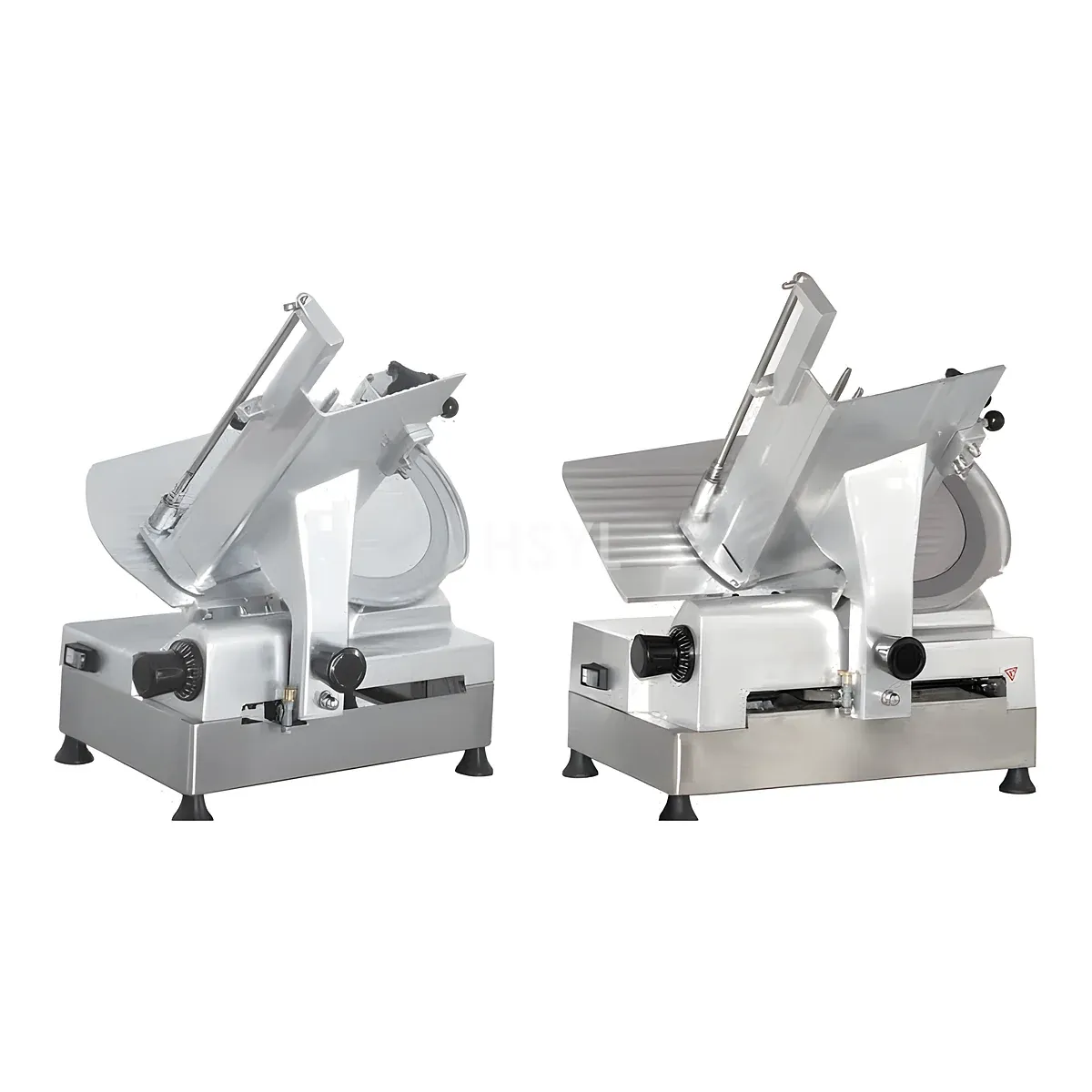

Fully Automatic Commercial Frozen Meat Roll Slicer
