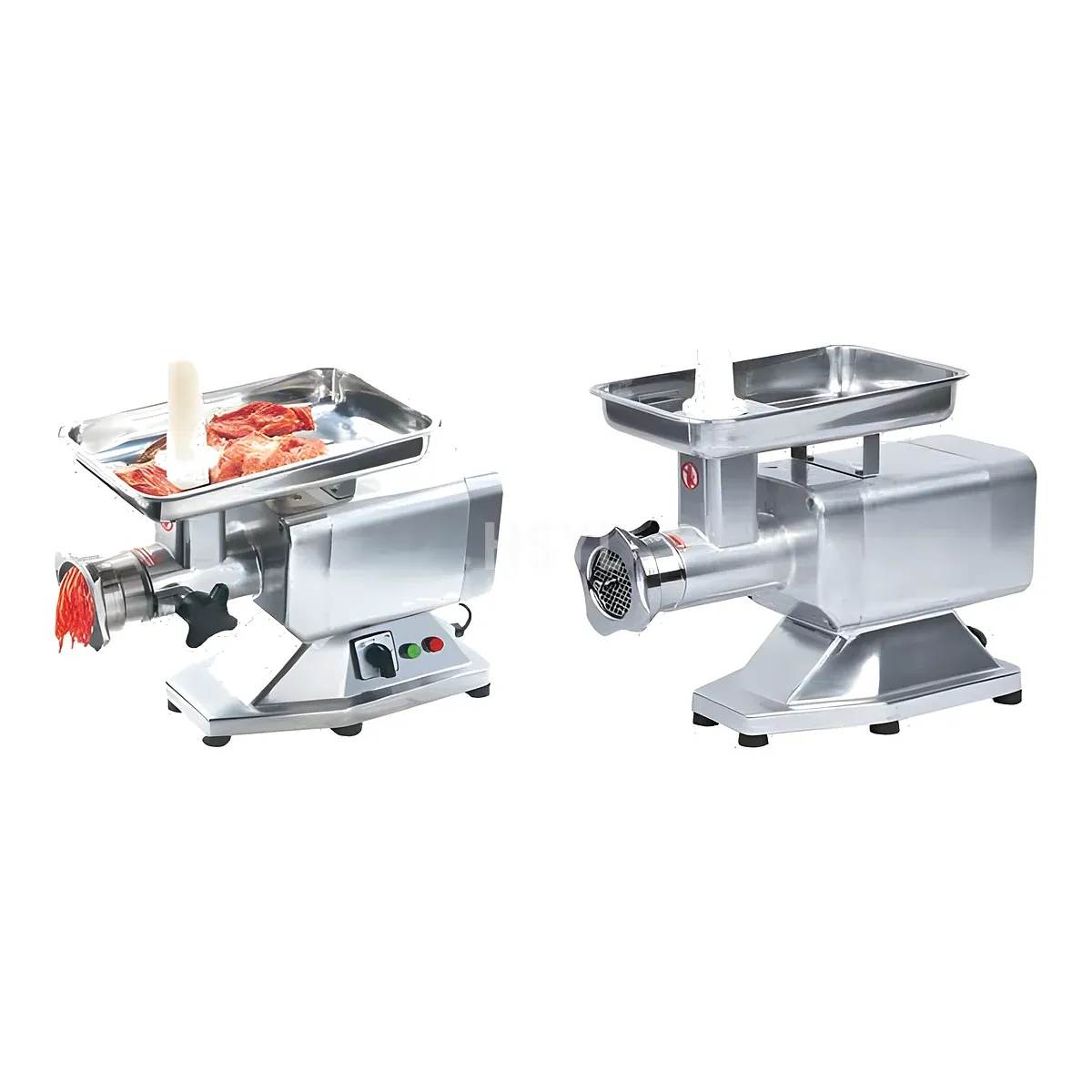

Heavy-Duty Gear-Driven Commercial Meat Grinder 150–450 kg/h
Heavy-Duty Gear-Driven Commercial Meat Grinder 150–450 kg/h (HM-12 / 22 / 22A / 22B / 32Z): B2B Engineering Overview
The Heavy-Duty Gear-Driven Commercial Meat Grinder 150–450 kg/h (HM-12 / HM-22 / HM-32Z) is an industrial-grade food processing solution engineered for high-throughput hotels, central kitchens, and institutional catering across the Middle East (GCC) and Southeast Asia. All-gear transmission bathed in lubricant, no belt slip or maintenance needed. Effortlessly processes tough meat cuts, gristle, and small cartilage. Fabricated with precision-cast AISI 304 stainless steel mincing head, spiral feed worm, locking ring & imported tool-steel knife/orifice plates, it delivers verified operational output (HM-12 (850W, 150kg/h) | HM-22 (1.1kW, 250kg/h) | HM-32Z (2.2kW, 450kg/h) | 220V/380V) under 220V–240V / 1Ph or 380V–415V / 3Ph / 50–60Hz supply and complies with EN 12331 (Food Processing Machinery — Mincing Machines Safety), IEC 60335-2-64, NSF/ANSI 8, HACCP, CE.
Helical Gear-Driven Mincing Architecture
- High-Torque Oil-Bath Helical Gear Reducer (HM-12 (850W, 150kg/h) | HM-22 (1.1kW, 250kg/h) | HM-32Z (2.2kW, 450kg/h) | 220V/380V): Delivers massive low-RPM torque to grind 150–450 kg/h of fresh beef, lamb, poultry, and fish without mashing meat fibers or separating fat.
- Precision Rifled AISI 304 Mincing Cylinder & Forward/Reverse Switch: Internal rifling flutes guide sinew and meat smoothly into the Unger/Enterprise cutting set, while instant reverse rotation clears tough gristle in 2 seconds.
- Interchangeable Φ6mm / Φ8mm / Φ10mm Hardened Alloy Orifice Plates: Self-sharpening 4-wing stainless steel cross blades mate flush against precision-ground orifice discs for clean shearing.
- 60-Second Tool-Free Mincing Head Disassembly: Unscrewing the single knurled locking ring releases the auger, blade, and plate for thorough hot-water washdown. Factory baseline configuration for HM-12 / 22 / 22A / 22B / 32Z: Heavy-Duty Commercial Meat Grinder.
150–550 kg/h Meat Mincing Throughput & 3.3 kWh/Day HACCP TCO
In burger commissaries, kebab kitchens, and supermarket butcheries across GCC and Southeast Asia, meat grinding speed and temperature control protect food safety. Operating at 3.3 kWh/day (6-hour duty), the HM-12 / 22 / 22A / 22B / 32Z processes up to 450 kg/h with whisper-quiet (<62 dBA) oil-bath gear operation. Configured specifically as a Heavy-Duty Gear-Driven Commercial Meat Grinder 150–450 kg/h (HM-12 (850W, 150kg/h) | HM-22 (1.1kW, 250kg/h) | HM-32Z (2.2kW, 450kg/h) | 220V/380V), this unit integrates directly into standardized commercial food processing lines with full factory spare-parts traceability.
Technical Specification Sheet & Sub-SKU Matrix
| Specification | Value |
|---|---|
| IDENTITY | |
| Model / Series Code | HM-12 / 22 / 22A / 22B / 32Z |
| Equipment Designation | Heavy-Duty Gear-Driven Commercial Meat Grinder 150–450 kg/h (HM-12 / HM-22 / HM-32Z) |
| PERFORMANCE & ELECTRICAL | |
| Core Engineering Specs | HM-12 (850W, 150kg/h) | HM-22 (1.1kW, 250kg/h) | HM-32Z (2.2kW, 450kg/h) | 220V/380V |
| Power Supply / Energy Source | 220V–240V / 1Ph or 380V–415V / 3Ph / 50–60Hz |
| CONSTRUCTION & COMPLIANCE | |
| Structural Material Grade | Precision-cast AISI 304 stainless steel mincing head, spiral feed worm, locking ring & imported tool-steel knife/orifice plates |
| Compliance & Design Standards | EN 12331 (Food Processing Machinery — Mincing Machines Safety), IEC 60335-2-64, NSF/ANSI 8, HACCP, CE |
| Model | Power Supply / Wattage | Grinding Plate Holes | Dimensions (mm) | Packing Size (mm) | N.W. / G.W. |
|---|---|---|---|---|---|
| HM-12 | 110V/60Hz or 230V/50Hz (850W) | Std Φ4.5 / Φ8mm Plates (3–14mm Optional) | 472*220*377 | 602*270*470 | 20.8kg / 22.6kg |
| HM-22 | 110V/60Hz or 230V/50Hz (1100W) | Std Φ4.5 / Φ8mm Plates (3–14mm Optional) | 493*220*397 | 602*270*470 | 23.2kg / 24.8kg |
| HM-22A (5-Blade Set) | 110V/230V/380V (1100W) | 5-Blade Fine Grind System | 529*220*397 | 602*270*470 | 24.1kg / 25.6kg |
| HM-22B (3-Blade Set) | 110V/230V/380V (1100W) | 3-Blade Pre-Cut System | 503*220*397 | 602*270*470 | 23.0kg / 25.2kg |
| HM-32Z | 220-240V 50/60Hz (1250W) | High-Flow Bare Unit Quick-Insert | 590*250*410 | 711*306*417 | 27.2kg / 29.3kg |
