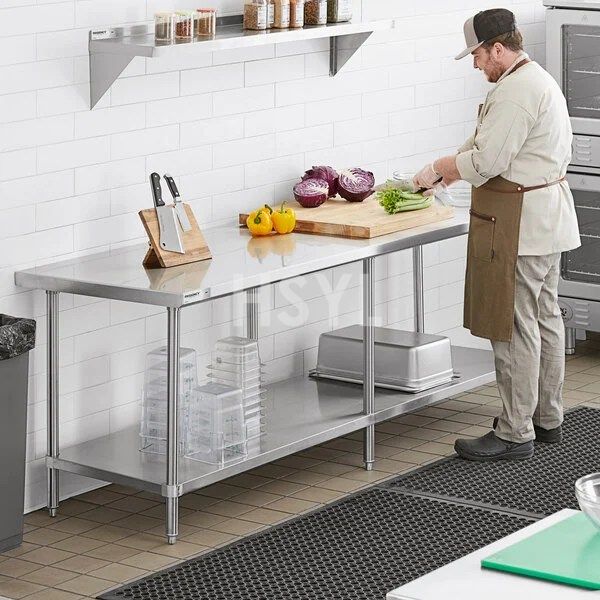

Custom Stainless Steel Work Table
HSYL custom stainless steel work tables are engineered to solve complex architectural limitations and optimize operational flow in commercial kitchens, hotel resorts, central production commissaries, and specialty food processing plants. Operating as an OEM/ODM commercial stainless fabricator, HSYL builds each table to your consultant CAD drawings, floor plans, and equipment schedules—incorporating structural column cutouts, seamless welded sink basins, integrated scrap chutes, power raceways, and custom angles that standard catalog tables cannot accommodate.
Quick Selection Summary
| Core Materials | Certified SUS 304 food-grade stainless steel or SUS 316 for high-acid/marine applications |
|---|---|
| Material Thickness | 12 Gauge (2.5 mm) ultra-heavy / 14 Gauge (2.0 mm) industrial / 16 Gauge (1.5 mm) commercial standard |
| Architectural Fit | Precision CNC laser cutouts for structural building columns, wall offsets, and conduit risers |
| Integrated Features | Seamlessly welded prep sinks, scrap drop chutes, electric wire chases, and overshelf mounts |
| Custom Dimensions | Any length up to 16 feet (4800 mm) continuous; custom depths from 18" to 60" (450 mm to 1500 mm) |
| Edge Geometry | 1.5" bullnose roll edge, square sanitary edge, marine drip-stop rim, or custom chamfer |
| Backsplash Customization | Rear and wrap-around side splashes up to 18" high with angled or box wall returns |
| Manufacturing Process | CNC laser cutting, hydraulic CNC press brake bending, TIG welding, blended #4 satin finish |
Engineering Construction & Mechanism Evidence
HSYL custom stainless steel work table units are constructed with commercial-grade fabrication standards designed for longevity, hygiene, and operator safety:
- CNC Precision Laser Cutouts for Architectural Column Notches: Commercial building support columns often force dead space in kitchen lines. HSYL laser-cuts exact notches and corner returns directly into the tabletop and frame based on your field dimensions, allowing the worktable to wrap seamlessly around structural concrete columns and maximize usable floor area.
- Seamless TIG-Welded Sink & Scrap Chute Integration: Instead of bolted drop-in sinks with dirty silicone seams, HSYL seamlessly welds deep-drawn or fabricated sink bowls and trash drop chutes directly into the worktop. The weld is ground and blended to match the #4 satin finish, creating a single continuous hygienic surface.
- Integrated Electric Conduit & Plumbing Utility Chases: We can fabricate recessed stainless raceways, grommeted wire chases, and raised utility shelves directly into the backsplash or understructure, keeping power cords and water lines off prep surfaces.
- Engineered Load Reinforcements for Heavy Machinery: For tables carrying heavy commercial slicers, dough dividers, or vacuum sealers, we engineer heavy 12 or 14-gauge longitudinal channel substructures with 2-inch tubular legs and oversized gussets.
Custom Fabrication Capability & Engineering Scope Matrix
Use the matrix below to identify the optimal configuration for your operational demands:
| Custom Feature Category | Fabrication Options Available | Engineering Benefit | Typical Kitchen Application |
|---|---|---|---|
| Architectural Adaptation | Building column notches, angled corners, U-shaped wraps. | Eliminates dead space behind pillars. | Historic hotel retrofits, tight galley kitchens. |
| Integrated Sanitation | Seamless welded prep sinks, scrap chutes, drawer stacks. | Zero silicone dirt traps; all-in-one prep. | Salad prep lines, vegetable cleaning stations. |
| Utility Integration | Water faucet punch-outs, electrical chase boxes. | Clean wire routing; eliminates extension cords. | Cook lines, equipment assembly stations. |
| Extreme Load Rating | 12 Gauge tops, dual hat channels, 2" square tubing. | Supports machinery up to 1,500 lbs. | Industrial bakeries, commissary meat fabrication. |
Operational Applications & Site Limitations
Recommended Environments
- Irregular Kitchen Floorplans: Non-standard room dimensions and historic building renovations with angled walls or support pillars.
- High-Volume High-Specialization Stations: Combined prep tables with integrated cutting boards, wash sinks, scrap chutes, and knife holders.
- Consultant-Specified Institutional Projects: Hospital dietary departments and university cafeterias requiring custom NSF fabrication.
Site Limitations & Application Exclusions (Not Suitable For)
- Low-Budget Temporary Pop-Ups: For temporary food kiosks or standard 48" dry prep where standard catalog tables suffice, our standard work table offers lower lead time and lower tooling cost.
- Immediate Same-Day Dispatch: Custom fabricated tables require engineering CAD drawing sign-off and 2 to 4 weeks production lead time.
Sanitation, Food Safety & Maintenance Guidelines
HSYL equipment is engineered to meet strict international health department inspections and HACCP hygiene standards:
- Blended Weld Maintenance: All custom welds are ground to a sanitary #4 satin finish; clean with neutral detergent following grain polish lines.
- Passivation of Welded Seams: Factory acid passivation treatment restores the protective chromium oxide layer across all weld zones.
- Scrap Chute Hygiene: Sanitize circular scrap chutes and under-table trash collars daily with commercial food-contact sanitizer.
B2B Project Quotation Checklist & Custom Options
To receive an accurate engineering drawing and quotation for your kitchen project, please clarify the following parameters:
- Consultant CAD floor layout or dimensioned hand sketch showing overall length, depth, and wall clearances.
- Column notch dimensions (width, depth, and corner radius of structural building pillars).
- Integrated fixtures: prep sink bowl size and location (left/right/center), faucet hole center spacing (4" or 8"), scrap chute diameter.
- Material grade (SUS 304 standard vs SUS 316 marine/acid) and gauge (12 Ga / 14 Ga / 16 Ga).
- Delivery packaging: fully-welded unibody assembly vs knock-down modular sections to fit freight elevators and narrow doors.
