Direct Answer / Key Takeaway: Compare the offered dishwasher drain with the surveyed site connection. Identify elevation, route and responsibility before approving installation.
“Drain available” is an incomplete site-survey note. Before ordering a commercial dishwasher, establish which drain arrangement is offered and whether the actual site connection has been reviewed against that model's installation information.
A drain pump and gravity discharge are different configurations. Their presence should be confirmed in the supplier's written scope rather than inferred from an external photograph, a similar model or an accessory list from another quotation.
Survey the receiving point
Record the connection location, relevant elevations, proposed route and access. Use a common reference when equipment and building drawings are compared. Photographs are useful, but include a dimensioned sketch so an apparent height difference can be assessed by the responsible installation team.
Identify any cabinet, floor feature or adjacent appliance that affects the route. A connection visible behind a machine may still be difficult to access or incompatible with the proposed installation detail.
Ask the supplier a configuration question

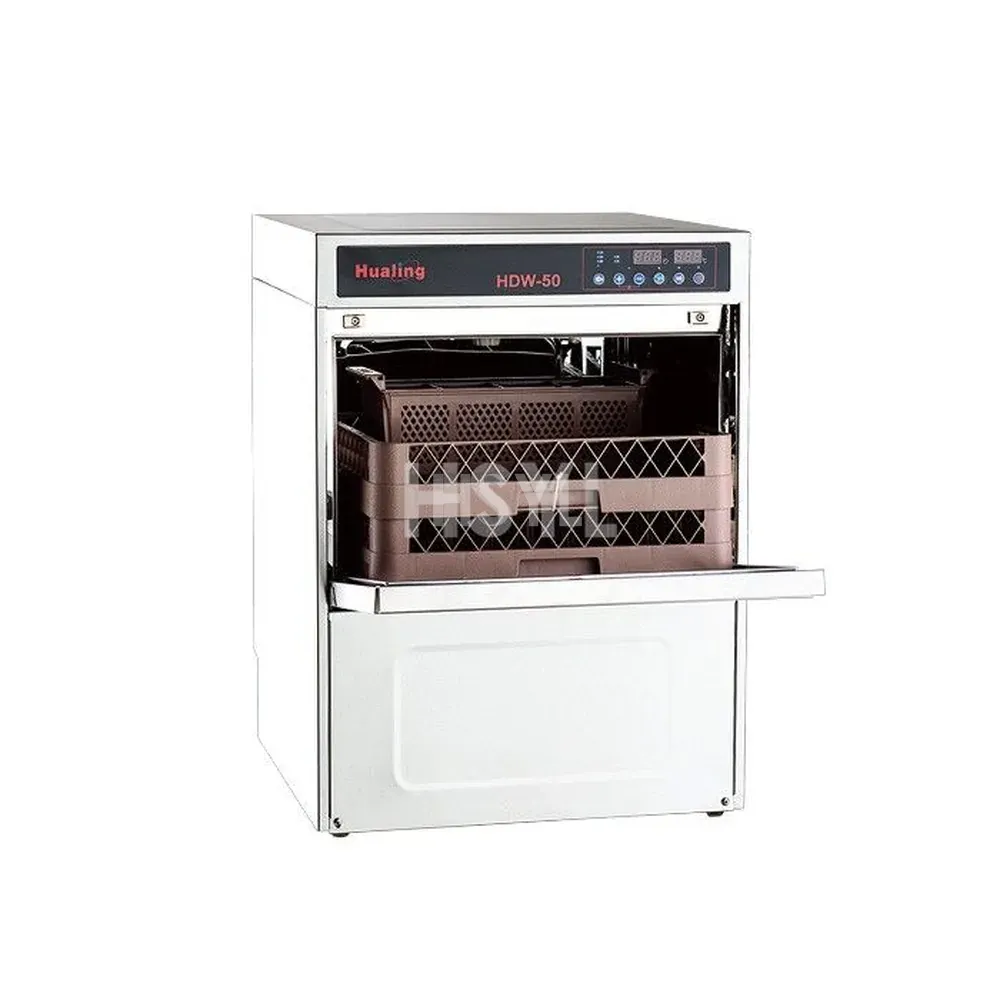

For the proposed CK-HDW-50 commercial dishwasher, ask which drainage version is quoted, what controlled installation document applies and which components are included. Obtain the corresponding requirements before treating the site interface as resolved.
Do not transplant a pump's headline lift figure or another machine's hose arrangement into the design. The qualified installer needs the complete applicable conditions and the actual site information, including any local requirements for the receiving connection.
Assign each open interface
- Supplier: identify the supplied drain configuration and applicable documentation.
- Site designer or installer: review the connection and route against the equipment requirements.
- Purchasing: reconcile included parts and any additional work.
- Commissioning team: define how the installed arrangement will be checked and recorded.
Keep an unresolved elevation or receiving-point question visible on the interface list. A general statement that a plumber will connect the machine does not close a configuration discrepancy.
Release the identified arrangement
Save the approved drawing, quoted version and installation-document revision together. At handover, record the actual arrangement and agreed functional checks; do not call the interface accepted because the cabinet physically fits its recess.
If the machine or site connection changes, review the affected drain information again. Use the technical documentation request for missing model-specific material rather than guessing a universal connection rule.
Coordinate the drain review with the separate dishwasher water-quality and treatment review. For an HDW50FCZ undercounter dishwasher enquiry, confirm the quoted drain-pump configuration and its installation document rather than applying another machine’s allowable route.
