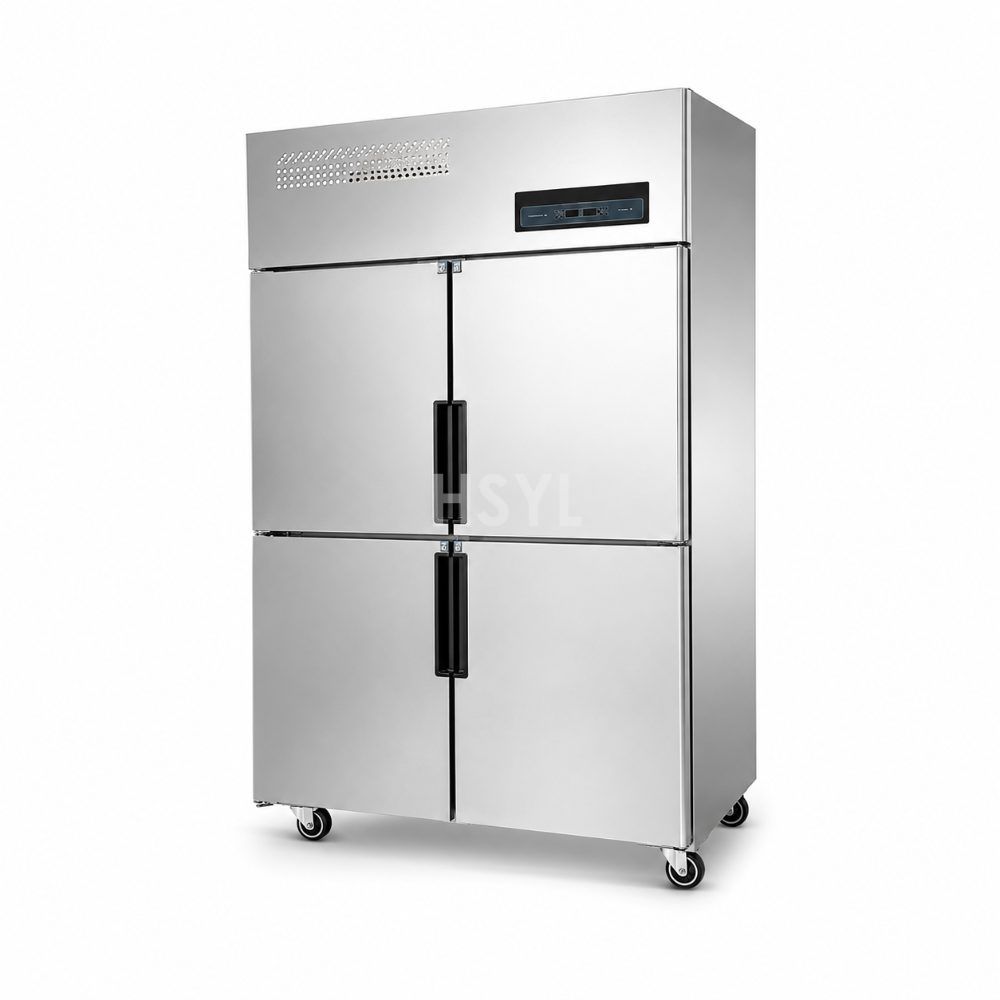

E Series Upright Refrigerator Range

Plan restaurant cold storage with an E Series upright refrigerator. Compare door arrangements and the complete cabinet footprint against your stock and access needs.

Commercial dutyFactory configurationExport documentation

Plan restaurant cold storage with an E Series upright refrigerator. Compare door arrangements and the complete cabinet footprint against your stock and access needs.

Select doors around the stock

List the largest containers and how frequently each ingredient is retrieved. Compare side-by-side doors and vertically divided compartments against shelf access and the kitchen aisle.

Model Specifications

Use the listed figures to compare configurations. Request the current specification and installation drawing for the exact unit quoted; a blank field requires confirmation.

Cooling Method	Model	Configuration	Capacity	Dimensions	Net Weight	Temperature	Refrigerant	Power	Rated Voltage	Current
Direct cooling	EDTR24-1	Single door	500 L	610 × 760 × 1950 mm	72 kg	2–8 °C	R290	215 W	220 V, 50 Hz	2.6 A
Direct cooling	EDTR48-2	Double doors, left/right	910 L	1220 × 760 × 1950 mm	123 kg	2–8 °C	R290	530 W	220 V, 50 Hz	2.6 A
Direct cooling	EDTR24-2	Double doors, top/bottom	500 L	610 × 760 × 1950 mm	72 kg	2–8 °C	R290	215 W	220 V, 50 Hz	2.6 A
Direct cooling	EDTR72-3	Three doors	1370 L	—	175 kg	2–8 °C	R290	400 W	220 V, 50 Hz	2.6 A
Direct cooling	EDTR48-4	Four doors	910 L	1220 × 760 × 1950 mm	118 kg	2–8 °C	R290	500 W	220 V, 50 Hz	2.6 A
Direct cooling	EDTR72-6	Six doors	1370 L	1820 × 760 × 1950 mm	153 kg	2–8 °C	R290	530 W	220 V, 50 Hz	2.6 A
Air cooling	ECTR24-1	Single door	425 L	610 × 760 × 1950 mm	73 kg	2–8 °C	R290	310 W	220 V, 50 Hz	2.6 A
Air cooling	ECTR48-2	Double doors, left/right	945 L	1220 × 760 × 1950 mm	125 kg	2–8 °C	R290	350 W	220 V, 50 Hz	2.6 A
Air cooling	ECTR24-2	Double doors, top/bottom	425 L	610 × 760 × 1950 mm	73 kg	2–8 °C	R290	310 W	220 V, 50 Hz	2.6 A
Air cooling	ECTR72-3	Three doors	—	1820 × 760 × 1950 mm	178 kg	2–8 °C	R290	310 W	220 V, 50 Hz	2.6 A
Air cooling	ECTR48-4	Four doors	945 L	1220 × 760 × 1950 mm	125 kg	2–8 °C	R290	350 W	220 V, 50 Hz	2.6 A
Air cooling	ECTR72-6	Six doors	1455 L	1820 × 760 × 1950 mm	185 kg	2–8 °C	R290	700 W	220 V, 50 Hz	2.6 A

Check installation conditions

Provide the available space, doorway dimensions and ambient conditions. Confirm the offered cabinet capacity, shelf arrangement and ventilation requirements. Missing specification fields should be resolved in the quotation before installation is planned.

Compare the related range for your layout:

E Series Workbench Refrigerators & Freezers.

Request a Model Quotation

Send the model or configuration you are considering, your application, required quantity, site layout and destination. Include the operating requirements described above so HSYL can return a quotation for the equipment you need.
