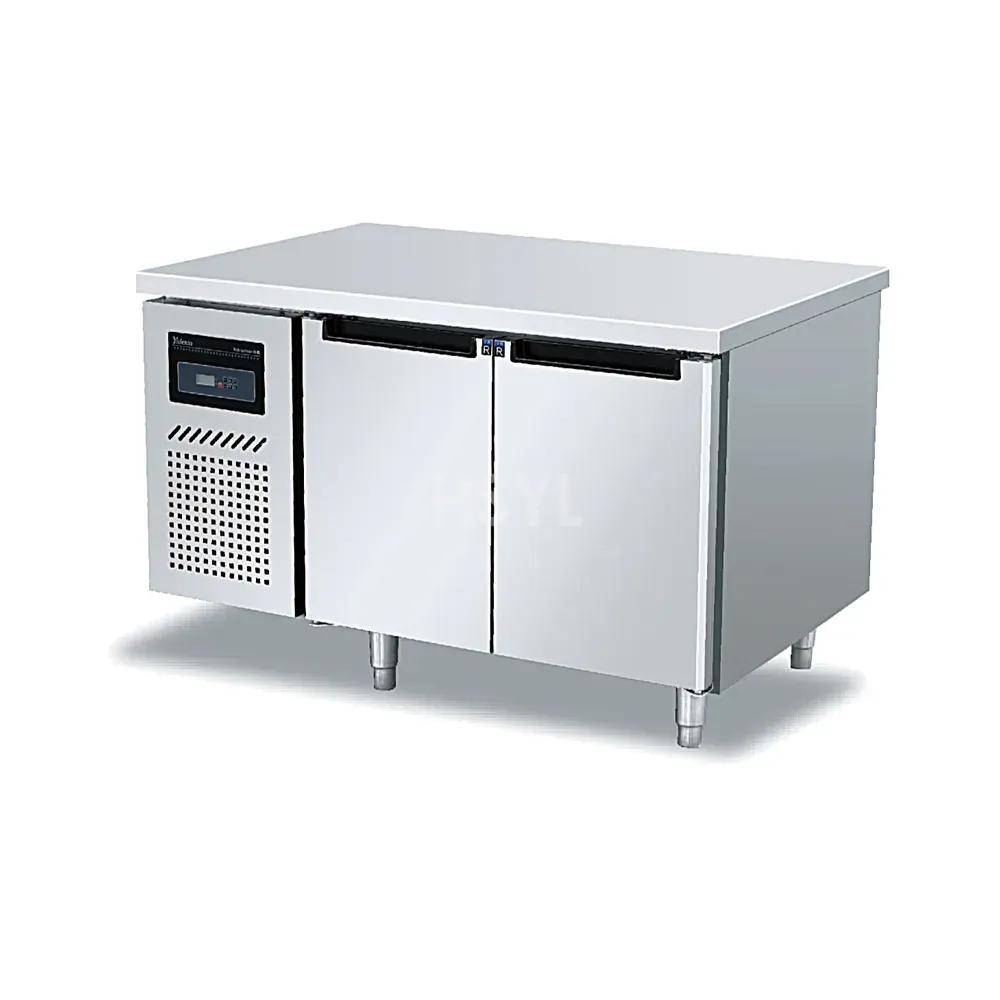

Direct-Cooling Workbench Refrigerators-QDUR and XSDUR
Compare QDUR and XSDUR direct-cooling workbench refrigerators for chilled storage within your preparation area. Select the cabinet depth as well as its overall length.
Length alone does not identify the cabinet
Use the complete model reference when comparing capacity and dimensions. Two cabinets with the same length can have different depths and storage volumes. Include the usable space behind and in front of the unit in your layout.
Model Specifications
Use the listed figures to compare configurations. Request the current specification and installation drawing for the exact unit quoted; a blank field requires confirmation.
| Model | Configuration | Capacity | Dimensions | Net Weight | Temperature | Refrigerant | Power | Rated Voltage | Current |
|---|---|---|---|---|---|---|---|---|---|
| QDUR18-2 800 | 1.8 m | 480 L | 1800 × 800 × 800 mm | 64 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR18-2 700 | 1.8 m | 440 L | 1800 × 700 × 800 mm | 62 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR18-2 600 | 1.8 m | 305 L | 1800 × 600 × 800 mm | 58 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR15-2 800 | 1.5 m | 380 L | 1500 × 800 × 800 mm | 58 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR15-2 700 | 1.5 m | 300 L | 1500 × 700 × 800 mm | 54 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR15-2 600 | 1.5 m | 245 L | 1500 × 600 × 800 mm | — | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR12-2 800 | 1.2 m | 255 L | 1200 × 800 × 800 mm | 50 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR12-2 700 | 1.2 m | 215 L | 1200 × 700 × 800 mm | 47 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| QDUR12-2 600 | 1.2 m | 175 L | 1200 × 600 × 800 mm | 43 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR18-2 800 | 1.8 m | 480 L | 1800 × 800 × 800 mm | 64 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR18-2 700 | 1.8 m | 440 L | 1800 × 700 × 800 mm | 62 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR18-2 600 | 1.8 m | 305 L | 1800 × 600 × 800 mm | 58 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR15-2 800 | 1.5 m | 380 L | 1500 × 800 × 800 mm | 58 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR15-2 700 | 1.5 m | 300 L | 1500 × 700 × 800 mm | 54 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR15-2 600 | 1.5 m | 245 L | 1500 × 600 × 800 mm | — | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR12-2 800 | 1.2 m | 255 L | 1200 × 800 × 800 mm | 50 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR12-2 700 | 1.2 m | 215 L | 1200 × 700 × 800 mm | 47 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
| XSDUR12-2 600 | 1.2 m | 175 L | 1200 × 600 × 800 mm | 43 kg | 2–8 °C | R290 | 165 W | 220 V, 50 Hz | 1.5 A |
Plan chilled storage around access
Describe the ingredients, container sizes and frequency of door opening. Request the temperature and ambient conditions for the quoted unit, together with defrost, drainage and ventilation instructions.
Compare the related range for your layout:
Q-WBC Direct-Cooling Workbench Refrigerator.
Request a Model Quotation
Send the model or configuration you are considering, your application, required quantity, site layout and destination. Include the operating requirements described above so HSYL can return a quotation for the equipment you need.
