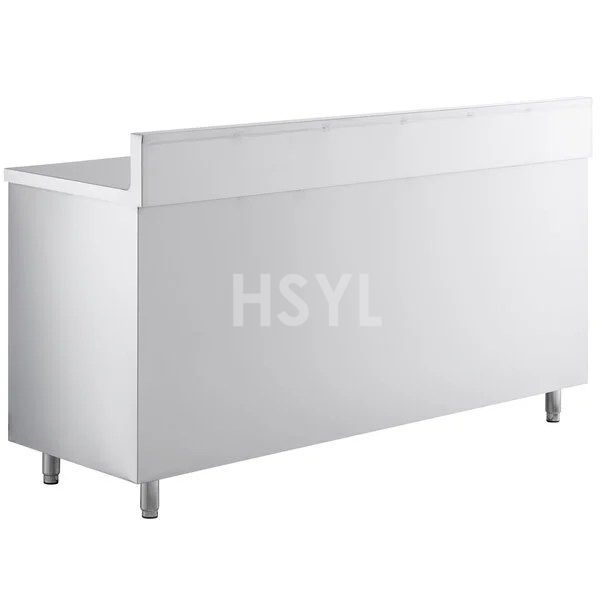

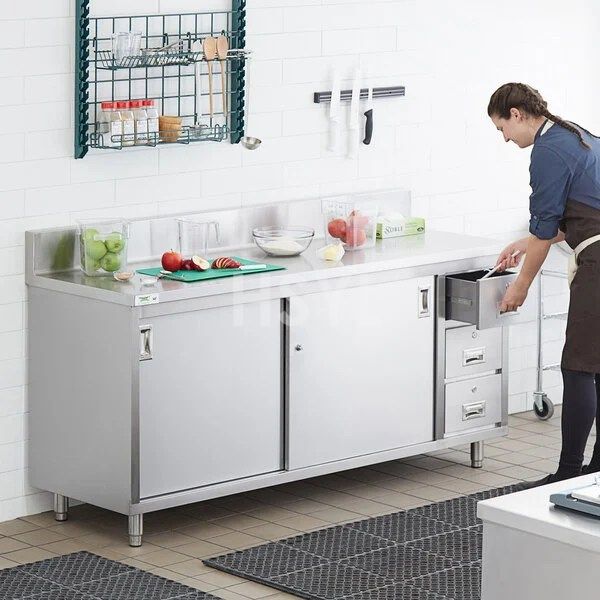

Stainless Steel Work Table with Drawers
HSYL stainless steel work tables with drawers provide an organized, ergonomic preparation workstation for commercial kitchen chefs, bakeries, and butcher shops. Fabricated from certified food-grade SUS 304 stainless steel, each table integrates modular 1, 2, or 3-tier drawer assemblies equipped with heavy-duty full-extension ball-bearing slides and removable deep-drawn stainless steel drawer pans, ensuring knives, thermometers, spatulas, and scales remain at your fingertips while meeting strict food safety inspection standards.
Quick Selection Summary
| Core Material | Certified food-contact SUS 304 stainless steel frame, tabletop, and drawer housings |
|---|---|
| Top Thickness | 14 Gauge (2.0 mm) butcher line / 16 Gauge (1.5 mm) commercial prep standard |
| Drawer Slides | Heavy-duty 3-section full-extension stainless steel ball-bearing slides (100 lbs / 45 kg rating per drawer) |
| Drawer Pan Spec | One-piece deep-drawn SUS 304 pan with 20 mm coved sanitary corners; fully removable for warewashing |
| Standard Drawer Sizes | 20" x 20" x 5" (508 x 508 x 127 mm) or custom sized for full-size steam table pans (GN 1/1) |
| Standard Lengths | 36", 48", 60", 72", 84", 96" (900 mm to 2400 mm) or custom lengths |
| Standard Depths | 24" (600 mm), 30" (750 mm), 36" (900 mm) |
| Working Height | Standard 34"–36" (860–915 mm); ±1.5" adjustable stainless leveling bullet feet |
| Base Options | Open tubular cross-bracing, solid adjustable undershelf, or combination cabinet |
This equipment is designed to operate seamlessly alongside our commercial-grade Commercial Kitchen Stainless Steel Tables for continuous line processing.
Engineering Construction & Mechanism Evidence
HSYL stainless steel work table with drawers units are constructed with commercial-grade fabrication standards designed for longevity, hygiene, and operator safety:
- Full-Extension Stainless Ball-Bearing Slides (100 lbs Dynamic Rating): Drawers glide on industrial-grade 3-stage full-extension slides fabricated from high-temper stainless steel. The full-extension mechanism allows chefs to access 100% of the drawer interior without knuckle scraping against the table frame, even when loaded with heavy cast iron ladles or butcher cleavers.
- Removable One-Piece Stamped Stainless Pan Inserts: Unlike welded drawer boxes with raw interior crevices that trap flour dust and meat juices, HSYL drawer pans are stamped from a single sheet of SUS 304 with continuous 20 mm coved radii. The pan lifts out of the drawer frame in one second and can be run directly through a commercial conveyor dish machine.
- Recessed Full-Width Sanitary Pull Handles: Drawer faces incorporate a flush, full-width recessed pull hemmed into the stainless front plate. There are no protruding handles to catch chef aprons or tear towel loops as staff move rapidly down the line.
- Reinforced Table Understructure: The drawer housing is anchored into dedicated structural transverse channels welded to the table underside. Pulling open a heavily loaded drawer will not torque or rack the table frame.
Drawer Configuration & Placement Selection Matrix
Use the matrix below to identify the optimal configuration for your operational demands:
| Drawer Configuration | Drawer Dimensions (W x D x H) | Recommended Station | Key Storage Application |
|---|---|---|---|
| Single Tier Drawer | 20" x 20" x 5" | Compact prep tables (36" – 48") | Thermometers, kitchen timers, paring knives, parchment paper. |
| Double Tier Stack (2 Drawers) | 20" x 20" x 5" (per drawer) | Sauté line & pizza prep (48" – 72") | Top: hand utensils, garnishing tools. Bottom: rolling pins, scales. |
| Triple Tier Stack (3 Drawers) | 20" x 20" x 5" (per drawer) | Main chef station (60" – 96") | Comprehensive tool separation: knives, measuring tools, packaging rolls. |
| Dual Bank (2 x 2 Drawers) | 20" x 20" x 5" (x 4 drawers) | High-volume banquet lines (84" – 96") | Two chefs working side-by-side with independent drawer sets. |
Operational Applications & Site Limitations
Recommended Environments
- Pastry & Bakery Chef Stations: Storing dough cutters, silicone molds, piping tips, and precision scales away from flour dusting.
- Gourmet Plating Lines: Holding plating tweezers, squeeze bottles, and specialty knives directly below the plating surface.
- Butchery Prep Stations: Organized storage for boning knives, sharpening steels, and safety cut-resistant gloves.
Site Limitations & Application Exclusions (Not Suitable For)
- Direct Hose Washdown of Drawer Slides: While drawer pans are 100% waterproof and dishwasher-safe, spraying high-pressure water jets directly into the ball-bearing slides can strip internal food-grade lubricants.
- Heavy Liquid Submersion: Drawers are designed for dry tool and supply storage, not as liquid holding troughs or ice pans.
Sanitation, Food Safety & Maintenance Guidelines
HSYL equipment is engineered to meet strict international health department inspections and HACCP hygiene standards:
- Pan Removal for Daily Dishwashing: Lift out the stainless pan and wash in your commercial 3-compartment sink or dish machine.
- Slide Maintenance: Inspect the ball-bearing tracks monthly; wipe away loose flour with a dry towel and lubricate with NSF-H1 registered food-grade silicone spray if necessary.
- Exterior Cleaning: Wipe the flush drawer front parallel to the brushed grain with mild soapy water.
B2B Project Quotation Checklist & Custom Options
To receive an accurate engineering drawing and quotation for your kitchen project, please clarify the following parameters:
- Overall table length, depth, and working height.
- Drawer quantity: single drawer, 2-tier stack, 3-tier stack, or dual banks.
- Placement location: mounted on left side, right side, or centered along the table span.
- Base preference: open undershelf alongside drawers (see our work table with undershelf) vs open tubular cross-bracing.
- Optional keyed cylinder locks for cutlery or scale security.
Complementary Stainless Steel Equipment
Optimize your kitchen workflow by combining HSYL work tables with companion stainless steel fabrication units:
- For open base storage, see our stainless steel work table with undershelf.
- For fully enclosed cabinets, explore our stainless steel enclosed base work table.
- Add vertical storage with a stainless steel table overshelf.
- Explore all commercial stainless steel kitchen equipment.
Request a Commercial Kitchen Quote
Contact HSYL's engineering team with your project schedule, CAD layout, or custom equipment specifications. We will review your clearances, verify load requirements, and provide a competitive manufacturer-direct proposal.
Commercial Stainless Steel Work Table Selection Matrix
Compare configurations across food-grade 304 stainless steel worktables engineered for commercial food service environments.
| Configuration | Key Functional Advantage | Standard Duty Spec | Recommended Application | Detailed Specifications |
|---|---|---|---|---|
| With Backsplash | Prevents rear wall spills and food residue traps | 1.2mm / 1.5mm SUS304, 100mm turned-up splash | Dishwashing washrooms & preparation lines | View Backsplash Work Table |
| With Heavy-Duty Casters | Mobile layout flexibility and rapid sanitation access | 5-inch polyurethane casters with lockable brakes | QSR prep stations & flexible banquet catering | View Mobile Casters Work Table |
| With Storage Drawers | Ergonomic tool & knife storage under table top | Ball-bearing stainless slide rails, modular 1-3 drawers | Pastry chef workbenches & precision food prep | View Drawer Work Table |
| Enclosed Base Cabinet | Pest-proof enclosed storage protecting ingredients | Reinforced sliding doors with bottom tracks | Strict hygiene zones & open-kitchen displays | View Enclosed Base Work Table |
| Custom Engineered | Tailored dimensions, sinks, scrap holes, and risers | Custom CAD layout, welded or knockdown assembly | Irregular central kitchens & institutional canteens | View Custom Stainless Table Specs |
