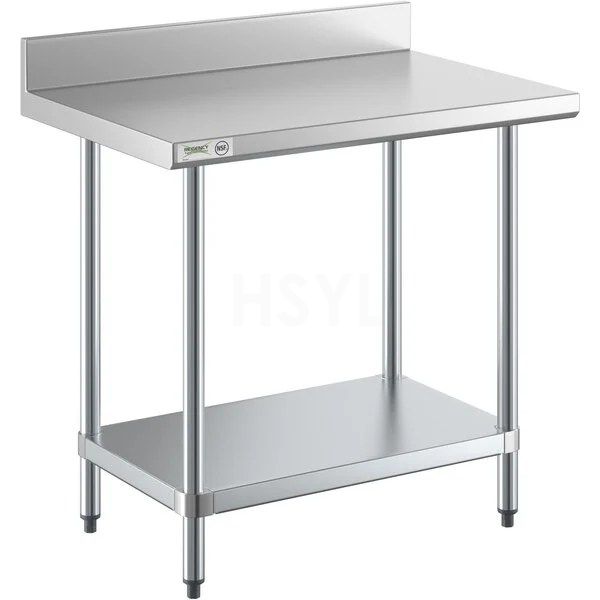

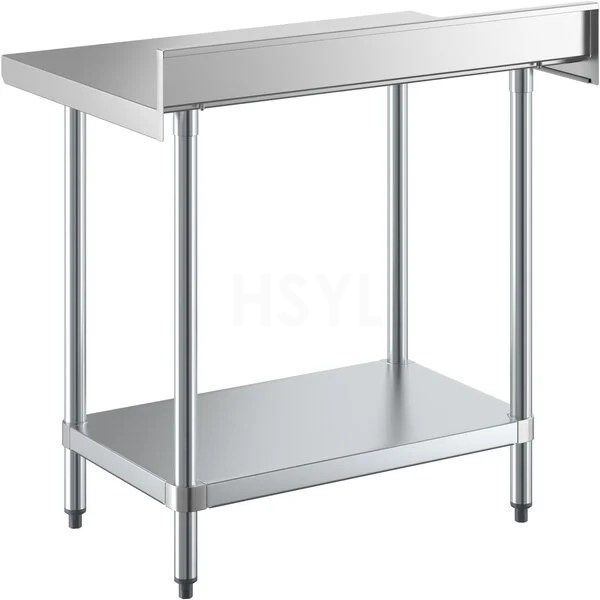

Stainless Steel Work Table with Undershelf
HSYL stainless steel work tables with undershelf are engineered to maximize vertical storage density in high-volume commercial kitchens, commissaries, and food preparation facilities. Combining a sanitary SUS 304 food-contact tabletop with an independently adjustable heavy-gauge bottom shelf, these tables keep bulk ingredients, pans, small appliances, and prep utensils readily accessible while keeping kitchen floors clear for routine sanitation.
Quick Selection Summary
| Core Material | Certified food-contact SUS 304 stainless steel (SUS 316 available for curing or marine zones) |
|---|---|
| Top Thickness | 14 Gauge (2.0 mm) butcher line / 16 Gauge (1.5 mm) commercial prep standard |
| Undershelf Spec | Heavy-gauge SUS 304 stainless steel with longitudinal hat channel reinforcement |
| Shelf Capacity | Up to 350 – 450 lbs (160 – 200 kg) evenly distributed load capacity |
| Shelf Adjustment | Full-height variable vertical adjustment via cast aluminum / stainless compression collars |
| Standard Lengths | 24", 36", 48", 60", 72", 84", 96" (600 mm to 2400 mm) or custom fabricated to layout |
| Standard Depths | 24" (600 mm), 30" (750 mm), 36" (900 mm) |
| Working Height | Standard 34"–36" (860–915 mm); ±1.5" adjustable stainless leveling bullet feet |
| Sanitary Criteria | Engineered to comply with NSF/ANSI Standard 2 commercial foodservice sanitation guidelines |
Engineering Construction & Mechanism Evidence
HSYL stainless steel work table with undershelf units are constructed with commercial-grade fabrication standards designed for longevity, hygiene, and operator safety:
- Full-Perimeter Die-Formed Compression Collar Clamps: Each corner of the undershelf features a precision-machined collar socket that clamps securely onto the 1-5/8" (41 mm) tubular legs using dual recessed stainless allen set screws. Unlike tack-welded stationary shelves that cannot be adjusted, HSYL compression collars allow kitchen managers to recalibrate shelf heights on-site to accommodate tall bulk ingredient bins, dough buckets, or countertop equipment.
- Undershelf Longitudinal Hat Channel Reinforcement: To prevent center sagging under the weight of heavy stockpots or flour sacks, the bottom of the stainless undershelf is reinforced with a full-length, heavy-gauge welded hat channel stiffener. This structural rib maintains shelf flatness and prevents oil-canning even when loaded to its maximum 450 lbs weight threshold.
- Hemmed Safety Edges & 1.5-Inch Marine Lip Options: All four outer edges of the undershelf feature double-hemmed bends that eliminate sharp raw steel edges, protecting kitchen stewards during high-speed supply retrieval. An optional 1.5-inch raised marine upturn lip is available to stop round spice tubs and pans from rolling off during busy kitchen rushes.
- Sound-Deadened Tabletop Assembly: The top preparation surface incorporates sound-dampened acoustic hat channels welded directly to the frame, absorbing impact shock and eliminating metallic echoing during high-volume vegetable dicing and cleaver prep.
Undershelf Load Capacity & Kitchen Storage Configuration Matrix
Use the matrix below to identify the optimal configuration for your operational demands:
| Table Size (L x D) | Undershelf Load Rating | Recommended Stored Equipment | Available Reinforcements |
|---|---|---|---|
| 24" x 24" to 36" x 30" | 350 lbs (160 kg) | Cutting boards, scale units, hotel pans, small appliance boxes. | Single center longitudinal stiffener, 4 corner collar locks. |
| 48" x 30" to 60" x 30" | 400 lbs (180 kg) | Stockpots, 5-gallon ingredient buckets, stand mixers, heavy food processors. | Dual longitudinal stiffeners, heavy-duty leg sockets. |
| 72" x 30" to 96" x 36" | 450 – 500 lbs (200 – 230 kg) | Bulk flour sacks, large sheet pan stacks, heavy tabletop fryers/griddles on top. | Heavy-duty 6-leg configuration with center cross-channel support. |
Operational Applications & Site Limitations
Recommended Environments
- Line Prep Stations: Continuous prep lines where sauté pans, cutting boards, and seasonings must be stored directly below the working plane.
- Bakery Ingredient Staging: Holding bulk flour bins and dough proofing containers off the floor in compliance with health code elevation rules.
- Central Commissaries: High-density storage stations supporting heavy food processing equipment.
Site Limitations & Application Exclusions (Not Suitable For)
- Roll-In Trash Can or Ingredient Bin Access: If mobile 32-gallon ingredient bins or roll-in waste barrels must roll completely beneath the table, a solid undershelf will block entry. In such layouts, specify an open-base table with rear and side tubular cross-bracing.
- High-Splatter Wall Stations without Splash Guards: When placed directly against drywall in wet prep zones, specify our work table with backsplash to protect the perimeter wall.
Sanitation, Food Safety & Maintenance Guidelines
HSYL equipment is engineered to meet strict international health department inspections and HACCP hygiene standards:
- Floor Clearance Compliance: Undershelves are installed at least 6 inches (152 mm) above the finished kitchen floor, satisfying health department guidelines for floor mop and broom access beneath equipment.
- Routine Sanitization: Wipe both the tabletop and undershelf with warm water and neutral detergent following the brushed grain direction.
- Scale & Corrosion Prevention: Do not store open containers of reactive acidic vinegar or bleach directly on raw steel shelves without plastic pan liners.
B2B Project Quotation Checklist & Custom Options
To receive an accurate engineering drawing and quotation for your kitchen project, please clarify the following parameters:
- Overall table length, depth, and desired working height.
- Top gauge (14 Ga heavy-duty vs 16 Ga standard) and undershelf gauge.
- Required vertical clearance between undershelf and tabletop (to fit specific containers or blenders).
- Optional 1.5-inch rear or 4-side marine containment lips on the shelf.
- Base mobility options: stationary bullet leveling feet vs locking industrial casters (see our work table with casters).
Complementary Stainless Steel Equipment
Optimize your kitchen workflow by combining HSYL work tables with companion stainless steel fabrication units:
- Explore our standard commercial stainless steel work table.
- Pair with a stainless steel table overshelf for dual-tier overhead storage.
- Equip adjacent hygiene zones with a commercial hand sink.
- View our complete range of commercial stainless steel kitchen equipment.
Request a Commercial Kitchen Quote
Contact HSYL's engineering team with your project schedule, CAD layout, or custom equipment specifications. We will review your clearances, verify load requirements, and provide a competitive manufacturer-direct proposal.
