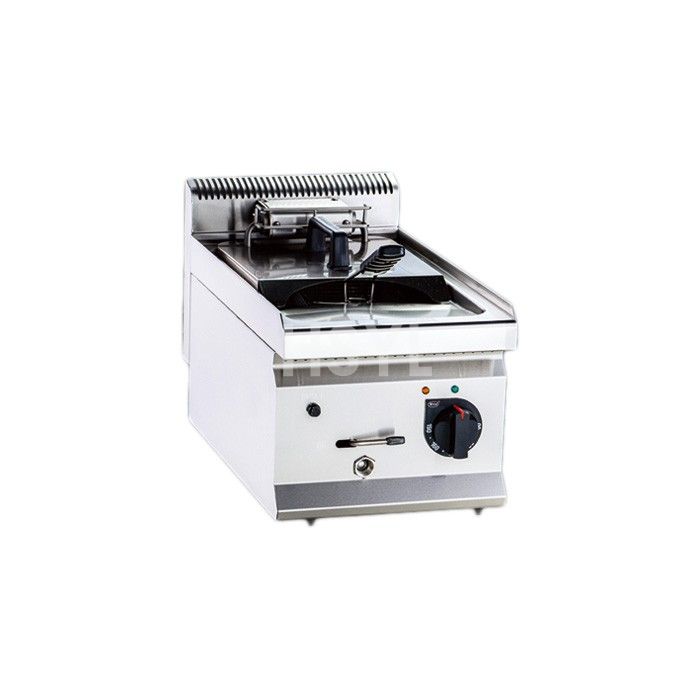

HF Countertop Electric Fryer Range
The HF countertop electric fryer range provides two model references for planning a commercial fry station: HF6035E and HF6060E. Start with the space available, the menu and the electrical supply, then confirm the exact configuration on your quotation.
For restaurant and canteen kitchens, the fryer must fit both the service demand and the work surface supporting it. Include space for loading baskets, handling finished food and reaching the equipment for cleaning.
HF6035E and HF6060E at a Glance
| Model | Body width | Nominal voltage |
|---|---|---|
| HF6035E | 350 mm | 380 V |
| HF6060E | 600 mm | 380 V |
Use these dimensions to begin comparing the two model references. Confirm the rated electrical input, phase, frequency and full body dimensions against the data sheet for the build being quoted. Body width alone does not establish the full installation space or required clearances.
Check the Electrical Supply Before Selecting a Model
Send the available voltage, frequency, phase and electrical capacity with your enquiry. Ask for the selected fryer’s electrical rating and connection requirements before the installer sizes the supply and protective devices.
If your site supply differs from the nominal voltage above, request written confirmation of a suitable configuration. A different voltage or plug arrangement should not be assumed from the model name.
Match the Fryer to Your Batch Pattern
Describe the food being fried, the typical batch quantity and the busiest service period. Include whether ingredients enter the fryer chilled or frozen and whether different foods need separate cooking areas.
Request the usable oil capacity, basket dimensions and performance information for the exact model. These details help you review loading and recovery against the menu; electrical input alone is not an output rating in portions per hour.
Plan the Countertop Installation
- Support: Check the work surface against the fryer’s operating weight and support points.
- Working space: Allow for the lid, baskets, controls and the route for moving food through the station.
- Extraction and clearance: Review the selected model’s installation instructions with the kitchen layout.
- Oil handling: Plan access for draining, oil transfer and cleaning according to the equipment instructions.
Review the commercial stainless steel work table page when specifying a supporting station.
Specify the Complete Tabletop Frying Station
A tabletop commercial fryer still needs a complete working station. Countertop, table top and bench top describe the installation format; they do not establish the oil capacity, basket load or electrical connection of the selected model.
When requesting an electric table top fryer, include a sketch of the whole station rather than the appliance outline alone. Mark the support surface, loading position, landing area for finished food and the access route used for oil handling and cleaning.
| Part of the station | Information to agree before ordering |
|---|---|
| Fryer | Exact model, supplied baskets, usable oil capacity and electrical rating. |
| Supporting bench | Approved operating load, foot positions and installation conditions for the offered fryer. |
| Working area | Space for food loading, basket handling and transferring finished portions. |
| Services and access | Connection requirements, extraction, clearances and access for the model's cleaning procedure. |
Ask the supplier to separate the fryer, supporting furniture and installation work in the quotation. Use the commercial fryer cleaning method and tool guide when preparing the cleaning arrangements, then follow the instructions supplied for the selected equipment.
Compare Fryer Types and Request a Quote
For other fryer arrangements, explore the commercial deep fryer range. If the project has a gas supply, compare the HF7040-3G gas deep fryer and the gas vs electric fryer guide.
Send your preferred model, menu, batch requirement, available power and installation space. Include quantity, destination and project timing, and request the exact model data sheet with the quotation.
